800-2500MHz rf Microwave Hybrid Combiner 2 in 1 Out 3dB Hybrid Coupler

FOB Price

Negotiable / Piece

5 Pieces(Min. Order)

Port ShangHai ShenZhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	HTMICRWAVE
Model Number	HT.HCP-0825-031121

Packaging Details

50pcs /Carton;
Shipping marks & Logo can be customized.

Product Description

HTMICROWAVE CO.,LTD

RELATED PRODUCT


Reactive Power Splitters	Directional Couplers	Hybrid Couplers	Hybrid Matrix Combiner	Attenuators

Terminations	Low PIM Attenuator& Terminations	Antennas	Cable Assembly	Connectors & Adapters

HT 3DB HYBRID COUPLER SERIES

3dB Hybrid coupler is used to sample the microwave signal which is prescribed in the regulations.Its most important function is the microwave signal of road and shunt can be input power equal to the out put port.Mainly used in repeater station or base station of power combiner and a branch,also can be used in indoor distribution system power combining and dividing.

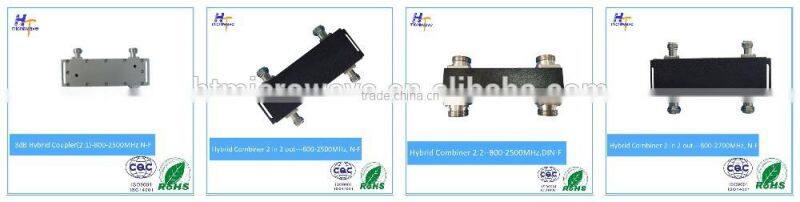

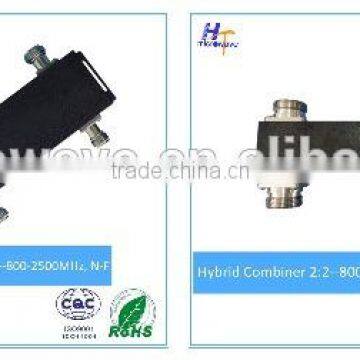

N Type Cavity 3dB Hybrid Coupler Series

800-2500MHz 2 in 1 out 3dB Hybrid Coupler

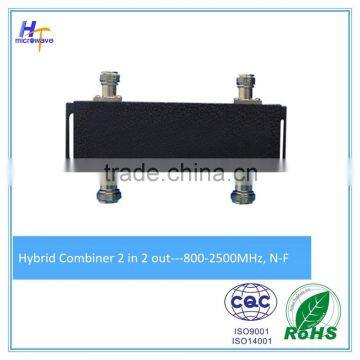

800-2500MHz 2 in 2 out 3dB Hybrid Coupler

698-2700MHz 2 in 2 out 3dB Hybrid Coupler

800-2700MHz 2 in 2 out 3dB Hybrid Coupler

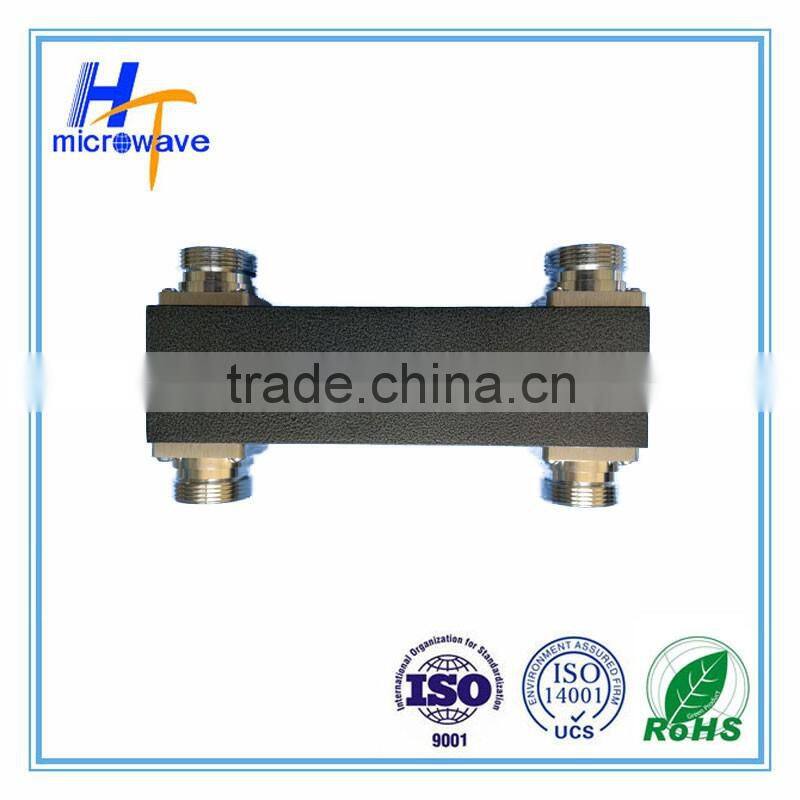

DIN Type 3dB Hybrid Coupler Series

800-2500MHz DIN Type 2 in 2 out 3dB Hybrid Coupler

698-2700MHz DIN Type 2 in 2 out 3dB Hybrid Coupler

800-2700MHz DIN Type 2 in 2 out 3dB Hybrid Coupler

FEATURES OF PRODUCT

3dB Hybrid Coupler, 800-2500MHz,698-2700MHz, 800-2700MHz, N and DIN Connector

HT 3DB HYBRID COUPLER SERIES

1. Multiple-Band Frequency
2. Low Specified PIM

3. High Isolation,Low VSWR and Loss

4. High Reliability,Moisture Sealed
5. Economic price
6. ISO9001,ISO14000,SGS RoHS Compliant

SPECIFICATION

HT N type 3dB Hybrid Coupler Series-800-2500/800-2700/698-2700MHz,2 in 2 out

Electrical Specifications:
Frequency Range	800-2500MHz	800-2700MHz	698-2700MHz
VSWR	≤1.2:1	≤1.25:1	≤1.25:1
Insertion Loss(dB)	≤3.5	≤3.5	≤3.5
In-band Ripple(dB)	≤0.5	≤0.5	≤0.6
Isolation(dB)	≥25	≥25	≥25
Average Power(W)	100/200/300	100/200/300	100/200/300
3rd Order IMD(dBc)	≤-120/-140/-150@2X43dBm	≤-120/-140/-150@2X43dBm	≤-120/-140/-150@2X43dBm
Impedance(Ω)	50	50	50
Connectors Type	N-Female	N-Female	N-Female
Operating Temp.(℃)	-20~+55	-20~+55	-20~+55
Application	For Indoor or Outdoor Use	For Indoor or Outdoor Use	For Indoor or Outdoor Use
Finish	Black Plated	Black Plated	Black Plated

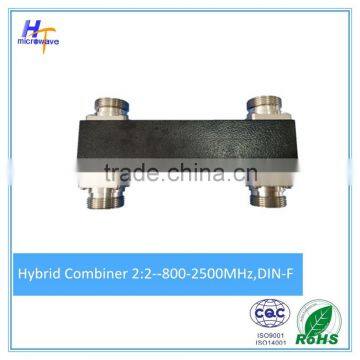

HT DIN type 3dB Hybrid Coupler Series-800-2500/800-2700/698-2700MHz,2 in 2 out

Electrical Specifications:
Frequency Range	800-2500MHz	800-2700MHz	698-2700MHz
VSWR	≤1.2:1	≤1.25:1	≤1.25:1
Insertion Loss(dB)	≤3.5	≤3.5	≤3.5
In-band Ripple(dB)	≤0.5	≤0.5	≤0.6
Isolation(dB)	≥25	≥25	≥25
Average Power(W)	200/300/500	200/300/500	200/300/500
3rd Order IMD(dBc)	≤-120/-140/-150@2X43dBm	≤-120/-140/-150@2X43dBm	≤-120/-140/-150@2X43dBm
Impedance(Ω)	50	50	50
Connectors Type	DIN-Female	DIN-Female	DIN-Female
Operating Temp.(℃)	-20~+55	-20~+55	-20~+55
Application	For Indoor or Outdoor Use	For Indoor or Outdoor Use	For Indoor or Outdoor Use
Finish	Black Plated	Black Plated	Black Plated

PACKAGE AND TRANSPORTATION

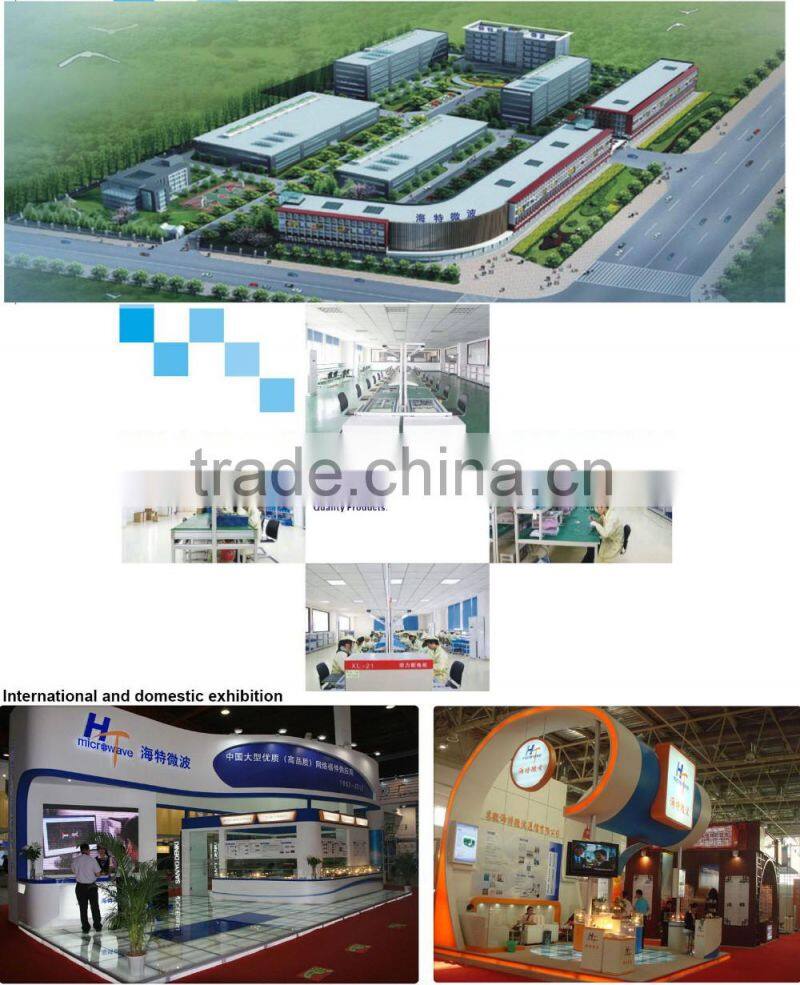

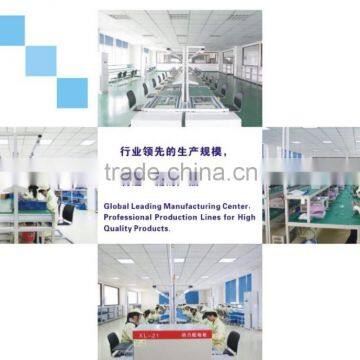

COMPANY FILE

HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 73000m² and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3 subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.

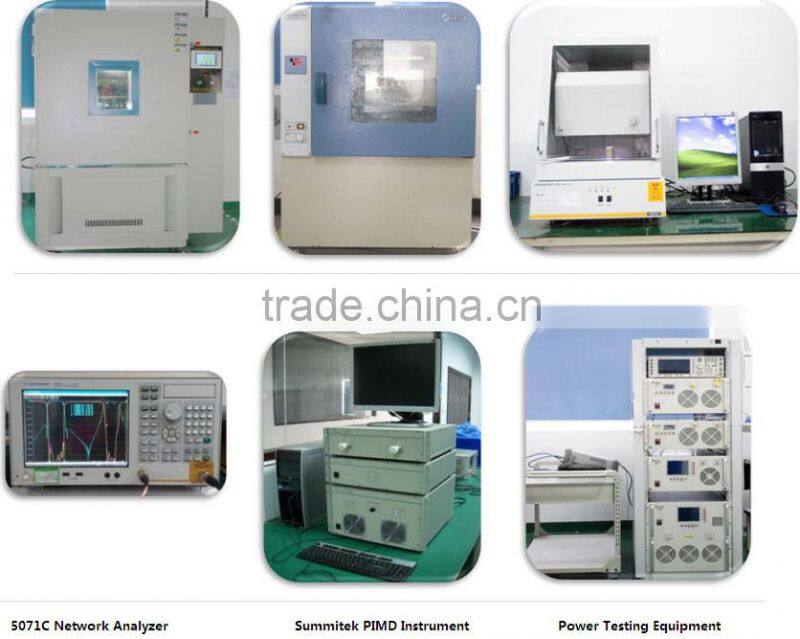

TESTING EQUIPMENT

OUR CUSTOMERS

FAQ

Q:Are you factory or trading company?

A:We are manufacturer.

Q:How long is your delivery time?

A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.

Q:Do you provide samples?Is it free?

A:Yes,we provide samples if you need.Free or not is depended on the product you need.

Q:What is your terms of payment?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below
