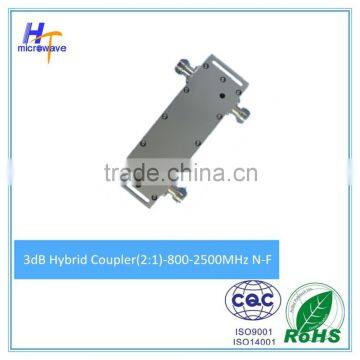

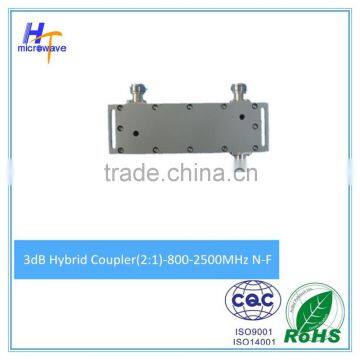

3dB hybrid coupler 2 in 1 out Hybrid Combiner 800 - 2500MHz ( 2:1 Combiner )

Name: 3dB hybrid coupler 2 in 1 out Hybrid Combiner 800 - 2500MHz ( 2:1 Combiner )
Brand: HTMICRWAVE
Price: Negotiable

FOB Price

Negotiable / Piece

5 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port ShangHai ShenZhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Anhui, China

Brand Name:

HTMICRWAVE

Model Number:

HT.HCP-0825-031121

Packaging Details

50pcs /Carton;
Shipping marks & Logo can be customized.

Product Description

HTMICROWAVE CO.,LTD

RELATED PRODUCT


Reactive Power Splitters	Directional Couplers	Hybrid Couplers	Hybrid Matrix Combiner	Attenuators

Terminations	Low PIM Attenuator& Terminations	Antennas	Cable Assembly	Connectors & Adapters

HT 3DB HYBRID COUPLER SERIES

3dB Hybrid coupler is used to sample the microwave signal which is prescribed in the regulations.Its most important function is the microwave signal of road and shunt can be input power equal to the out put port.Mainly used in repeater station or base station of power combiner and a branch,also can be used in indoor distribution system power combining and dividing.

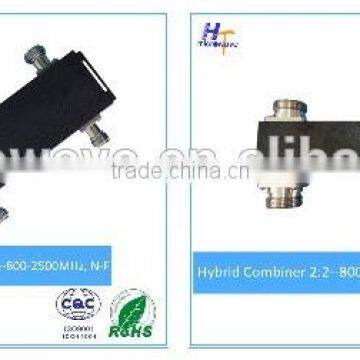

N Type Cavity 3dB Hybrid Coupler Series

800-2500MHz 2 in 1 out 3dB Hybrid Coupler

800-2500MHz 2 in 2 out 3dB Hybrid Coupler

698-2700MHz 2 in 2 out 3dB Hybrid Coupler

800-2700MHz 2 in 2 out 3dB Hybrid Coupler

DIN Type 3dB Hybrid Coupler Series

800-2500MHz DIN Type 2 in 2 out 3dB Hybrid Coupler

698-2700MHz DIN Type 2 in 2 out 3dB Hybrid Coupler

800-2700MHz DIN Type 2 in 2 out 3dB Hybrid Coupler

FEATURES OF PRODUCT

3dB Hybrid Coupler,800-2500/698-2700/800-2700MHz, N and DIN Connector

HT 3DB HYBRID COUPLER SERIES

1. Multiple-Band Frequency
2. Low Specified PIM

3. High Isolation,Low VSWR and Loss

4. High Reliability,Moisture Sealed
5. Economic price
6. ISO9001,ISO14000,SGS RoHS Compliant

SPECIFICATION

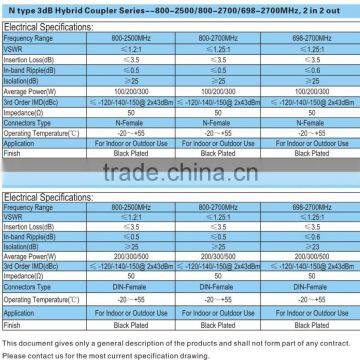

HT N type 3dB Hybrid Coupler Series-800-2500/800-2700/698-2700MHz,2 in 2 out

Electrical Specifications:
Frequency Range	800-2500MHz	800-2700MHz	698-2700MHz
VSWR	≤1.2:1	≤1.25:1	≤1.25:1
Insertion Loss(dB)	≤3.5	≤3.5	≤3.5
In-band Ripple(dB)	≤0.5	≤0.5	≤0.6
Isolation(dB)	≥25	≥25	≥25
Average Power(W)	100/200/300	100/200/300	100/200/300
3rd Order IMD(dBc)	≤-120/-140/-150@2X43dBm	≤-120/-140/-150@2X43dBm	≤-120/-140/-150@2X43dBm
Impedance(Ω)	50	50	50
Connectors Type	N-Female	N-Female	N-Female
Operating Temp.(℃)	-20~+55	-20~+55	-20~+55
Application	For Indoor or Outdoor Use	For Indoor or Outdoor Use	For Indoor or Outdoor Use
Finish	Black Plated	Black Plated	Black Plated

HT DIN type 3dB Hybrid Coupler Series-800-2500/800-2700/698-2700MHz,2 in 2 out

Electrical Specifications:
Frequency Range	800-2500MHz	800-2700MHz	698-2700MHz
VSWR	≤1.2:1	≤1.25:1	≤1.25:1
Insertion Loss(dB)	≤3.5	≤3.5	≤3.5
In-band Ripple(dB)	≤0.5	≤0.5	≤0.6
Isolation(dB)	≥25	≥25	≥25
Average Power(W)	200/300/500	200/300/500	200/300/500
3rd Order IMD(dBc)	≤-120/-140/-150@2X43dBm	≤-120/-140/-150@2X43dBm	≤-120/-140/-150@2X43dBm
Impedance(Ω)	50	50	50
Connectors Type	DIN-Female	DIN-Female	DIN-Female
Operating Temp.(℃)	-20~+55	-20~+55	-20~+55
Application	For Indoor or Outdoor Use	For Indoor or Outdoor Use	For Indoor or Outdoor Use
Finish	Black Plated	Black Plated	Black Plated

PACKAGE AND TRANSPORTATION

COMPANY FILE

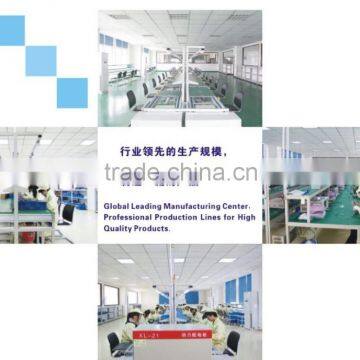

HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 73000m² and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3 subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.

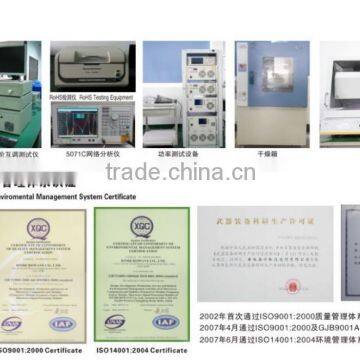

TESTING EQUIPMENT

OUR CUSTOMERS

FAQ

Q:Are you factory or trading company?

A:We are manufacturer.

Q:How long is your delivery time?

A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.

Q:Do you provide samples?Is it free?

A:Yes,we provide samples if you need.Free or not is depended on the product you need.

Q:What is your terms of payment?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below

Company Profile

HTMicrowave Co., Ltd.

HT Microwave Co., Ltd., established in 2005, is an ISO9001:2000 certified company. We are a leading microwave/RF component manufacturing and design company in China.

We focus on Microwave Technology Research, as well as RF Microwave Component and System Industry Development. Our products are widely used in communication network, satellite orientation, radar and military fields. We offer a highly diversified product line that serves top tier telecom / satellite companies.

Our products include 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitters, Directional Couplers, RF Attenuators, Dummy Load, Cable Assemblies, Connectors, Duplexers, Combiners and antenna. Customers' designs (OEM / ODM) are also welcome.

We have Two Microwave Industrial Parks, One R&D Center, Two Branch Factories,hundreds of advanced microwave measuring instruments and automation equipment for precision machining & specialized production and 100 sets of Numerical Control Lathes.

We are continuously seeking new ways to develop new products. With our enthusiasm, innovative technology and professional services, we will create sustainable development for our customers around the world and make more contribution to the communication field.
