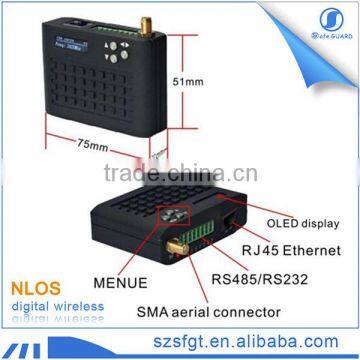

Moblie 10km AES data encrypted video link lightbridge
Video link lightbridge (SG-2400NB) for data communication equipment, with TDD-COFDM two way data communication
10km video link lightbridge is newly designed and with AES data encryption and excellent data safety.
10km lightbridge uses the advanced data processing technology and leading division COFDM modulation.
Lightbridge has encrypted network data transfer channel and is linked to DTE DCE and used in UAV and military.
Moblie 10km AES data encrypted video link lightbridge achieves real-time live broadcast, anti-multipath, high-speed mobile data, voice and image duplex module transmission.
2.4Ghz
military grade
TDD COFDM modulation
digital
LOS & NLOS data transmission
6.5 Mbps data streaming
adaptive dynamic stream allocation technology
two way data / signals transmission
| Item name | Moblie 10km AES data encrypted video link lightbridge |
| Model No. | SG-2400NB |
| Ethernet | 10/100BaseT,Auto-MDI/X,IEEE802.3 TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS |
| Power supply | DC7V~17V,6W consumption |
| Output frequency | 2405~2470MHz(adjustable) |
| Output RF power | 100 to 1000MHz |
| Bandwidth | 4MHz / 8MHZ |
| Interface | RJ-45ethernet RS232 RS485 RS422 data |
| Resolution | Support 720P and 1080@50/60hz 30 frames |
| Encryption | 128bit AES or 256 bits AES |
