RS485 RS232 RS422 TDD RJ45 IP ethernet COFDM transceiver for 330MHz to 530MHz data

RS485 RS232 RS422 TDD RJ45 IP ethernet COFDM transceiver for 330MHz to 530MHz data

Ethernet COFDM transceiver is TDD-COFDM broadband wireless mobile communication in emergency or private network.

RS485 ethernet transceiver, RS232 ethernet transceiver, RS422 ethernet tranceiver is with RJ45 etherneT port and better independent telecom operators.

TDD RJ45 IP ethernet COFDM transceiver is popular for its well confidentiality, and excellent security, better mobile erformance.

Mobile radio transceiver with ethernet data port realizes a fully transparent data encryption transmission in emergency security network.

RS485 RS232 RS422 ethernet COFDM transceiver with ethernet data port is build with TDD-COFDM modulation. Therefore, mobile radio transceiver achieves dual-way mopbile transmission at the same exact frequency.

Besides, data radio transceiver realizes real-time network IP transparent transmission and remote control and the dual-way audio and video surveillance network.

RS485 RS232 RS422 TDD RJ45 IP ethernet COFDM transceiver for 330MHz to 530MHz data is used in government, police station, hospital, military camp, frontier defense and coast defense as two-way wireless transmitter-receiver.

RS485 RS232 RS422 TDD RJ45 IP ethernet COFDM transceiver for 330MHz to 530MHz data

1. TDD time division multiplexing technology with COFDM modulation system solution;
2. LCD panel display for parameters adjustation;
3. signal strength indication showed on LCD screen;

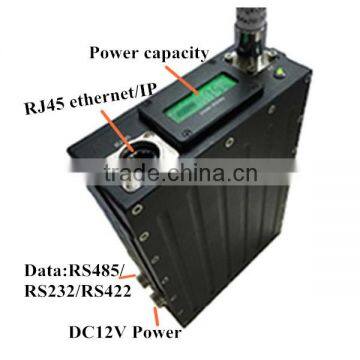

4. ethernet ports: 1 or 2 rj45 port data port:RS485/RS232/RS422;
5. AES128 encryption and customized key code.
6. Super low delay,within 50-80ms;
7. Transmitting rate up to 6.5Mbps;
8. Video and data occupy the same channel;
9. Available frequency:330-530MHz, have to choose 100MHz space among of the range; or 2.4GHz
10. on ground: 1km to 3km
11. on the sea: 40km
12. on helicopter 50km

RS485 RS232 RS422 TDD RJ45 IP ethernet COFDM transceiver for 330MHz to 530MHz data (Click the picture below for more parameters)
