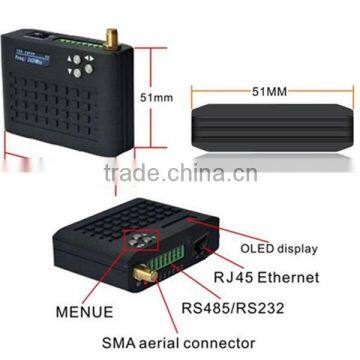

Non line of sight wireless drone 1km UAV transceiver
Wireless drone 1km UAV transceiver (SG-2400NB) for data communication equipment, with TDD-COFDM two way data communication
1km UAV transceiver is newly designed and with AES data encryption and excellent data safety.
UAV transceiver uses the advanced data processing technology and leading division COFDM modulation.
Drone transceiver has encrypted network data transfer channel and is linked to DTE DCE and used in UAV and military.
Non line of sight wireless drone 1km UAV transceiver achieves real-time live broadcast, anti-multipath, high-speed mobile data, voice and image duplex module transmission.
2.4Ghz or other
military grade
TDD COFDM modulation
digital
LOS & NLOS data transmission
6.5 Mbps data streaming
adaptive dynamic stream allocation technology
two way data / signals transmission
| Item name | Non line of sight wireless drone 1km UAV transceiver |
| Model No. | SG-2400NB |
| Ethernet | 10/100BaseT,Auto-MDI/X,IEEE802.3 TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS |
| Power supply | DC7V~17V,6W consumption |
| Output frequency | 2405~2470MHz(adjustable) |
| Output RF power | 100 to 1000MHz |
| Bandwidth | 4MHz / 8MHZ |

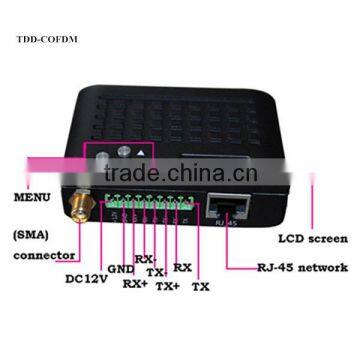

| Interface | RJ-45ethernet RS232 RS485 RS422 data |
| Resolution | Support 720P and 1080@50/60hz 30 frames |
| Encryption | 128bit AES or 256 bits AES |
