5.8G Outdoor OFDM Waterproof Wireless Network Bridge Transmitter

5.8G Outdoor OFDM Waterproof Wireless Network Bridge Transmitter thumbnail-1
5.8G Outdoor OFDM Waterproof Wireless Network Bridge Transmitter photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Safe Guard
Model Number:
SG-WB5800
Contact Supplier Request Quote Chat Now
Shenzhen Safe Guard Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Safe Guard
Model Number SG-WB5800

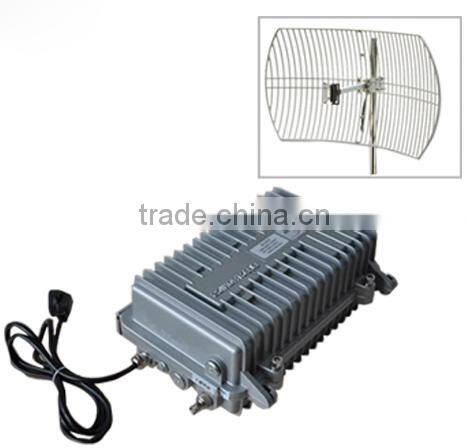

5.8G Outdoor OFDM waterproof wireless network bridge transmitter



                                               SG-WB5800





                               5.8G Outdoor OFDM waterproof wireless network bridge transmitter







Features:

1.  OFDM modulation
2.  RJ-45 ethernet port,support hd resolution;
3.  Transmit video&data signals simultaneously;
3.  Based on TCP/IP network synchronization.
4. Support point-to-point and point to multipoint mode;
5.  Special for outdoor fixed deployment;
6.  Support 2.4G or 5.8G frequency band



Detailed information:

1.  It is the most powerful and effective LOS wireless ip network products.
2.  High-quality video transmission at 30frame/s in MPEG-4.
3.  Support video, voice and data transmission and reception at mobile condition based on TCP/IP network synchronization.
4.  Effectively resolve the inherent problems in wireless networking products, like hidden node, QOS,transmission distance, safety and etc.
5.  Can be configured to 802.11a/b mode in order to be compatible with the existing wireless networks.
6.  Based on open standards, can provide long-term investment protection.
7.  Provide secure wireless connections of end to end AES encrypted.
8.  Be popular with its advantages of broad covering, high sensitivity, mobility, anti-jamming ability, wideoutput bandwidth, stability and reliability.
9.  Provide transparent connectivity to the integrated ball-camera, PTZ camera and the asynchronous
serial devices by Adaptive RS-232/422/485 serial port



Specifications:

 Standards Compliance  IEEE 802.11b/g ,IEEE 802.3,IEEE 802.3u,IEE 802.af
 SDRAM    8 M Byte
 Flash  2 M Byte
 Radio Frequency Type  DSSS / OFDM
 Modulation   IEEE 802.11a: OFDM with BPSK, QPSK, 16QAM, 64QAM
 Frequency range 5.15~5.25GHz(lower band)
5.25~5.35GHz(middle band)
5.725~5.825GHz(hi-band)
 Transmission Power   IEEE 802.11a: 20dBm
 Transmission Rate  IEEE802.11a: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 and 1080Mbps
 Access Point Interfaces  Auto MDI/MMDI-X Ethernet 10/100Base-TX: RJ-45
 Sensitivity   IEEE 802.11a: -70dBm @ 54Mbps,PER< 10%
 Antenna Type  External 30dBi Big Grid antenna
 Security Systems  64-bit/128-bit/152-bit/ WEP encryption and Wi-Fi Protected Access(WPA)and WPA2 encryption
 Wireless Setting mode Operation Mode-AP/Wireless Client/Repeater/Bridge(WDS)
super mode -11a/superA
 Software/Firmware  Site Survey
DHCP Client, dynamically assigned IP address
support SSID
support DFS and TPC
Support VLAN
Support QOS
Support MAC
Wireless access control by MAC address (deny or accept)
WPA Support (WPA personal and enterprise)
Web-based configuration via popular browser (MS IE, Netscape…)
Windows “Locator” program to help find IP in DHCP client mode
Firmware upgrade and configuration backup via Web
Reset to default by WebUI
Support SNMP v1/v2c
Support automatic restart function
 Operating Environment  Operating Temperature: -30 ~ +70°C
 Power supply  DC 12 Volt + 5%; 3.7A (Max.); AC adapter AC 100V ~ 240V
 Regulatory Approval   FCC Part 15 B (US); CE
 Network Management System OS Support  Windows 2000/ XP/ Vista Home BASIC
 Dimension  260*260*65mm

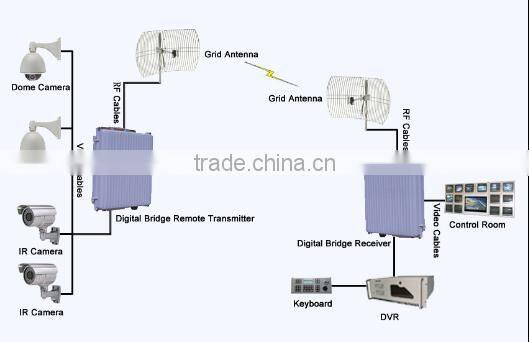

Application:



5.8G Outdoor OFDM waterproof wireless network bridge transmitter





Shipment



1. Items are only shipped after all payments are received by DHL, UPS, FEDEX etc. within one work day.



2. Free shipping to select countries, please check carefully the shipping & packing in detail.



3. For dispatching smoothly and safety, we have the final decision on the selection of shipping company.



4. Please do kindly notice that there maybe a little difference in transportation time by the reason as climate, accident or other issues, sorry for not responsible for any reason of delays.



 5.8G Outdoor OFDM waterproof wireless network bridge transmitter





 FAQ

1.Do you make custom order?

Yes,OEM and ODM Service is available for us.We can produce as customer’s designs.



2.What’s your MOQ?

MOQ for stock items is 1 sets,it including a transmitter,a receiver and antennas.



3.Is it possible to buy one sample?

Sure,but the sample charge and shipping cost should be paid by customers.Sample

will be sent out within three working days.



4.what’s the payment term?

T/T;Western Union



5.How long is the warranty?

One year free warranty, 3 months for spare parts. We only charge for replacement parts cost when exceed one year.



Replacement



Influence the second sale of products do not belong to the category of return within 30 days you get this product. Such as appearance injury, High-voltage fuse, Damp, Broken seals, soaking,and so on. Transportation costs of replacement, repairment etc. Paid by the buyer!!!





Our team is active and creative, we can meet maximum your requirements. We are welcome to all your inquiry and pleased to work with you!
