340MHz Military Wireless Remote Control/ NLOS Waterproof Digital Bridge

340MHz Military Wireless Remote Control/ NLOS Waterproof Digital Bridge photo-1
340MHz Military Wireless Remote Control/ NLOS Waterproof Digital Bridge photo-2

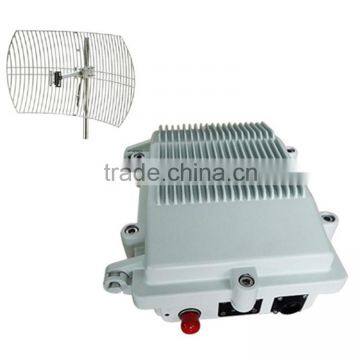

340MHz Military Wireless Remote Control/ NLOS Waterproof Digital Bridge photo-3

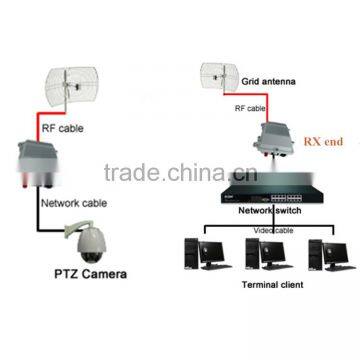

340MHz Military Wireless Remote Control/ NLOS Waterproof Digital Bridge photo-4

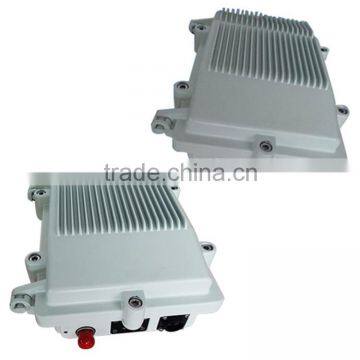

340MHz Military Wireless Remote Control/ NLOS Waterproof Digital Bridge photo-5

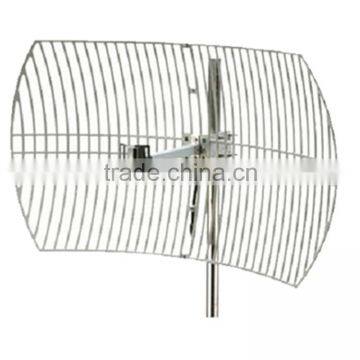

340MHz Military Wireless Remote Control/ NLOS Waterproof Digital Bridge photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Safe Guard
Model Number:
SG-WB340
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Safe Guard
Model Number SG-WB340
Product Description

340MHz Military Wireless Remote Control/ NLOS Waterproof Digital Bridge(SG-WB340)



340MHz Waterproof  Military Wireless Remote Control NLOS Digital Bridge (SG-WB340)is built with OFDM modulation adopts TDD duplex mode. Ican transmit video,voice and IP data streams real-time and synchronously based on TCP / IP network application traffic under high-speed mobile conditon.


SG-WB340 is a military-grade NLOS point to multipoint high bandwidth wireless digital bridge. it is windproof, waterproof, sunscreen, dustproof, shakeproof and thermal design.


340MHz Military Wireless Remote Control NLOS Digital Bridge  is the most powerful and effective NLOS wireless IP mobile communications network products with wide bandwidth output, high sensitivity, good mobility, interference and the superior capability against the fading.

340MHz Military Wireless Remote Control NLOS Digital Bridge (SG-WB340)is widely used in  the command, rescue, reconnaissance, field operations and other emergency communications to provide multipoint, freedom relay, long-distance, high-quality, high-speed, wireless real-time transmission of the ideal IP network platform.

Main Characteristics

1. Military-grade digtal bridge;

2. TDD duplex mode;

3. Excellent sensitility(-100dBm);

4. High RF output power (at a maximun of 25w);


5. Well safety performance;


6. Point to point & point to multi-point transmission


7.Remote control


8.Speed not affected by long distance

Features

■good diffraction ability;
■wide coverage
■ high transfer rate
■strong anti-interference & anti-fading ability
■ transparent protocol
■ confidentiality
■ maxi effective bandwidth :2M
■ proprietary data scrambling encryption(64/128/152 bits WEP, WPA, WPA2,802.1x);
■ GUI management &Telnet support;
■ easy to monitor & manage
■ support for configuration file import / export & software upgrades
■ Windproof, waterproof, sunscreen, dustproof, shakeproof, and thermal design

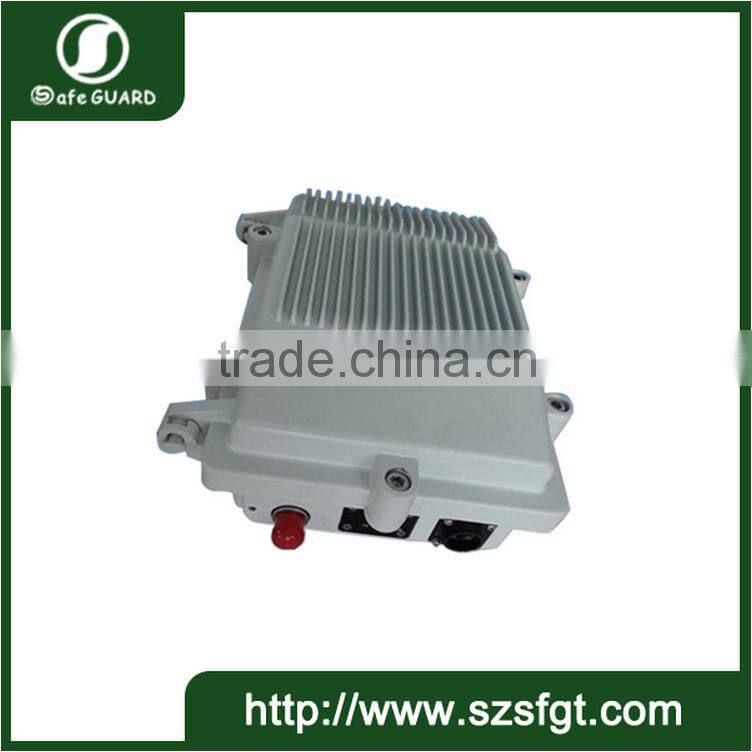

Detailed Images
Specifications
 RF Index
Frequency
340MHz
Max. RF Power
25W
Channel
30MHz
Distance
More than 60km NLOS with actual rate >2Mbps
Duplex Mode
TDD(Time Division Duplexing)
Modulation
QPSK
Sensitivity
-100dBm
Security
MAC Control
Yes
Data Encryption
64/128/152 bits WEP,WPA、WPA2,802.1x,AES-CCM & TKIP Encryption
Hardware
LAN/WAN
One 10/100 BaseT RJ45
Power Supply
DC 12V/4A
Environment & Physical Index
Work Temperature
-30~70℃
Storage Temperature
-50~80℃
Humidity
≤95%
Weight
2.0kg
Antenna
Interface
N, 50Ω
Weight
2.0kg
Our Service

Warranty: One year;3 months for spare parts. (Replacement parts will be charged after a year)


24-h technical guidance

Packing Details

2 *transceiver

2*antennas

1*manual

2*cables

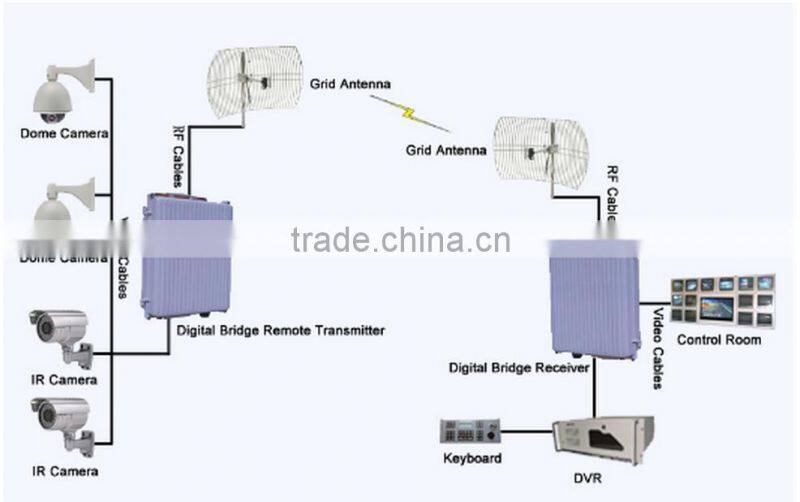

Application
For reference only
