CV4A-YQ-04R2G Low Price Switch Joystick

Name: CV4A-YQ-04R2G Low Price Switch Joystick
Brand: OMTER
SKU: 123739477
Availability: InStock

Yueqing Omter Electronic & Technology Co., Ltd.

US$ 12 - 15 MOQ: 1 Piece

Key Specifications

Brand Name:

OMTER

Model Number:

CV4A-YQ-04R2G

Compatible Platform:

PSP

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name OMTER

Model Number CV4A-YQ-04R2G

Compatible Platform PSP

Type Joystick

Place of Origin Zhejiang, China

Specifications

1. Brand: OMTER
2.CV4A-YQ-04R2G joystick
3.optional resistance value
4.Competivie price
5.High quality

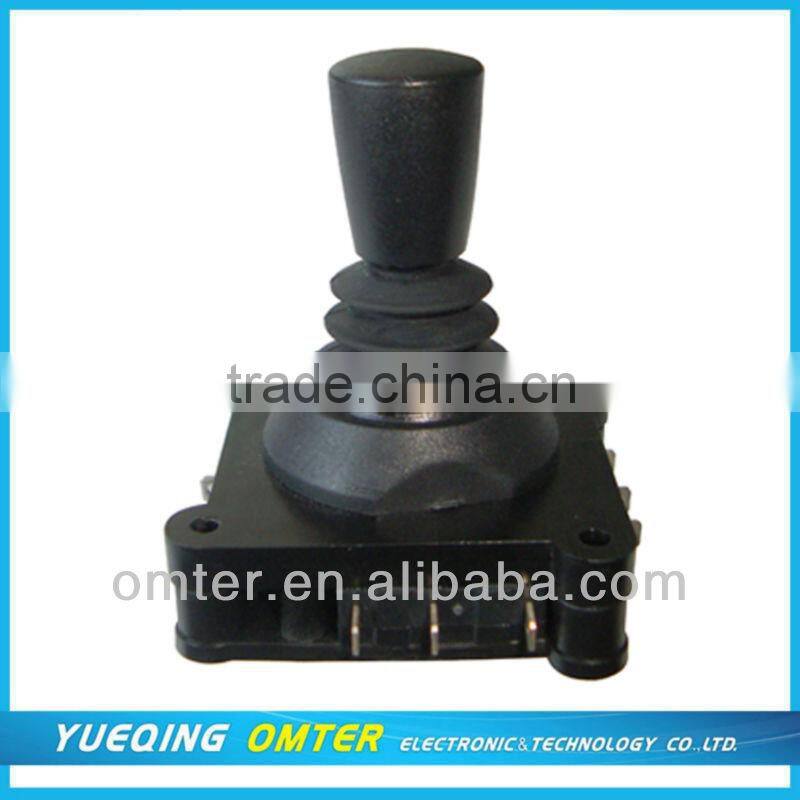

CV4A-YQ-04R2G low price switch joystick

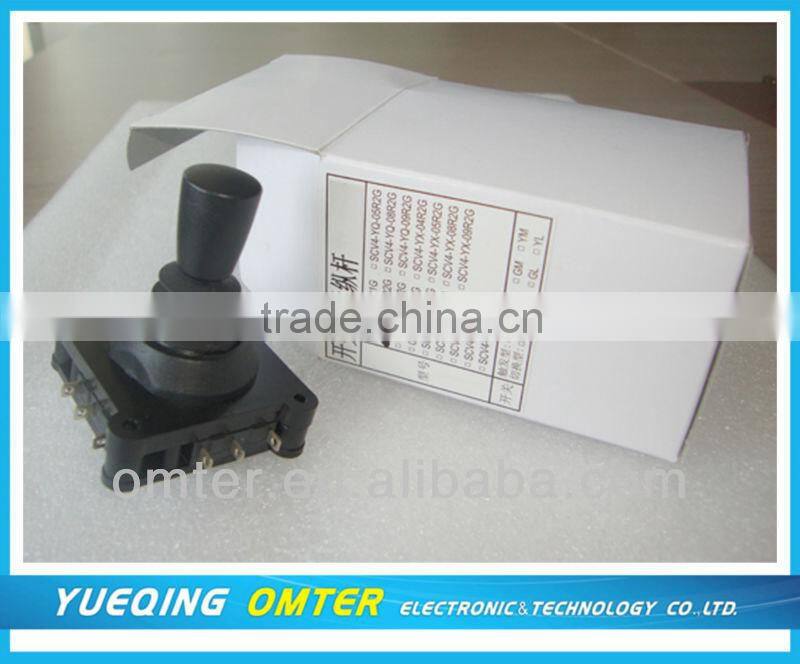

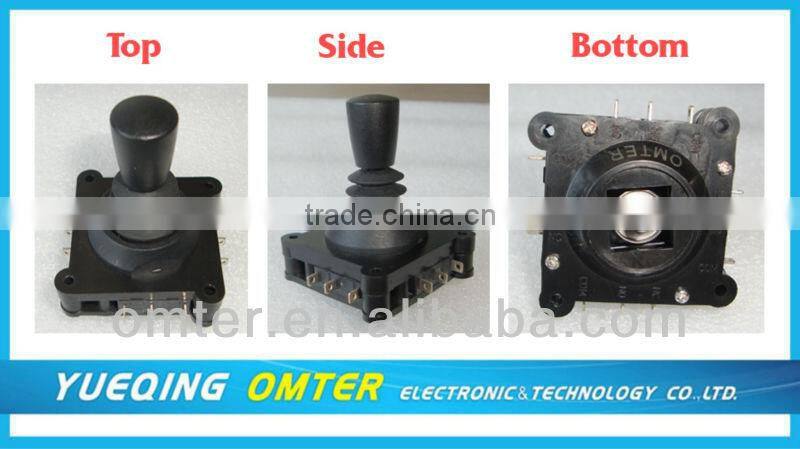

Detailed picture:

Name regulation:
S CV 4—Y Q- 0 4 R2 G — B M —R 0000
1 2 3 5 6 7 8 9 10 11 12 13
1.S: Special for the Mechanical specification
2.CV: Switch joystick with low price
3.4 is the rough size of the buttom, the unit is CM
4.X: 1-axis adjustment type Y: 2-axis adjustment type
5.X: just can be“+”direction on X and Y axis	Q:360 degree square operation (standard type) I: just can be “I” operation on Y axis
6.Potentiometer quantity	0……without the potentiometer
7.Switch quantity	2……2 Switches 4……4 Switches 5……5 Switches
8.Spring Return Installment	R1: 1-axis with spring return (X axis or Y axis) R2: 2-axis with spring return(X axis and Y axis)
9.Components	G: within the dust-proof rubber cover
10.Handle with button switch,the color can choose	B:Black Y:Yellow G:Green R:Red O:Orange U:Blue
11.The type of the button switch	M:triggering type L: converted type
12.The handle can be within the lamp and color can be choose	W:white Y:yellow R:red O:orange G:green U:blue
13.For clients’ special requirement.

Mechanical character:
Control range of the joystick	X. Y two axis: Starting from the central location approx ±12°
Operating pressure:	with spring return device
X.Y axis :	approx 1N ~1.2N (l00gf~120gf)
Operating temperature range:	-20°C~+65°C
Vibration:	10~55Hz 98m/S2
Impact:	294m/S2
Protection class:	IP65 (above the mounting panel)
Life expectancy:	approximately 200,000 times
Quality:	about 40g
Electrical function:
Handle button switch contact capacity:	50VDC/0. 1A
Micro Switch contact capacity:	250VAC/5A
Light emitting diode (LED) rating:	2VDC, 20mA
Optional special specifications:
Special mechanical structure; special handle; special rod length; special spring return force; special dust cover
Could choose handle button switch; could choose micro switch contact capacity(250VAC/10A); could choose signal level switch. If in bigger quantity, could provide specific OEM products
