Help CenterOM6600-SCO-MS22-BG-L-N IP 65 System Industrial Joystick for Mining Machinery
Related Products
Specifications
1. Brand: OMTER2.OM6600-SCO-MS22-BG-L-N IP 65 joystick
3.optional resistance value
4.Competivie price
5.High
OM6600-SCO-MS22-BG-L-N IP 65 system industrial joystick for Mining machinery

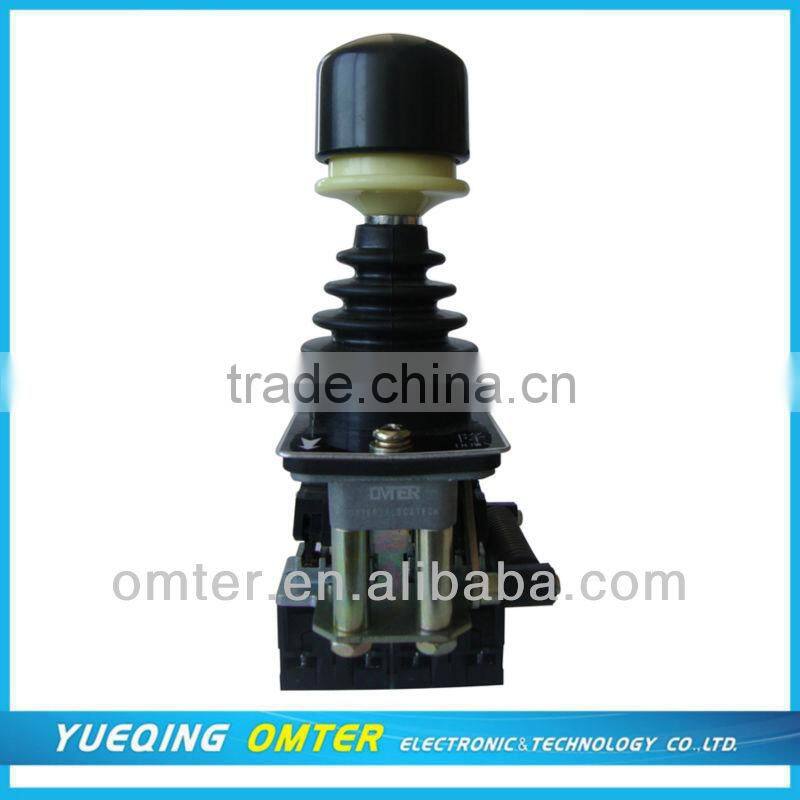

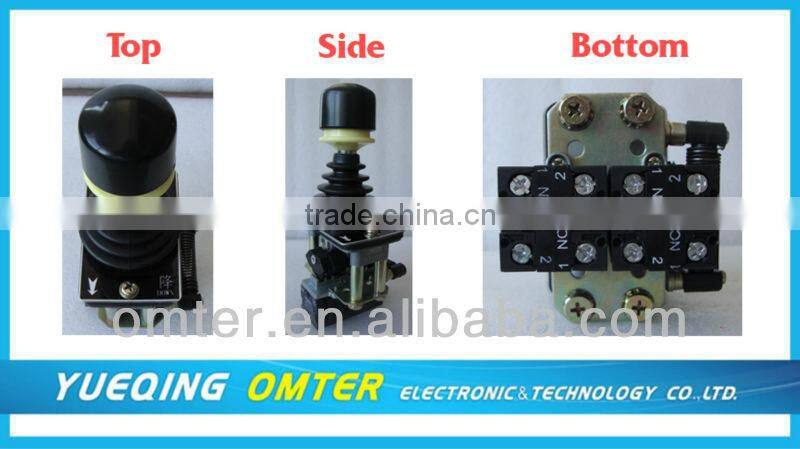

Detailed picture:
Product characteristic:
Equipped with modular circuit output, enabling customers to supporting a variety of control equipment, cost-effective.Designed personalized, simply operated
metal structure safe and reliable
designed by IP 65 system,great for protection dustproof and waterproof
Output characteristics: mechanical forms: quick installation , Manual with stalls, center-zero lock (down to unlock)
Electric output style : Each Six stalls switch output in front and behind.
Application scope:
This series products mainly Suit for Mining machinery, marine machinery, engineering machinery, etc
| Product Selection: | |
| OM6600 - OOO - OOO - OOO - OOO - OOO - OOO | |
| 1 2 3 4 5 6 7 | |
| Sub-item selection instructions: | |
| 1.Product series number | OM6600 series industrial handle, Spring return lock switch output, Mainly applies in Mining machinery, marine machinery, engineering machinery |
| 2.The operating mode | FCF= friction localization, the center position with feel FEF= friction localization, the beginning (or end point) with feel FCL= friction localization, the center position machinery locking FEL= friction localization, the beginning (or end point) the machinery locking SC0= spring return, returns to the center position SCL= spring return, returns to the center position, the center position machinery locking SE0= spring return, return to the beginning SEL= spring return, return to the beginning, the beginning (or end point) the mechanical locking |
| 3.Output signal |
P101= with 10KΩ center-tapped potentiometer 0~100% voltage output U11=DC12V input, - 10V~0V ~+10V voltage output U12=DC12V input, +10V ~0V ~+10V voltage output U21=DC24V input, - 10V~0V ~+10V voltage output I21= two-wire system 4mA ~12mA ~20mA electric current output |
| 4.Micro switch | MS00= without micro switch MS21= with 10A beginning position micro switch MS22= with 10A front and back position micro switch |
| 5.The handle top port | BG= The top palm of the hand operation HD=Φ36mm*H90mm, without button HDS=Φ36mm*H90mm, with a button KGNN= no safety switch, no rocker button KGDN= has the safety switch, no rocker button KGNR= no safety switch, has rocker button KGDR= has the safety switch, has rocker button |
| 6.Wire out-way wiring | L= electric wire output A= (AMP) connector |
| 7.Outer covering | N= without outer covering H= has outer covering |
Technical parameter:
| Mechanical parameter: | |
| Operate torque X and Y axis: | about 15N |
| Restoration Error Rate: | 0 |
| expected service life of rotary: | about 5,000,000 times |
| Storage Temperature: | -10°C to 80°C |
| Work Temperature: | -10°C to 80°C (no gel) |
| Protection level: | IP65 |
| output connection: | As base tag connection |
| Electrical parameter: | |
| Switch Work voltage: | AC 250V |
| witch Work current: | 10A |
| Linear tolerance: | ± 1% |
| Resolution: | infinite |
| Insulation Resistance: | 50 MΩ@ 500 VDC, 60 sec. |
| Temperature Coefficient Resistance: | ± 400 ppm/°C |
| X And Y Axis Electricity Corner: | ±32 degree |
| Wire length: | As required (switch output) |

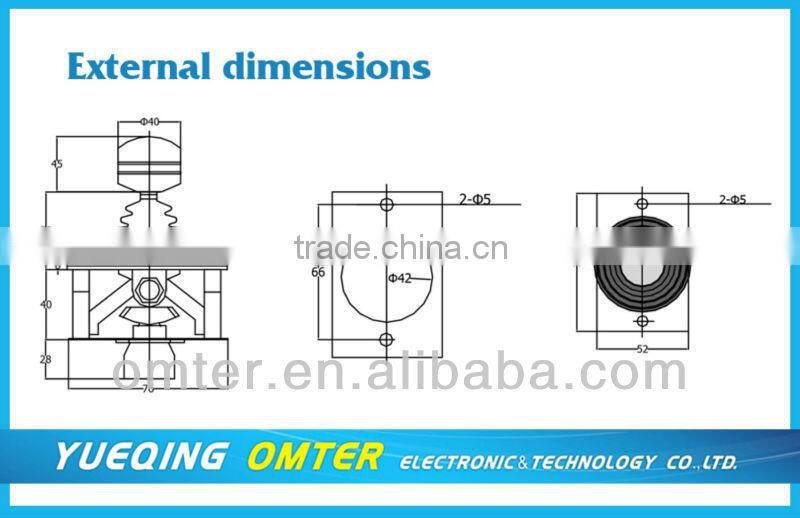

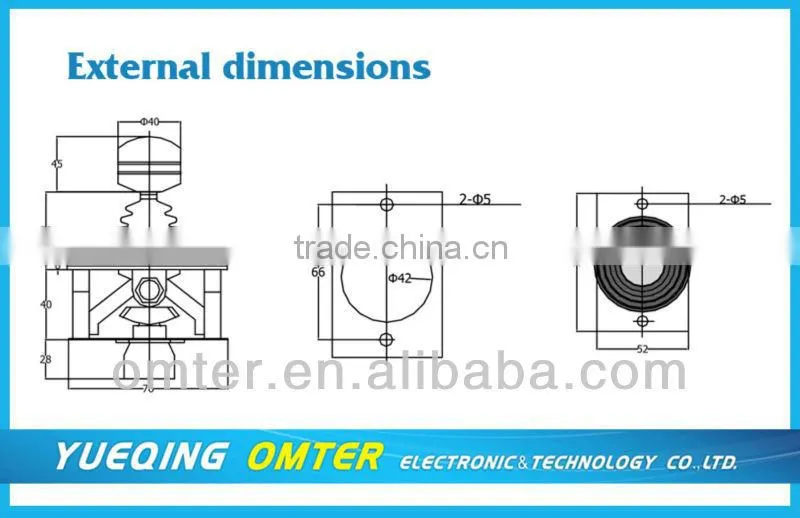

OM6000 Series joysticks Drawing:

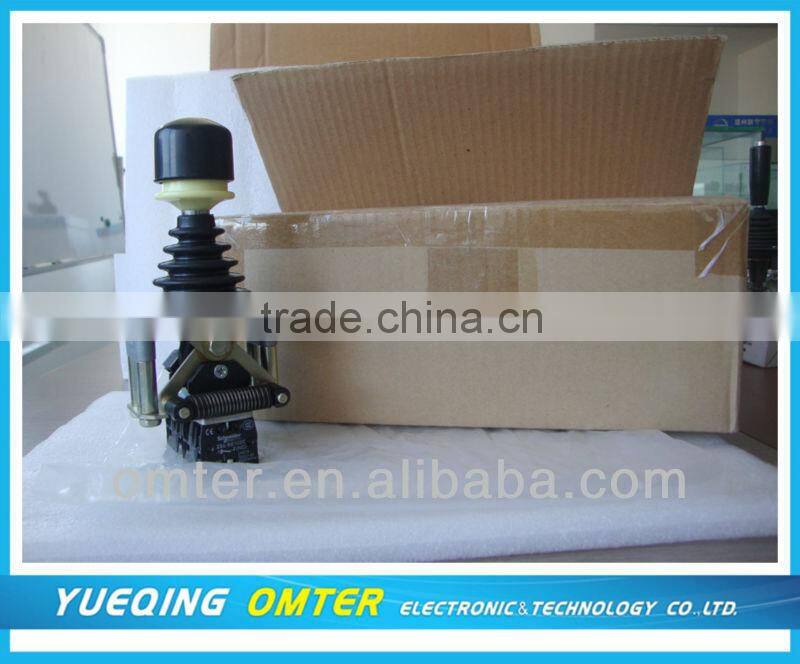

Package:
Express delivery:
Sample:
1. Samples time: Need 7-10 days to preparing the samples after receiving the payment.
2. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 1PC
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
| 1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
| 7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better . |
