Specifications
1. Brand: OMTER2.OM8000-S-DZ-M-P1-B001 ONE BUTTON HANDLE joystick
3.optional resistance value
4.Competivie price
5.High
OM8000-S-DZ-M-P1-B001 ONE BUTTON HANDLE Dustproof and waterproof mechanical formndustrial joystick

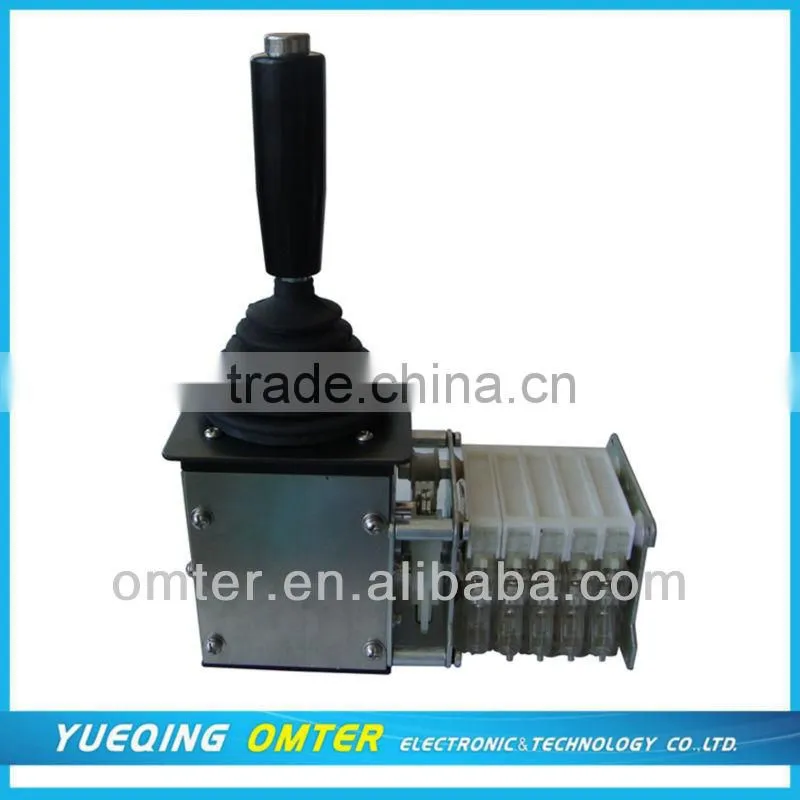

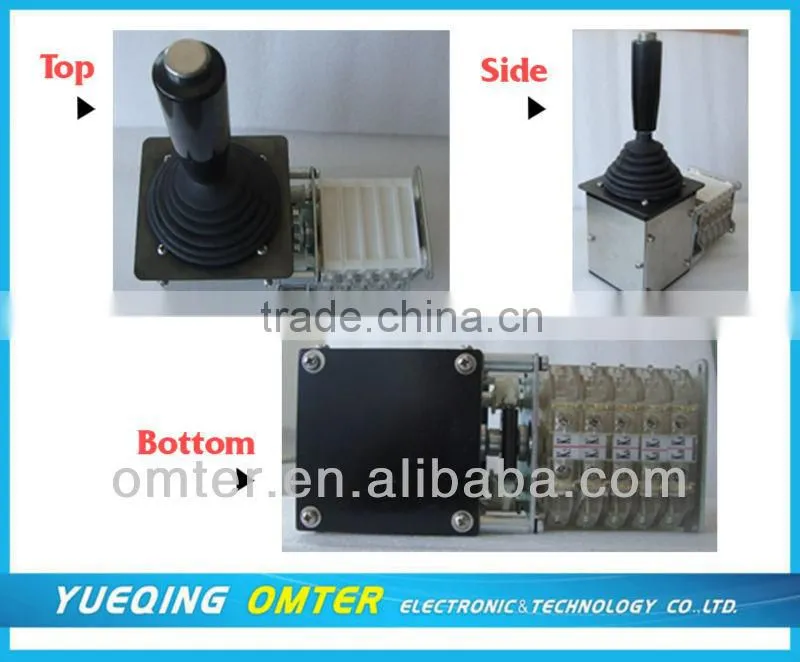

Detailed picture:
Product characteristic:
Equipped with modular circuit output, enabling customers to supporting a variety of control equipment, cost-effective.Designed personalized, simply operated
metal structure safe and reliable
designed by IP 65 system,great for protection dustproof and waterproof
Output characteristics: mechanical forms: quick installation , Manual with stalls, center-zero lock (down to unlock)
Electric output style : Each Six stalls switch output in front and behind.
Application scope:
This series products mainly Suit for Mining machinery, marine machinery, engineering machinery, etc
| Product Selection: | |
| OM8000- O OO O- OO - BOOO - NOOO | |
| 1. 2. 3. 4. 5. 6. 7. | |
| Sub-item selection instructions: | |
| 1.Product series number | OM8000series industrial joystick is suit for Mining machinery, marine machinery, engineering machinery, etc |
| 2.Spring return method |
T-spring M-friction S-mechanical lock |
| 3.Joystick moving direction |
DZ-single axis (front and behind) SZ-Double axis (front, behind, left, right direction) SW-Three axis(front, behind, left, right ,up and down ) |
| 4.Limitation method |
Full is empty S-Cross the limit M-"*" limit L"-L" limit *-"*"limit |
| 5.Output way |
P1:common double direction P2:common single direction V1: 0 ~±10Voutput V2: 0~±5Voutput |
| 6.Handle style | handle model:B001 ~B0025( total 25 kinds of handles offer to choose, also, can as the customer requirement customized) |
| 7.Button output | According to customer requirements can be equipped with 1 to 6 buttons.(Buttons have waterproof plastic button, waterproof metallic button and so on in different size, If any special require in order ,please contact customer service) |
Technical parameter:
| Mechanical parameter: | |
| Operate torque X and Y axis: | about 15N |
| Restoration Error Rate: | 0 |
| expected service life of rotary: | about 5,000,000 times |
| Storage Temperature: | -10°C to 80°C |
| Work Temperature: | -10°C to 80°C (no gel) |
| Protection level: | IP65 |
| output connection: | As base tag connection |
| Electrical parameter: | |
| AC 250V Switch Work voltage: | AC 250V |
| Linear tolerance: | ±1% |
| Insulation Resistance: | 50 MO@ 500VDC,60 sec |
| Resolution : | Infinite |
| Temperature Coefficient Resistance: | ±400 ppm/°C |
| X And Y Axis Electricity Corner: | ±32 degree |
| Wire length: | As required (Wiring Terminals) |

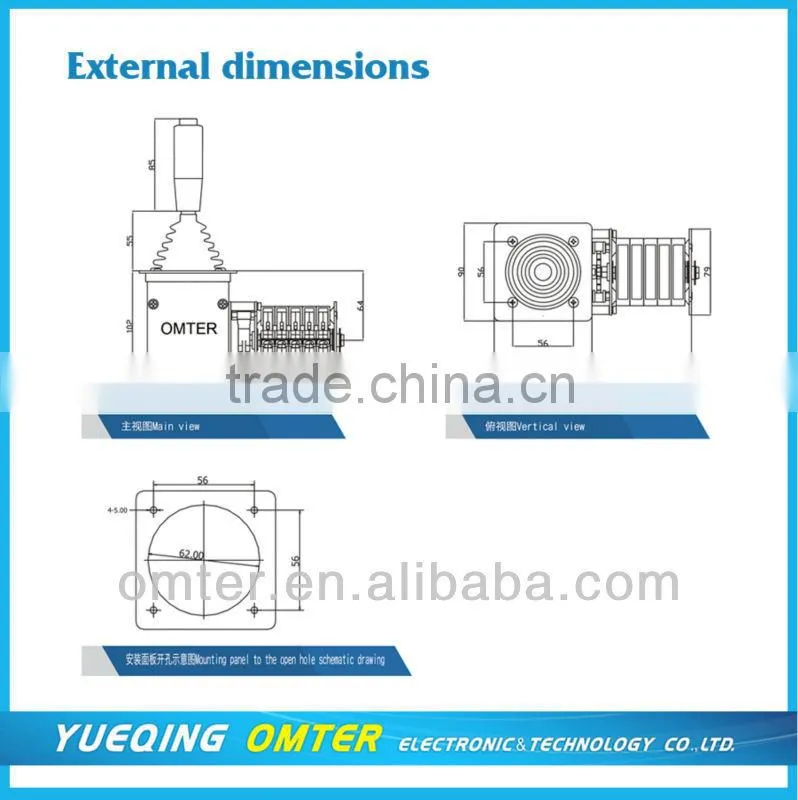

OM8000 Series joysticks Drawing:

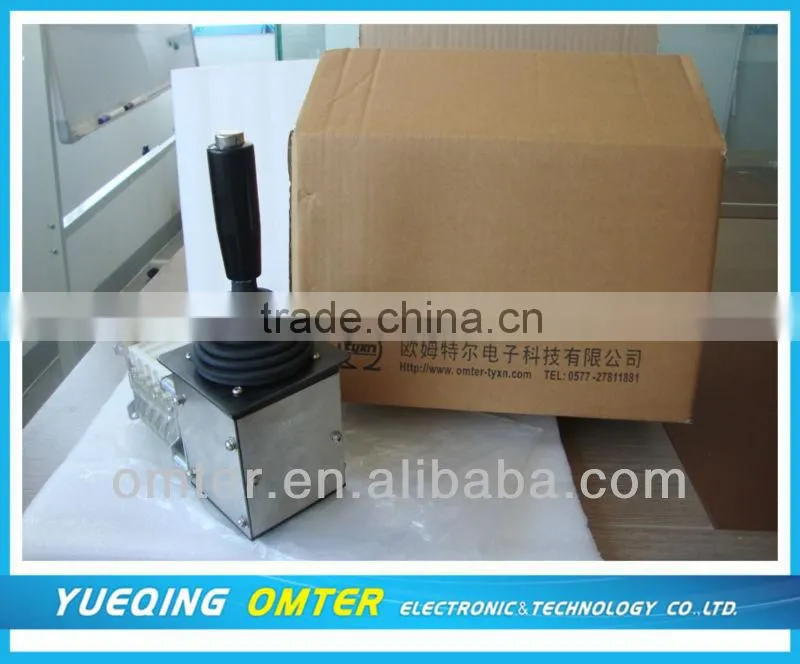

Package:
Express delivery:
Sample:
1. Samples time: Need 7-10 days to preparing the samples after receiving the payment.
2. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 1PC
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
| 1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
| 7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better . |
Company Picture:
...
