OM11-2A-P051-L Spring Automatic Return Industrial Joystick
US$ 200 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OMTER
Model Number:
OM11-2A-P051-L
Compatible Platform:
PSP
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OM902 Long Life-time Joystick for Medical Imaging SystemUS$ 65 - 70MOQ: 1 Piece -
OM8000-S-DZ-M-P1-B001 ONE BUTTON HANDLE Dustproof and Waterproof Mechanical Formndustrial JoystickUS$ 800 - 900MOQ: 1 Piece
-
OM6600-SCO-MS22-BG-L-N IP 65 System Industrial Joystick for Mining MachineryUS$ 650 - 700MOQ: 1 Piece
-
OM900 Three Axis Hall Type Industrial JoystickUS$ 70 - 80MOQ: 1 Piece
-
Industrial JoystickUS$ 650 - 700MOQ: 1 Piece
Brand Name
OMTER
Model Number
OM11-2A-P051-L
Compatible Platform
PSP
Type
Joystick
Place of Origin
Zhejiang, China
Specifications
1. Brand: OMTER2.OM11-2A-P051-L joystick
3.optional resistance value
4.Competivie price
5.High quality

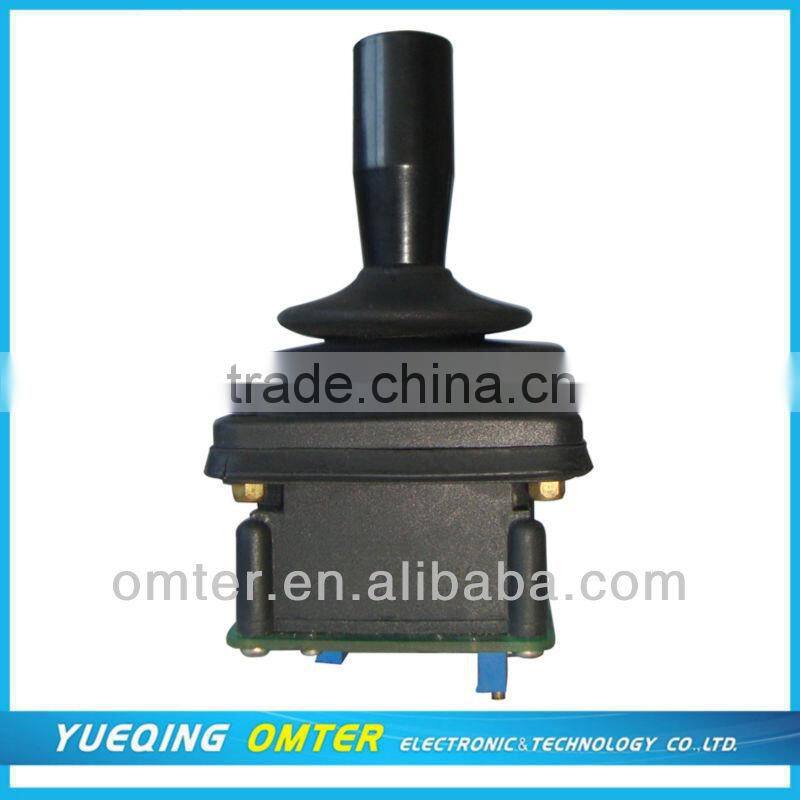

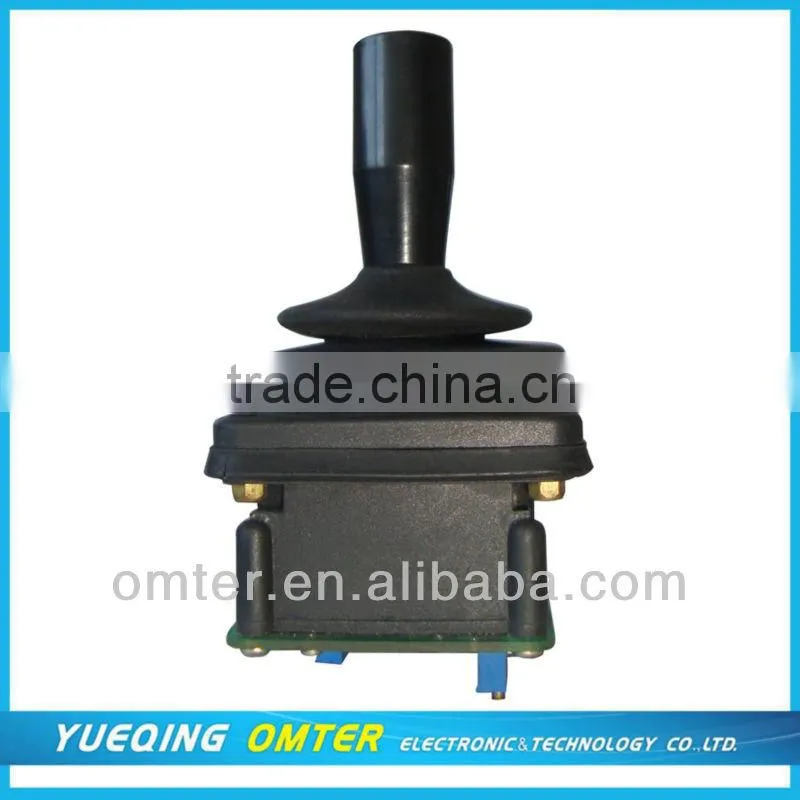

OM11-2A-P051-L Spring automatic return industrial joystick

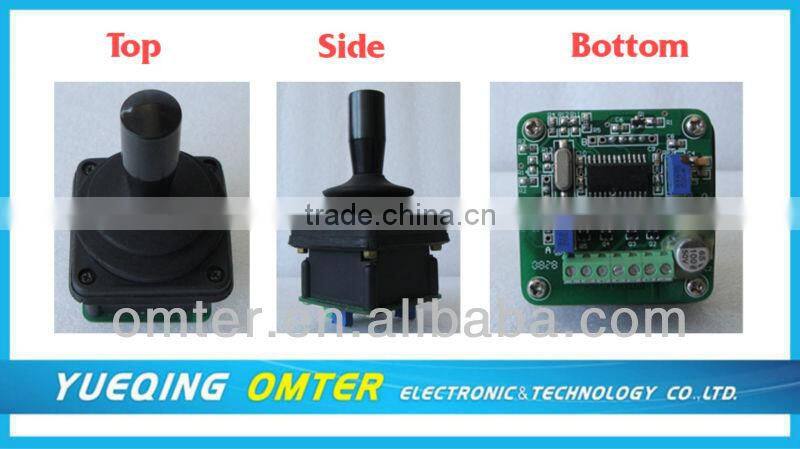

Detailed picture:
Product characteristic:
Spring automatic return.
Could single axis both sides to operation; Could double axis any direction operation With center-tapped potentiometer angle detection method
Below maximum current 10mA direction switch.
Could with the voltage converter board of DC24V power supply voltage, - 10V~0V~+10V voltage output or +10V~0V~+10V.
Could with scaling board direct drive hydraulic proportional valve. Drive current 0.5~3A adjustable.
Application scope:
This series product mainly applies in the project vehicles, the project machinery.| Product Selection: | |
| OM11 - OOO - OOO - OOO | |
| 1 2 3 4 | |
| Sub-item selection instructions: | |
| 1.Product series number | OM11, 5KΩ with center-tapped potentiometer,with 10mA direction of current switch,the spring automatic reset, installment pitch of holes size 44mm*44mm |
| 2.Output axis and operating mode | 1A= single axis The 2A= Double axis any direction operate |
| 3.Output signal | P051= with 5K Ω center-tapped potentiometer 0~100% voltage output U21=DC24V power source, - 10V~0V ~+10V voltage output U22=DC24V power source, +10V ~0V ~+10V voltage output U23=DC24V power source, - 5V~0V ~+5V voltage output U24=DC24V power source, +5V ~0V ~+5V voltage output I21= two-wire system 4mA ~12mA ~20mA electric current output I22= two-wire system 20mA ~4mA ~20mA electric current output The PWM224=PWM with scaling board current output, supply voltage DC24V, 2 road output The PWM424=PWM with scaling board current output, supply voltage DC24V, 4 road output The PWM212=PWM with scaling board current output, supply voltage DC12V, 2 road output The PWM412=PWM with scaling board current output, supply voltage DC12V, 4 road output |
| 4.Handle top port | The S= short handle, φ19*h20, without the button The L= long handle, φ19*h45, without the button |
Technical parameter:
| Mechanical parameter: | |
| Swing angle: | ±32 |
| Service life: | Is bigger than 1,000,000 times |
| Operation strength: | 15 (biggest) |
| Limit strength: | 200N |
| Weight: | 125g |
| Electrical parameter: | |
| Total resistance value: | 5KΩ |
| Electric angle: | ±30° |
| The median position voltage (relative to power supply voltage): | 48%~52% |
| The median position dead zone angle: | ±2.5° |
| The potentiometer loads max voltage: | DC32V |
| Potentiometer allows the maximum power consumption (25°C): | 0.25W |
| Direction switch: Load capacity: | 10mA@30Vdc (resistive load) |
| Outset angle: | ±3°~±5° |
| Environment parameter: | |
| Operating temperature scope: | - 20°C~+70°C |
| Protection rank: | IP65 |

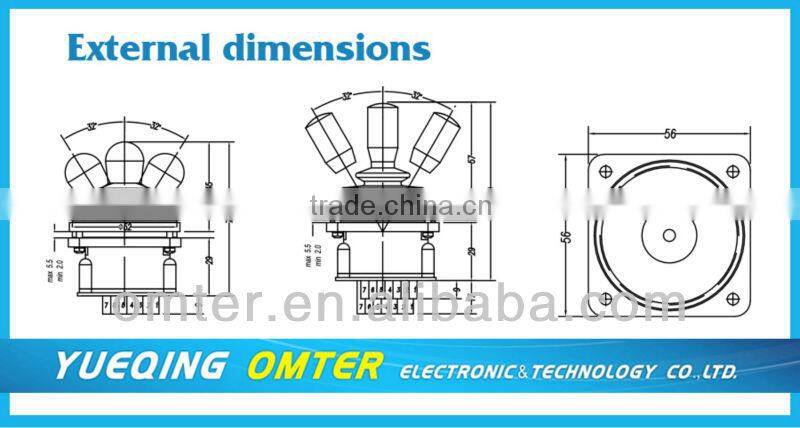

2-axis industrial joysticks Drawing:

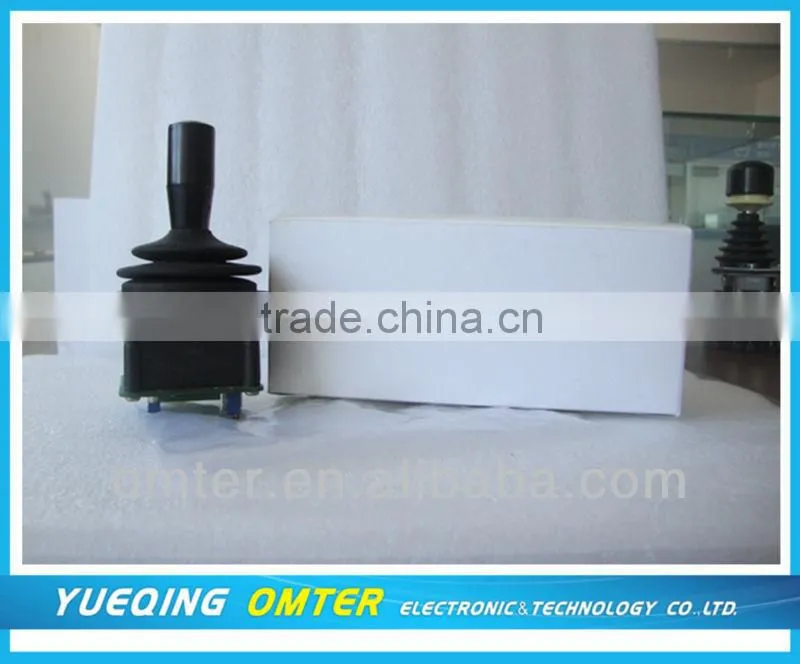

Package:
Express delivery:
Sample:
1. Samples time: Need 7-10 days to preparing the samples after receiving the payment.
2. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 1PC
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
| 1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
| 7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better . |
