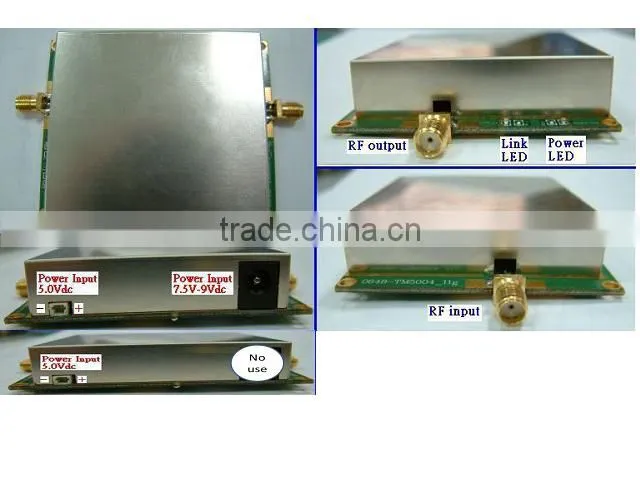

Help CenterCost-effective High Performance WIFI Booster Module
Related Products
-
Indoor WiFi Booster Module (with Casing)NegotiableMOQ: 1 -
4W 2.4GHz High Power Wifi Booster Module AmplifierNegotiableMOQ: 1
-
2.4GHz 2W ISM Band WiFi Booster Amplifer ModuleUS$ 19 - 26MOQ: 30 Pieces
-
2.4GHz Indoor WiFi Booster Module (with Casing)NegotiableMOQ: 1
-
4Watt ISM Band 2.4GHz WIFI Booster ModuleUS$ 25 - 55MOQ: 10 Pieces
Part number: TM5004-S4P
Application
- WLAN 802.11b/g, 802.11 superG
- Wireless systems at 2.4GHz ISM Band
- Remote point to point link
- Wireless base station
- Bridge link between networks
Parameter |
Min. |
Typ |
Max. |
Unit |
Remark |
Frequency Range |
2400 |
|
2500 |
MHz |
|
Output Power @ 1dB Compression |
|
33 |
|
dBm |
|
Linear Output Power |
|
30 |
|
dBm |
@ 802.11b / 11Mbps |
|
27 |
|
dBm |
@ 802.11g / 54Mbps |
|
Tx Mode Turn On Power |
-2 |
-1 |
0 |
dBm |
These parameters can be adjusted per customer request |
Fixed Transmit Gain |
14 |
15 |
16 |
dB |
|
Receiver Input Power |
|
|
15 |
dBm |
|
Receiver Gain |
9 |
10 |
11 |
dB |
|
Noise Figure |
|
3.5 |
|
dB |
|
Transmitter Current Consumption |
|
350 |
1450 |
mA |
Measure at DC input point |
Receiver Current Consumption |
|
90 |
|
mA |
Measure at DC input point |
Input/Output VSWR |
|
|
2 |
|
|
Operating Temperature |
-20 |
|
+70 |
℃ |
|
DC Supply Voltage (Option 1) |
4.8 |
5.0 |
5.5 |
V |
|
DC Supply Voltage (Option 2) |
7.0 |
7.5 |
12 |
V |
7.5V is Recommended |
RF Connector |
|
|
|
|
SMA Female |
Dimension |
|
|
|
mm |
75.6 x 62.3 x 15 |
Net Weight |
|
52 |
|
g |
|
[Note]: The above spec is defined base on 25 oC / RH=70%.
>>>" href="https://img13.fr-trading.com/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is: Ex-work Taiwan, the FOB pricing is for reference only
If there is any product information needed, please contact us or consult online
>>>" href="https://img13.fr-trading.com/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>
MITS is a Taiwanese Company has more than 20 years of trading experiences with clients all over the world.
Any kind of customizing product projects are welcome. Please feel free to contact us for product details.
