Help Center4Watt ISM Band 2.4GHz WIFI Booster Module
Related Products
-
Cost-effective High Performance WIFI Booster ModuleUS$ 25 - 55MOQ: 10 Pieces -
Indoor WiFi Booster Module (with Casing)NegotiableMOQ: 1
-
4W 2.4GHz High Power Wifi Booster Module AmplifierNegotiableMOQ: 1
-
2.4GHz 2W ISM Band WiFi Booster Amplifer ModuleUS$ 19 - 26MOQ: 30 Pieces
-
2.4GHz Indoor WiFi Booster Module (with Casing)NegotiableMOQ: 1

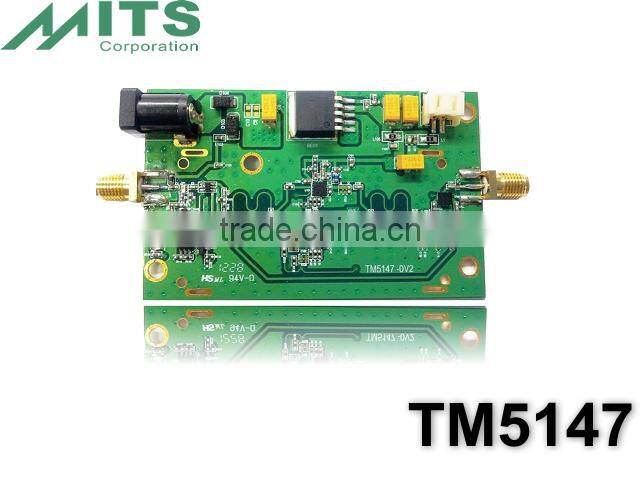

Part number: TM5147
Parameter |
Min. |
Typ. |
Max. |
Unit |
Remark |
Frequency Range |
2400 |
|
2500 |
MHz |
|
Output Power @1dB Compression |
34 |
35 |
|
dBm |
|
Linear Output Power |
|
32 |
|
dBm |
@ 802.11b/ 11Mbps |
|
30 |
|
dBm |
@ 802.11g/ 54Mbps |
|
|
27 |
|
dBm |
@ 802.11n/ 300Mbps |
|
Peak Output Power |
|
36 |
|
dBm |
@ 802.11b/ 11Mbps |
|
37 |
|
dBm |
@ 802.11g/ 54Mbps |
|
|
31 |
|
dBm |
@ 802.11n/ 300Mbps |
|
Tx Mode Turn On Power |
|
0 |
|
dBm |
Adjustable depends on customer |
Fixed Transmit Gain |
|
16 |
|
dB |
|
Power Input |
|
|
20 |
dBm |
|
Receive Gain |
10 |
11 |
|
dB |
|
Noise Figure |
|
2.5 |
|
dB |
|
Transmitter Current Consumption |
|
|
1700 |
mA |
@802.11b mode 33 dBm power out |
Receiver Current Consumption |
|
30 |
|
mA |
|
Input/Output VSWR |
|
1.5 |
|
|
|
Operating Temperature |
-20 |
|
+85 |
|
°C |
DC Supply Voltage 1(White Wafer) |
4.5 |
5.0 |
5.5 |
V |
|
DC Supply Voltage 2(Black Jack) |
6.5 |
7 |
9 |
V |
|
LED Color for Power Up |
|
Red |
|
|
|
LED Color for link |
|
Green |
|
|
|
>>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.
Accept small, trial orders, and customised orders too!
Please note: All of our product's delivery term is: Ex-work Taiwan, the FOB pricing is for reference only
If there is any product information needed, please contact us or consult online
>>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>
MITS is a Taiwanese Company has more than 20 years of trading experiences with clients all over the world.
Any kind of customizing product projects are welcome. Please feel free to contact us for product details.
