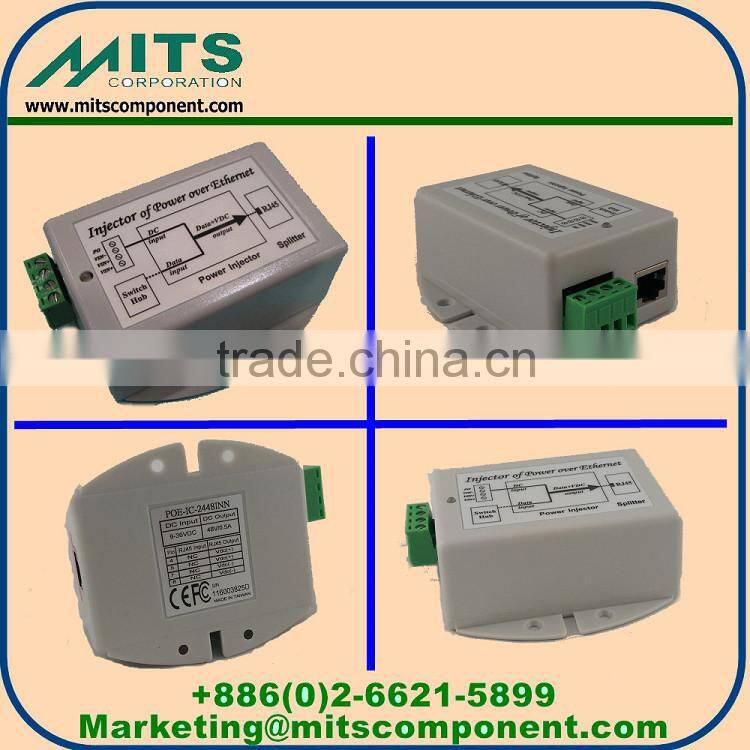

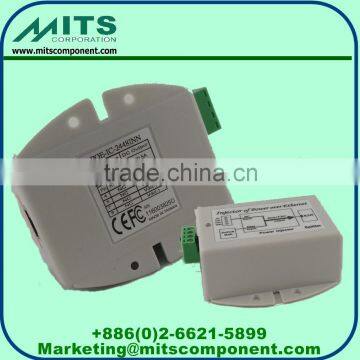

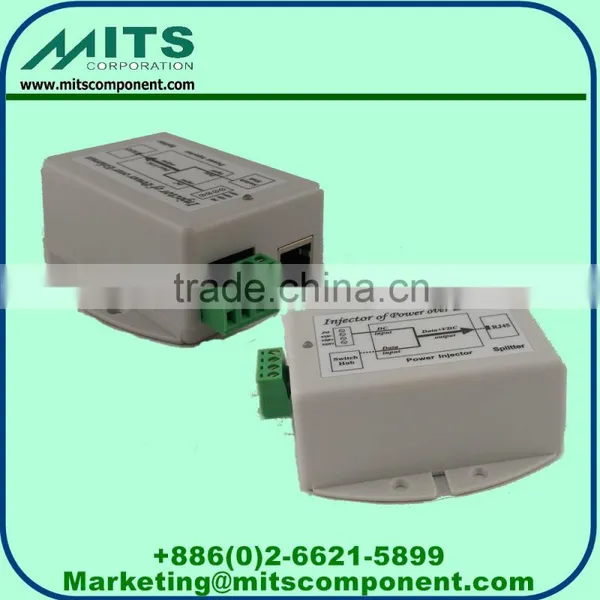

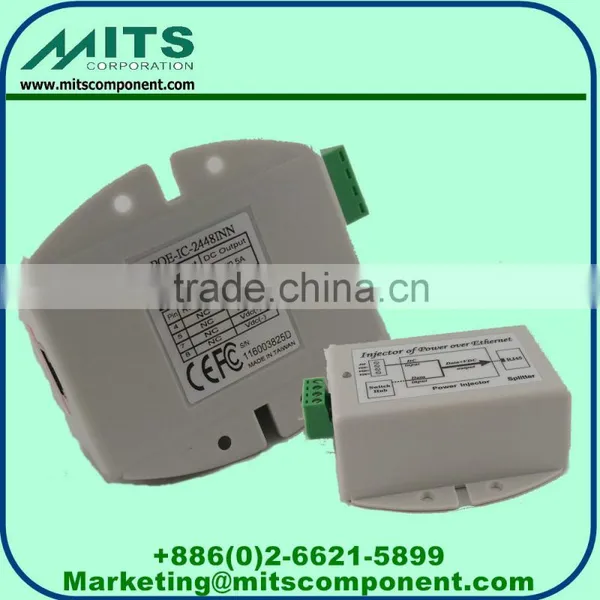

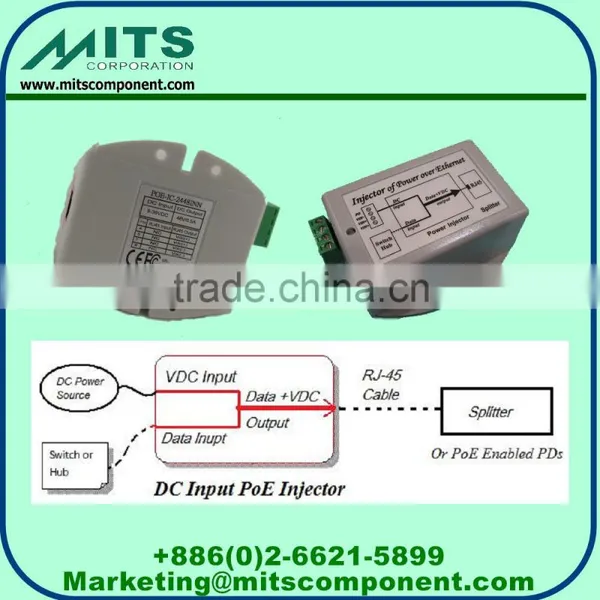

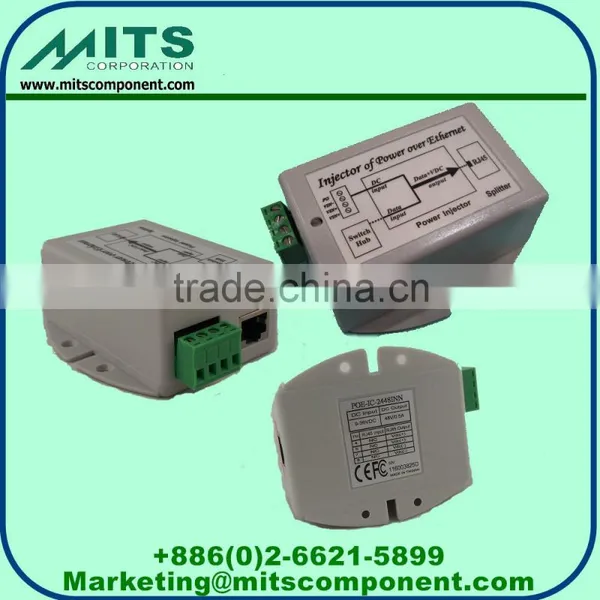

Help CenterMITS 18V - 28V AC Input POE Injector - 24V & 48V Output, 16.8 - 20W Power, for AP, IP Cam, IP Phone, Industrial Usage, 802.3AF
Related Products
-
17W/48V 1 Port Gigabit PoE Injector for IP Phone, IP Cam, AP, Security & Networking DevicesUS$ 35 - 74MOQ: 10 Pieces -
CE/FCC 24W/48V 1 Port Gigabit PoE Injector for IP Phone, IP Cam, AP, Security & Networking DevicesUS$ 38 - 77MOQ: 10 Pieces
-
18W/18V 1 Port PoE Injector for IP Phone, IP Cam, AP, Security & Networking DevicesUS$ 25 - 60MOQ: 10 Pieces
-
17W/48V 1 Port PoE Injector for IP Phone, IP Cam, AP, Security & Networking DevicesUS$ 41 - 81MOQ: 10 Pieces
-
35W/56V Gigabit 802.3at PoE InjectorUS$ 56 - 99MOQ: 10 Pieces

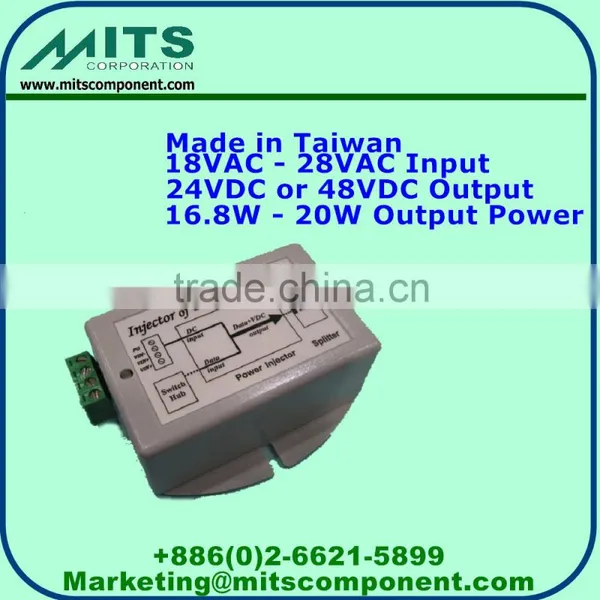

Input Voltage: 18 - 28VAC
Output Voltage: 24VDC, or 48VDC
Output Power: 16.8W / 20W
Max. Output Current: 0.35A - 1A
Efficiency: 75%
Protections: Short Current Protection / Input Fuse Protection
Certificates: UL1950 / CSA22.2 / TUV EN60950 / FCC Class B / NE55022 Class B
>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0">CONTACT US NOW>>>
Application
- IP Phone
- IP Camera
- Access Point
- Door Security
- Security CAM
- Any network terminals which work with industrial DC input system
- Network terminals which require power under 24W.
Spec
| |
Input Voltage |
AC 18V ~ 28V |
Input Current |
1.65A at 24Vac |
Output Voltage |
+48V |
+24V |
+18V |
+48V |
Max. Load |
500mA |
800mA |
1A |
350mA |
Max. Power |
24W |
19.2W |
18W |
16.8W |
802.3af detection |
No |
No |
No |
Yes |
Min. Load |
0.01A |
|||
Load reg. % |
5% |
|||
Line reg. % |
1% |
|||
Ripple % |
1% |
|||
Noise % |
2% |
|||
Efficiency |
75% min. @F.L |
| |
Short Circuit Protection |
It will not damage the PoE Injector if Output Short to GND by other Terminal. The PoE Injector process Auto-Recover when Load status comes back. |
Over Current Limits |
120% ~ 160% 12Vdc/24Vac input full load. |
Input Fuse Protection |
Yes |
LED indication |
Channel Powered:Green light. 802.3af detection standby:Red light. |
PoE detection |
We also do the 802.3af detection mechanism (option) |
| ||
|
Signal |
Power |
Operating Voltage |
Data 5V |
385Vdc |
Clamping Voltage |
Data 11V |
775Vdc |
Max. Surge Discharge Current |
|
1200A (8/20uS) |
Peak Pulse Current |
36A (10/1000uS) |
|
Pin Protected |
Common mode |
|
Max. Shut Capacitance |
<5pF |
|
Data Rate |
100 Mbps |
|
Response Time |
<1 nS |
|
| |
EMC |
FCC Class B , EN55022 Class B |
Safety Standard |
UL1950, CSA 22.2 &TUV EN60950 |
| |
Operation Temperature |
18~48Vdc Output Power |
Normal Grade |
-25℃ to 50℃ |
Storage Temperature |
-40 ~ +80 ºC |
Operation Humidity |
5% - 90% |
Cooling |
Free air cooling |
- RJ-45 Connector and Pin-out
|
RJ-45 Input (Data Only) |
RJ-45 Output (Data & Power) |
||
Pin |
Symbol |
Description |
Symbol |
Description |
1 |
Rx+ |
Data Receive |
Rx+ |
Data Receive |
2 |
Rx- |
Data Receive |
Rx- |
Data Receive |
3 |
Tx+ |
Data Transmit |
Tx+ |
Data Transmit |
4 |
NC |
Not Connected |
-Vdc |
Feeding power(+) |
5 |
NC |
Not Connected |
-Vdc |
Feeding power(+) |
6 |
Tx- |
Data Transmit |
Tx- |
Data Transmit |
7 |
NC |
Not Connected |
-Vdc_return(+) |
Feeding power(-) |
8 |
NC |
Not Connected |
-Vdc_return(+) |
Feeding power(-) |
- Available Part Number - Customise Welcome
Part number |
Description |
POE-ID-1748IDN |
AC Input, 17W/48V output, with IEEE 802.3af detection |
POE-IC-1924INN |
AC Input, 19W/24V output, no optional function |
- Mechanical & Dimension
Plastic Case Material |
PC |
Plastic Case Finish |
Texture |
Plastic Case Color |
Gray |
Plastic Case Dimension |
86 x 76 x 36 (L x W x H) mm. |

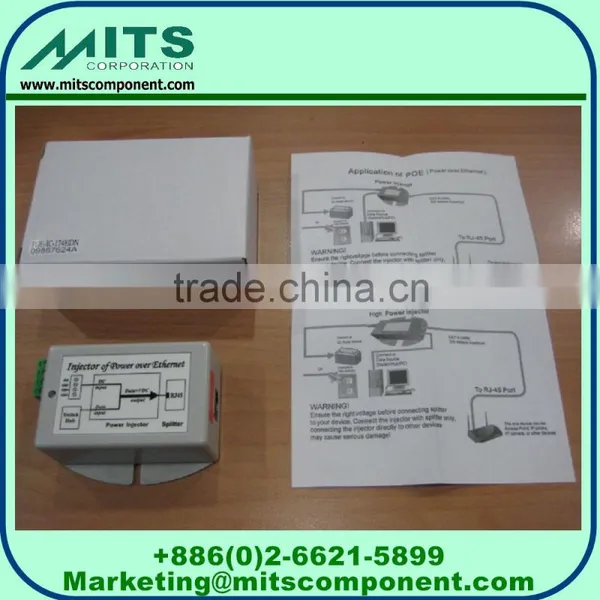

- Package
Number of unit in one Carton |
100 |
Weight and Volume without Power cord |
N.W.:17Kg. G.W.:18Kg. 1.9Cuft. |
White Box Dimension |
120 x 85 x 40 (L x W x H) mm |
Power cord Package |
N.W.:15Kg. G.W.:16Kg. 1.3Cuft. |
>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0">CONTACT US NOW>>>
Please note: All of our product's delivery term is: Ex-work Taiwan
If there is any product information needed, please contact us or consult online
MITS is a Taiwanese Company has more than 20 years of trading experiences with clients all over the world.
Any kind of customising product projects are welcome. Please feel free to contact us for product details.
