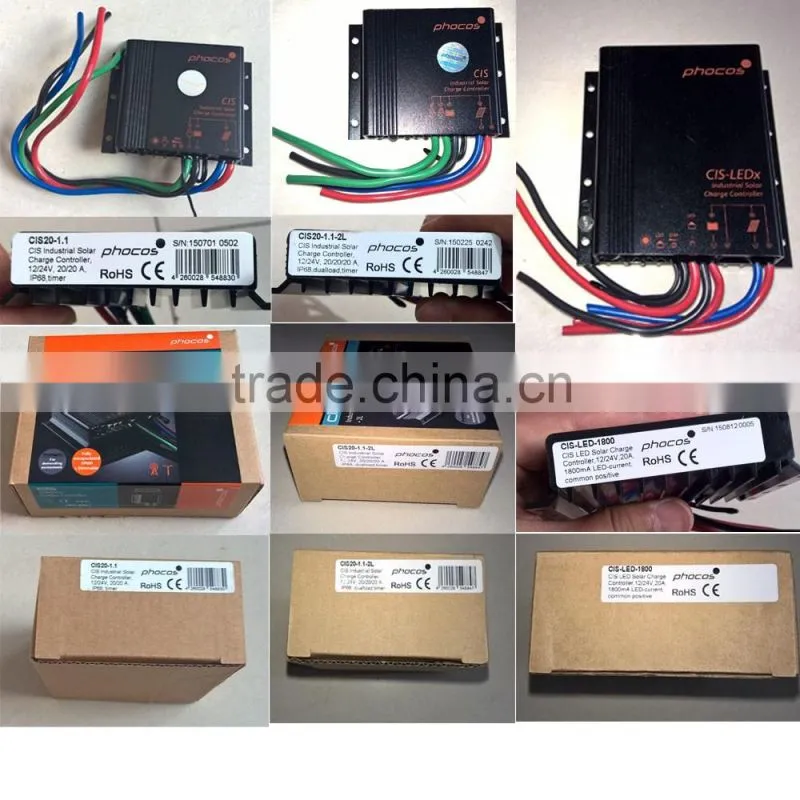

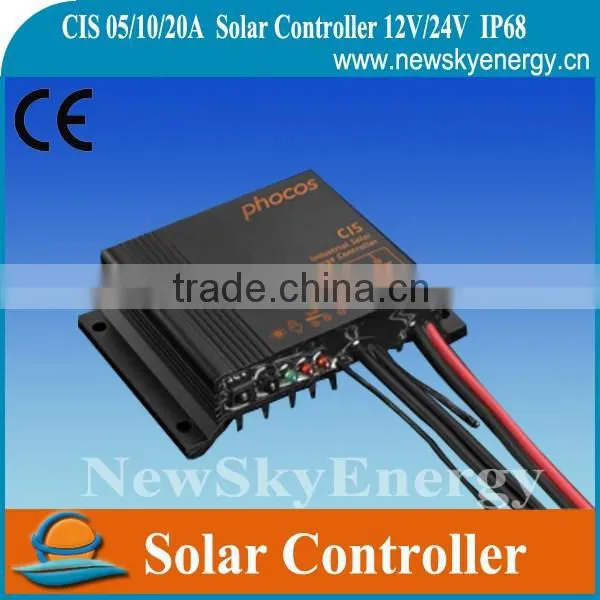

Phocos CIS05/10/20 Solar Street Light Charge Controller
•Epoxy Encapsulated PCB to Prevent Corrosion (IP68)
• Compact Size
• Infrared Remote Control Programming Accessory (CU)
• Intelligent Timer Functions
• Widely Programmable
• External Temperature Sensor (Optional)
• 4 Stage Battery Charging (Main, Float, Boost, Equalization)
• Dual load or Dimmable Load Output
• Automatic System Voltage Recognition (12/24V)
PV-Systems exposed to extreme weather/environmental conditions (street lights, navigation buoys, etc.) have increased risk for damage in the power electronics. In order to assure reliable battery charge control under such conditions, Phocos developed an encapsulated charge controller (IP68) to prevent corrosion: CIS. CIS is an industrial-grade charge controller that is suitable for all practical PV applications. High-quality, 4-stage PWM-charging is combined with amazing features such as: low-voltage disconnect, flexible load timer functions, and a multi-LED system status display. CIS is available in two versions:
* Dual load to independently control two loads
* Output Dimming to save energy in lighting applications.

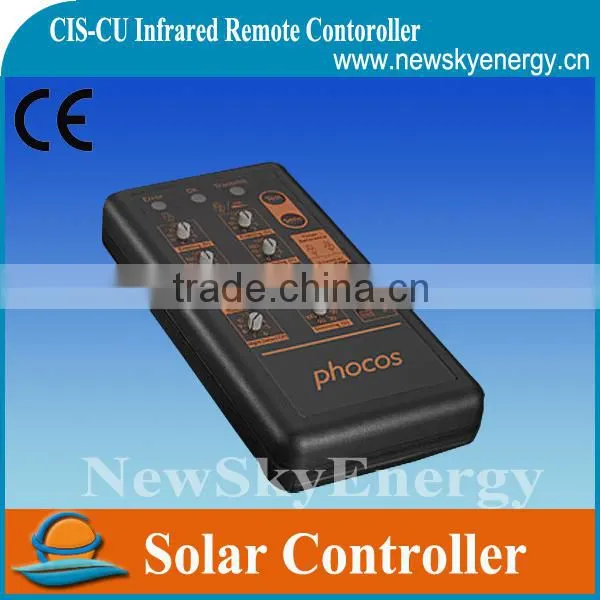

The CIS has no moving parts, switches or buttons. Settings such as battery type, deep discharge thresholds, timers, etc. are made quickly and easily via infrared remote control accessory.

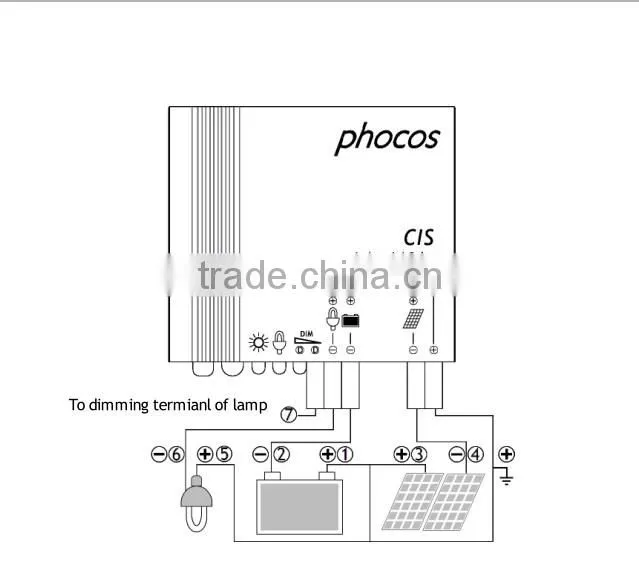

All devices are connected to the controller by supplied lead wires rather than wire terminals. This feature eliminates the risk of damage from external influences (corrosion, dust, water, bugs, chemicals, physical shock) where components make electrical contact to the controller.
The extremely compact aluminum housing even allows for mounting CIS inside street light poles. CIS was developed in accordance with well-established Phocos standards incorporating the latest technology, highest-quality and best possible cost/performance.
Type |
CIS 05 |
CIS 10 |
CIS 20
|
System voltage |
12/24 V auto recognition |
||
Max. charge/load current |
5A |
10A |
15A |
Float charge |
13.8/27.6 V (25 °C) |
||
Main charge |
14.4/28.8 V (25°C), 30 min. (daily) |
||
Boost charge |
14.4/28.8 V (25 °C), 2 h |
||
activation: battery voltage < 12.3/24.6 V | |||
Equalization |
14.8/29.6 V (25 °C), 2 Std |
||
activation: battery voltage < 12.1/ 24.2 V (at least every 30 days) | |||
|
|
||
Cut-off voltage |
11- 12 V / 22- 24 V |
||
Reconnect level |
12.8/25.6 V |
||
Overvoltage protection |
15.5/31.0V |
||
Undervoltage protection |
10.5/21 V |
||
Max. panel voltage |
55 V
|
||
(Overvoltage protection by varistor) | |||
Temperature compensation |
−25 mV/K at 12 V |
||
(Charge voltage) |
−50 mV/K at 24 V |
||
Max. self consumption |
5-8 mA at 12 V |
||
6 -10 mA at 24 V | |||
Grounding |
positive grounding possible |
||
Ambient temperature |
−40 to +60 °C |
||
Max. height |
4,000 m above sea leve |
||
Battery type |
lead acid (GEL, AGM, flooded) |
||
Adjustment range: |
|
||
Evening/morning hours |
0 -15 h / 0 -14 h |
||
Night/day detection |
2.5 -10 V |
||
Wire length |
10 cm |
||
Wire cross section |
1.5 mm2 |
1.5 mm2 |
2.5 mm2 |
Type of protection |
IP68 (1.5 m, 72 h) |
||
Technical data dimming output |
CIS 05 |
CIS 10 |
CIS 20 |
Dimming value |
0-100% output power |
||
Dimming output voltage |
0 -5 V (max. 1 mA) |
||
Also offer different phocos solar charge controller series :
CIS05/10/20A
CML 08-20A
CA6-14A
CISLEDX 10-20A
CIS MPPT20A
CM 4-10A
CX 10-40A
CXN 10-40A

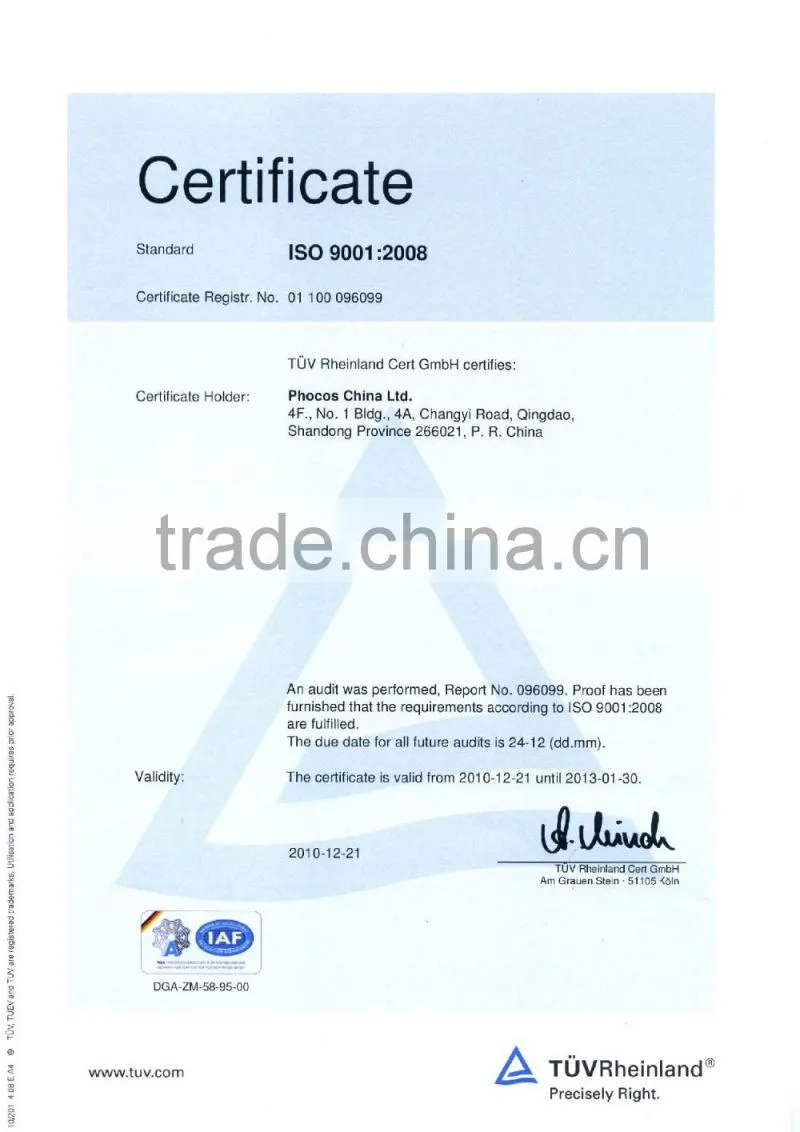

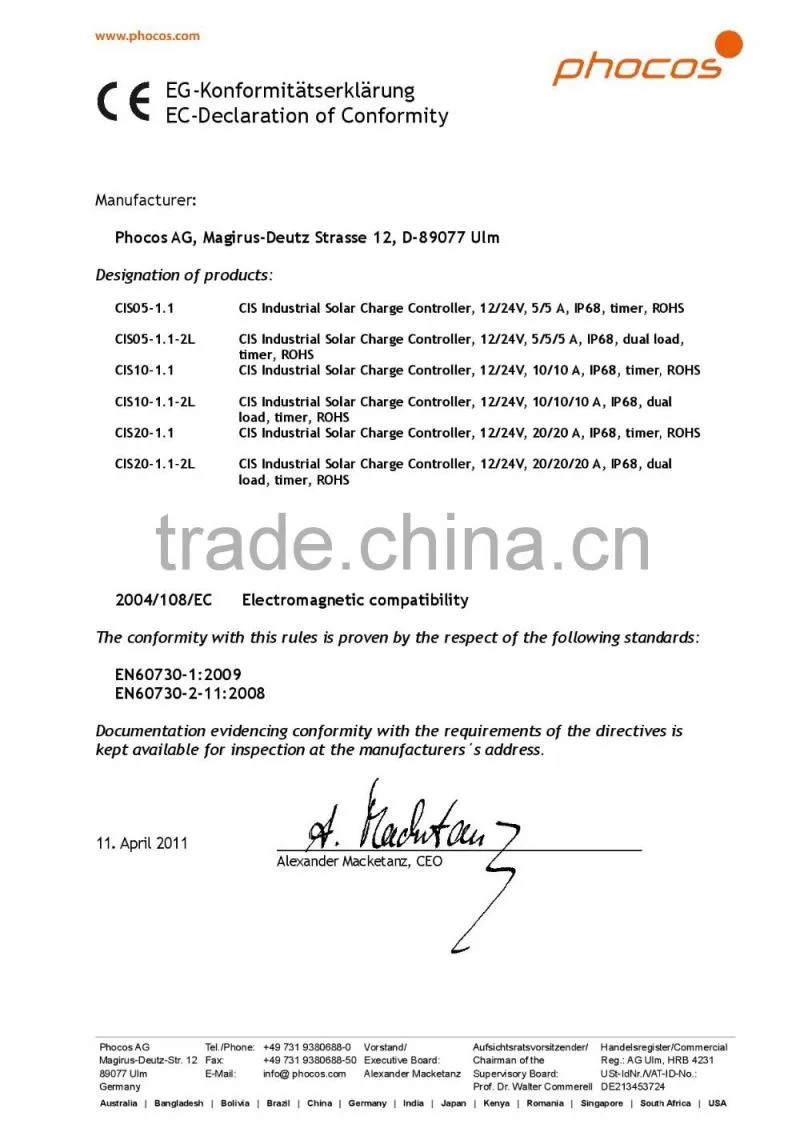

Certifications:
