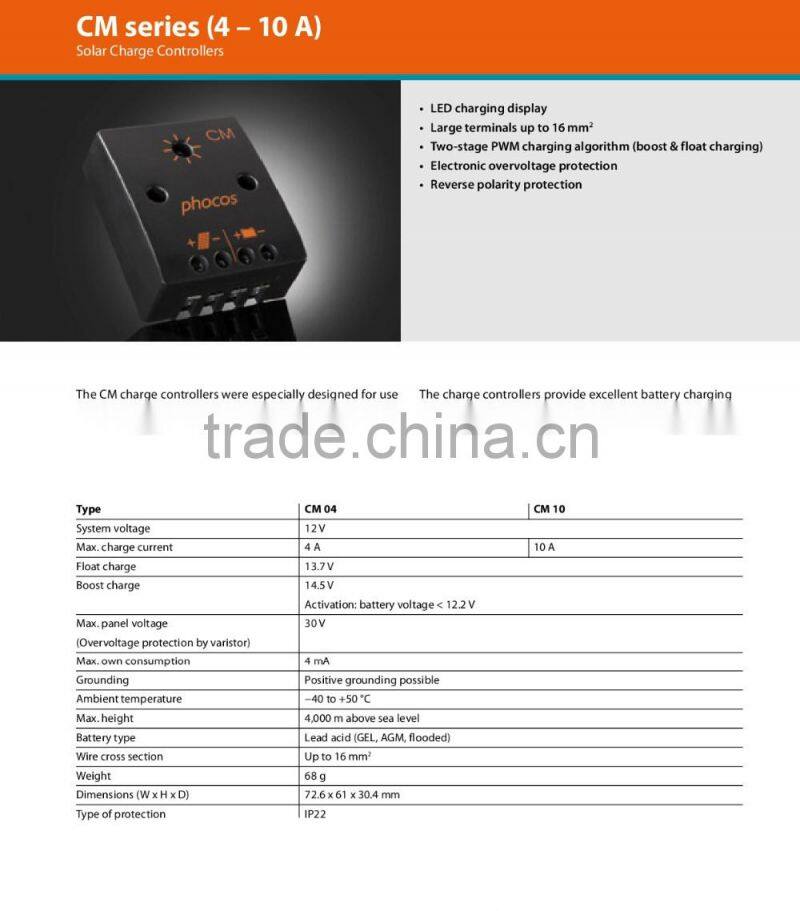

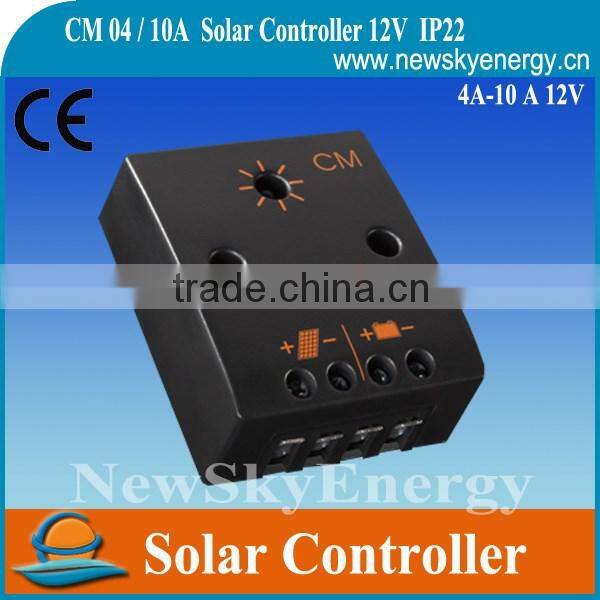

Phocos Industrial 12V CM04/10A Solar Charge Controller
•LED charging display
•Large terminals up to 16 mm2
•Two-stage PWM charging algorithm(boost&float charging)
•Electronic overvoltage protection
•Reverse polarity protection
The CM charge controllers were especially designed for use in small solar system where no load disconnect is required,such as in boats or trailers.The charge controllers provide excellent battery charging at a reasonable cost.
| Type | CM04 | CM10 |
| System voltage | 12V | |
| Max charge current | 4A | 10A |
| Float charge | 13.7V | |
| Boost charge | 14.5V Activation:battery voltage<12.2v | |
Max panel voltage (overvoltage protection by varistor | 30v | |
| Max own consumption | 4mA | |
| Grounding | Positive grounding possible | |
| Ambient temperature | -40 to +50 degree | |
| Max height | 4,000 above sea level | |
| Battery type | Lead acid (GEL,AGM,flooded) | |
Wire cross section | up to 16 mm2 | |
| Weight | 68g | |
| Dimension(WxHxD) | 72.6x61X30.4 mm | |
| Type of protection | IP22 | |
