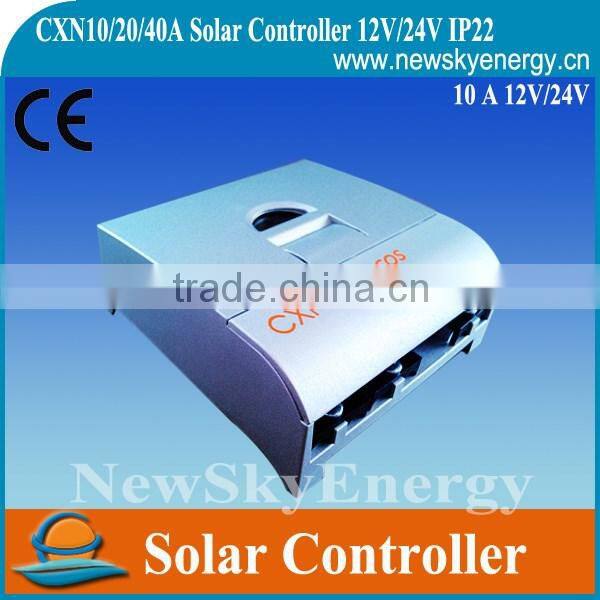

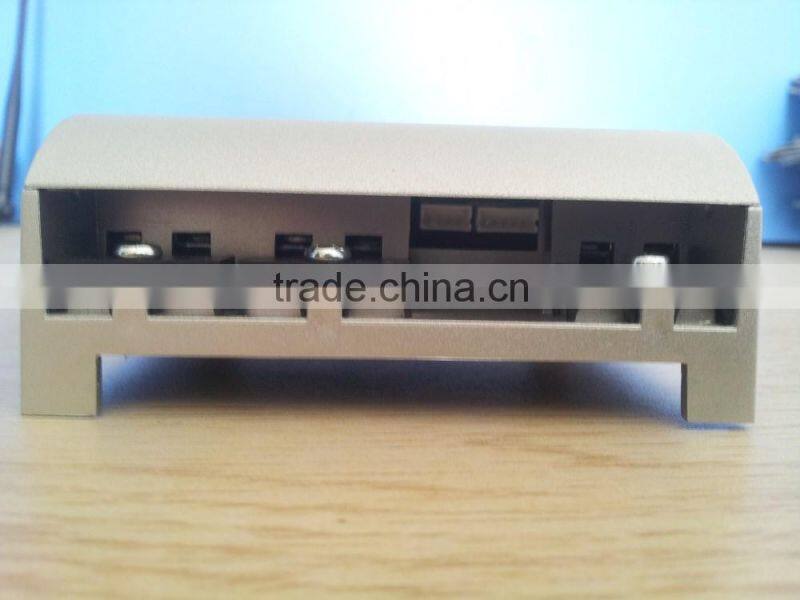

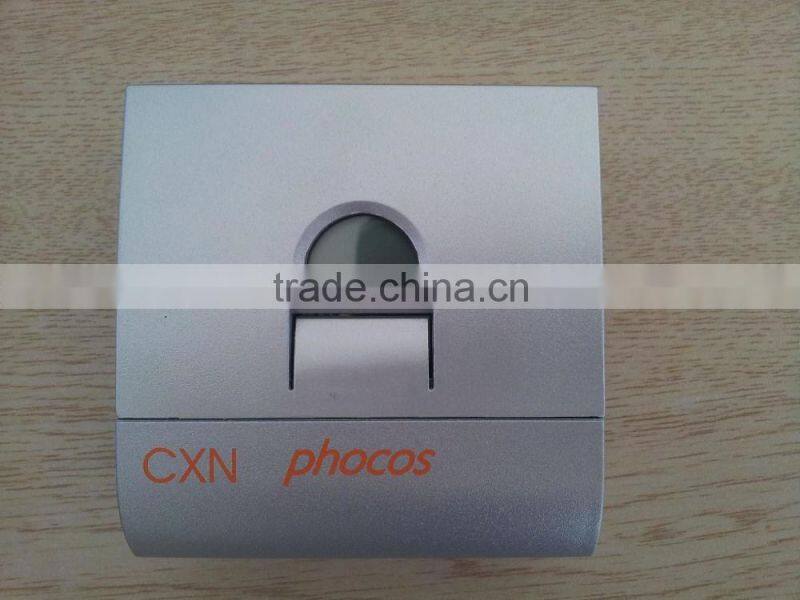

IP22 Phocos CXN 10/20/40A Solar Charge Controller
•Display indiates charge and discharge status
•Load disconnect prewarning by acoustic signal
•Load status indication
•Choose among five load disconnect algorithms.
• Four-stage PWM charging algorithm with integrated temperature compensation

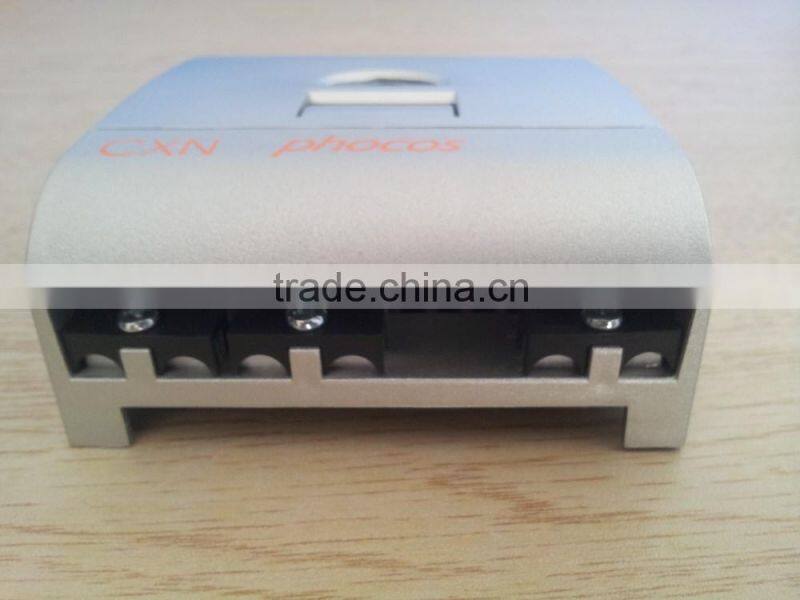

• Protected terminals(up to 16 mm2 wire size)
* Full electronic protection

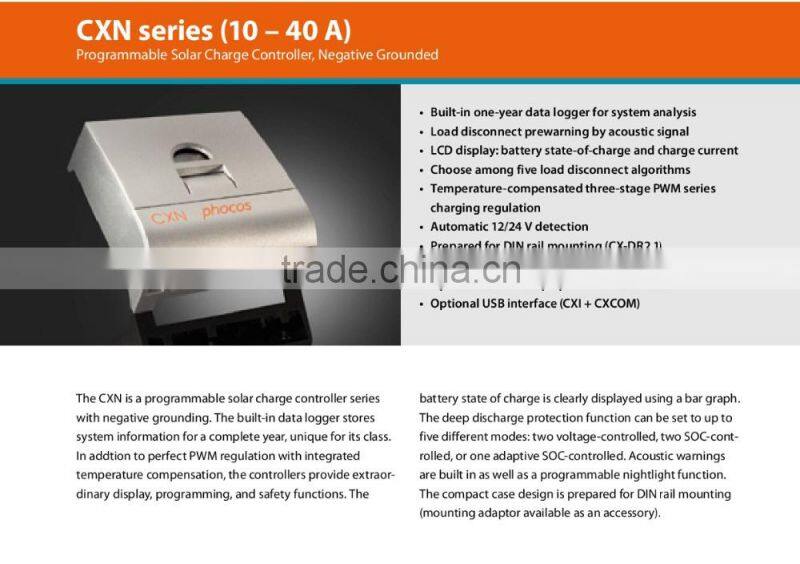

The CX series offers outstanding features in this class. In addition to sophisticated PWM charge regulation with integrated temperature compensation, the CX controllers provide substantial display, programming, and safety function. The battery state of charge is clearly displayed by means of a bar graph, as well as energy flow from and to the battery and the loads status .(e.g. overload, load short circuit).
The Deep discharge protection function can be set to five different models: two voltage-controlled, two SOC-controlled, or one adaptive(battery deep discharge protection). Acoustic alarms are built in and a programmable nightlight function as well. the CX-DR can optional be used for DIN rail mounting.
Type |
CX 10 |
CX 20 |
CX 40
|
System voltage |
12/24 V auto recognition |
||
Max. charge/load current |
10A |
20A |
40A |
Float charge |
13.7/27.4 V (25 °C) |
||
Main charge |
14.4/28.8 V (25°C), 30 min. (daily) |
||
Boost charge |
14.4/28.8 V (25 °C), 2 h |
||
activation: battery voltage < 12.3/24.6 V | |||
Equalization |
14.8/29.6 V (25 °C), 2 h |
||
activation: battery voltage < 12.1/ 24.2 V | |||
|
|
||
| Deep discharge protection | A:11.4-11.9v/22.8-23.8v | ||
| state-of charge dependent | B:11.0-11.75v/22.0-23.5v | ||
| Voltage dependent | A:11.0/22v B:11.5/23v | ||
| Adaptive | 11.0-12.2v/22.0-24.4 | ||
| Reconnect level | 12.8/25.6v | ||
| Overvoltage protection | 15.5/31.0v | ||
| Undervoltage production | 10.5/21.0v | ||
|
Max panel voltage (overvoltage protection by varistor) |
30v in 12v system 50v in 24v system |
||
|
Temperature compensation Charge voltage |
-25mv/k at 12v -50mv/k at 24v |
||
| Own consumption | < 4mA | ||
| Grounding | Positive ground possible | ||
| Ambient temperature | -20 to +50 degree | ||
| Max height | 4000 m above sea level | ||
| Battery type | Lead acid(GEL,AGM,Flooded) | ||
| Wire cross section | up to 16 mm2 | ||
| Weight | 168 g | ||
| Dimension | 92x93x38 mm | ||
| Type of protection | IP 22 | ||
| |
|||
