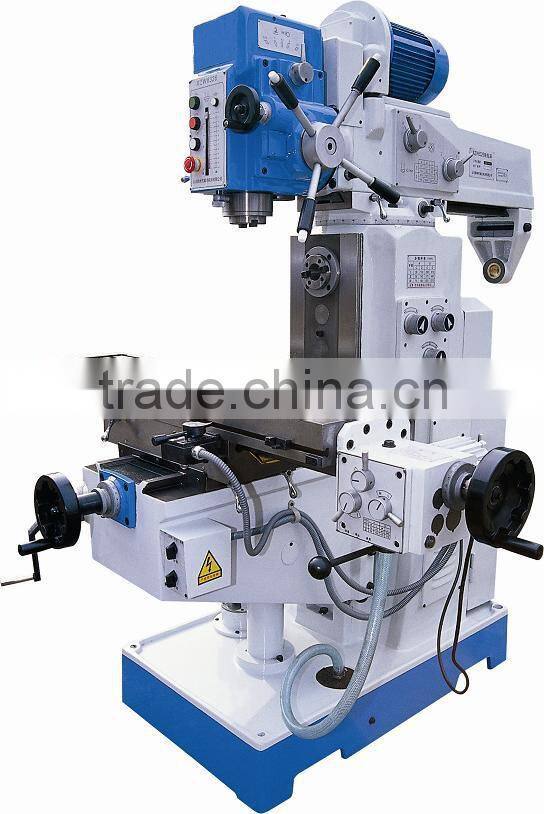

ISO, CE ,brand price X6326 Universal milling /drilling machine

FOB Price

USD $5,000 - $5,300 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	FINDMC	Model Number	X6326
Type	Universal	CNC or Not	Normal
Voltage	380V 50Hz	Power(W)	1.5/2.2 2.2 KW
Dimension(LWH)	158014502150 mm	Weight	1350 Kg
Certification	ISO9001:2008	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Milling and drilling machine details

Specifications	Units	XZ6326
Table size	mm	1120×260
Table travel	mm	600×300
Distance from spindle nose to table surface	mm	115-430
Max. drilling dia.	mm	50
Automatic drilling dia.	mm	14(cast iron)
Max. end milling width	mm	125
Max. vertical milling dia.	mm	25
Max. tapping dia.	mm	M16
Spindle speed range	rpm	67-2010(V)/38-1310(H)
Spindle travel	mm	120
Automatic spindle feeds	mm/rev	0.1 0.15 0.3
Overall dimension	mm	1580×1450×2150
Spindle motor power	KW	1.5/2.2 2.2
Machine weight	Kg	1350

N0.	Name	Model	Qty
1	Milling and drilling machine	XZ6326	1
2	Drill chuck	16	1
3	Mill chuck	ISO40	1sets
4	Vice	Q160	1
5	wrench	S21-24	1
6	Inner-haxagonal spanner	5	1
7	Wedge shifter		1
8	Reduction sleeve	ISO40/MT4 ISO40/MT3 ISO40/MT2	1
9	Vertical draw bar		1
10	Horizontal draw bar		1
11	Horizontal milling bar	32	1
12	Milling bar		2
13	Spindle arbor	ISO40/B18	1
14	Operation manual		1
15	Quality certificate		1
16	Packing list		1

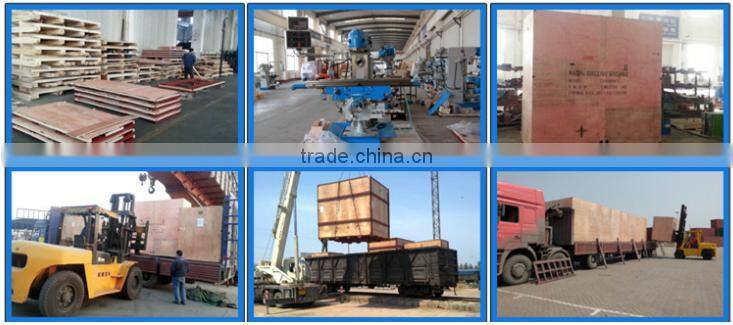

Milling and drilling machine XZ6326 Type of package: Plywood case

Milling and drilling machine XZ6326 Packing dimension:

160*152*222cm (one set in one case) N.W./G.W.: 1350/1500KG

220*152*222cm (two sets in one case) N.W./G.W.: 2700/2900KG

Suitable Container and quantity:

Standard 20' container: 3 sets Standard 40' container: 6 sets

Delivery time: 45-60days

Payment terms: TT30% down payment, TT70% before the delivery
