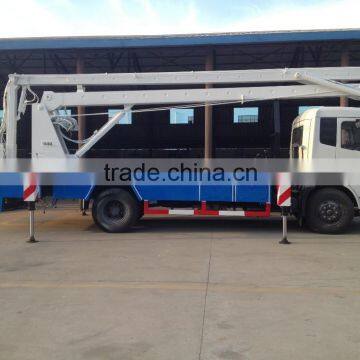

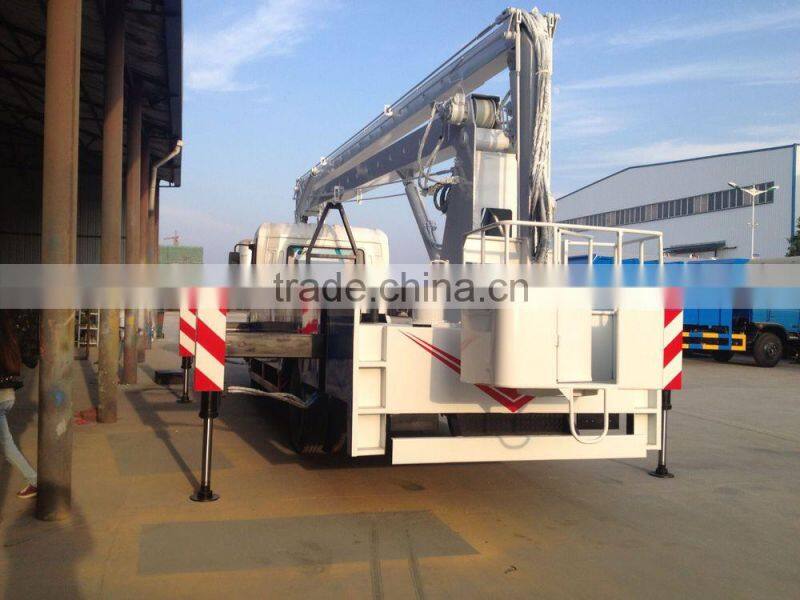

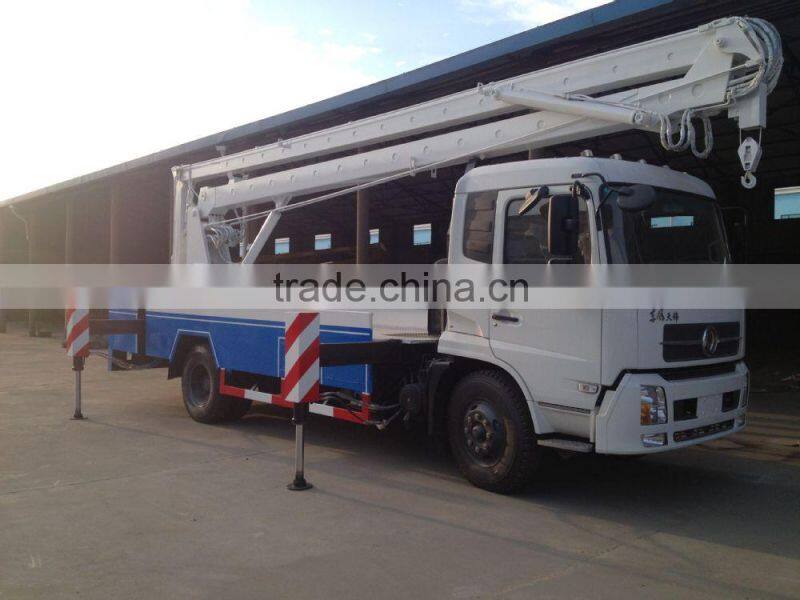

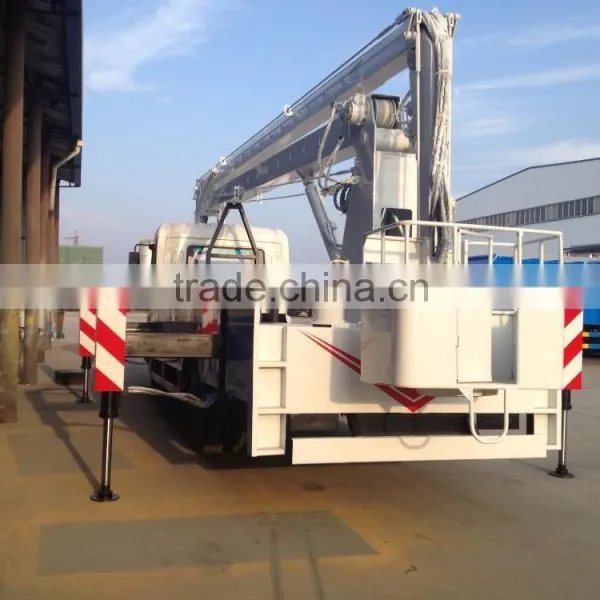

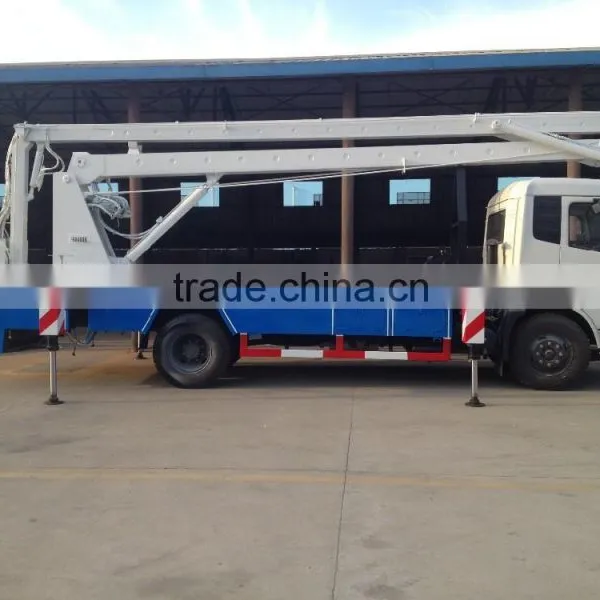

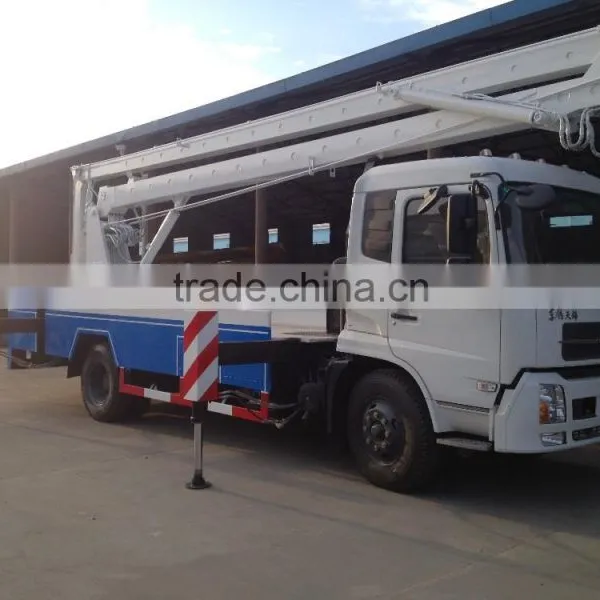

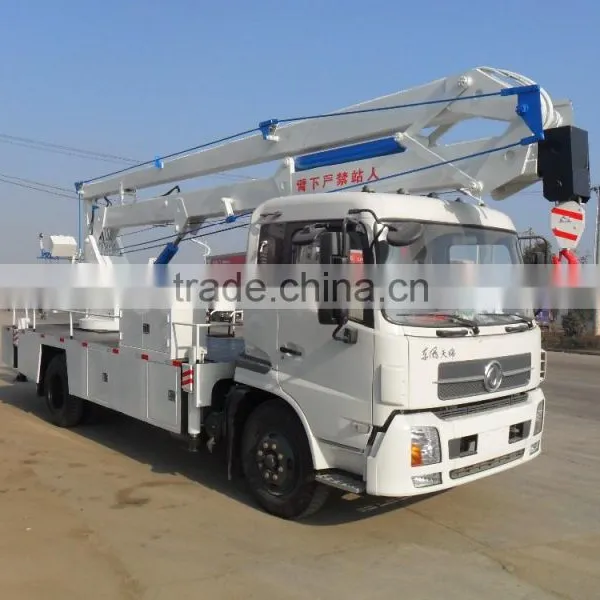

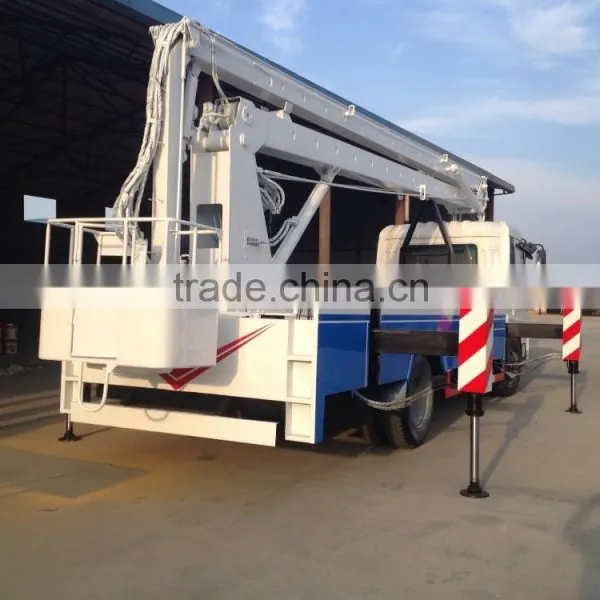

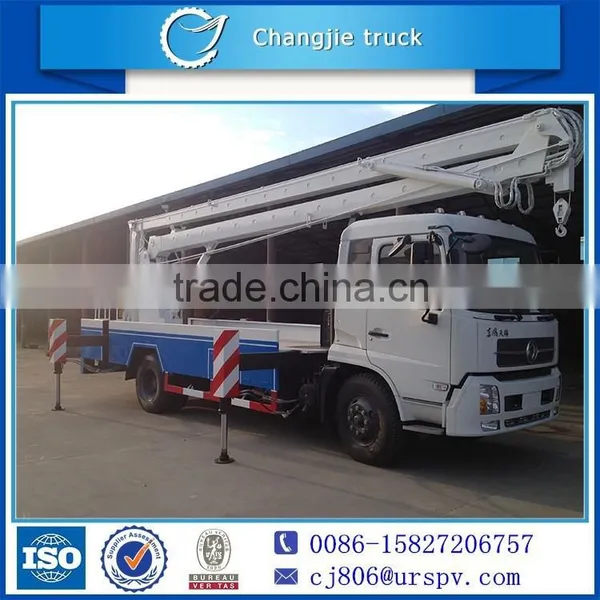

Dongfeng 16m hydraulic rising platform truck, hydraulic beam lifter |
Brief Introduction:
1.Aerial platform truck,also called high-platform operation truck,high-altitude operation truck,
High-platform operation truck aerial platform, lifting platform truck, truck mounted boom lifts,
cherry picker, electric platform truck,high-altitude,hydraulic rising platform truck, hydraulic aerial cage,
tail-lift truck, high altitude working truck.over head working truck etc.
2.It is mainly used for municipal engineering,municipal works,streetlight repair and maintenance,garden works,hotel
decoration,building engineering work,electric power works,factory,large exhibition hall etc.
3. The Chassis brand for high-altitude operation truck is Dongfeng,CNHTC,Auman,JMC,JAC etc.
4.Chose import exchange direction valve so that it is smooth and steady when it exchange direction.Overload protection, safety self-locking cylinder, the system set up overload valve, hydraulic exceed value, automatically uninstall.
5. Both upper and lower exchange platform can be operated.
6.arm shaft compact,flexible and large operating range.
7.Supporter shelf and arm interlock,safe and reliable,to prevent miss operate.
8.H type shelf which has large span and good stability.It can be stretch out and draw back both independent
and interaction.he legs are shown for job profile, light alarm signal is issued.
9.Operation platform automatic leveling,external rod forced balance.
10.1.5 tons litfing hook(stretch out and draw back range 800-1000mm)
Item |
unit |
parameter |
||
Vehicle model |
|
High-platform Operation Truck |
||
Chassis model |
|
EQ1042NJ20D3 |
||
Overall dimensions |
mm |
7400*1980*3110mm |
||
|
Fact height |
M |
10,12,14,16 |
|
|
Maximum operation radius |
6.0 |
||
|
Mass in working order
|
|
4498 |
|
|
Wheel base |
mm |
3300 |
|
|
F/R track base |
1500/1406 |
||
|
Approach/departure angle
|
|
23/15 |
|
|
Exhaust/hp
|
ml/ps |
3707/95 |
||
|
Max speed
|
km/h |
90 |
||
|
Tire specification
|
7.00-16 |
Engine type
|
SD4BW70-3R |
|
Traction system |
4*2 |
Transmission
|
5-speed with over drive |
|
|
Number of axles
|
3 |
Electric system
|
24v |
|
|
Operation control system
|
Electrically hydraulic control |
Allowable passengers in Cab
|
5 |
|
Engine |
SIDA Environmental Protection,supercharge,diesel engine EURO III
|
|||
Equipment |
Max operation height over10,12m,14m,16m,max operation radiusover6m,max working platform heightover12.5m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension:1100X570X1000mm,360°turning(left or right),4 H-shape legs. |
|||
| Our customers: |
