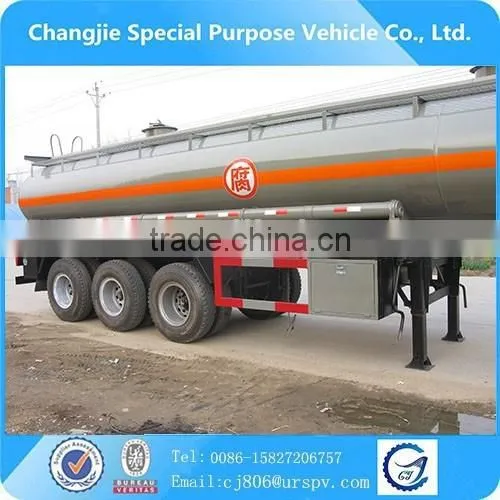

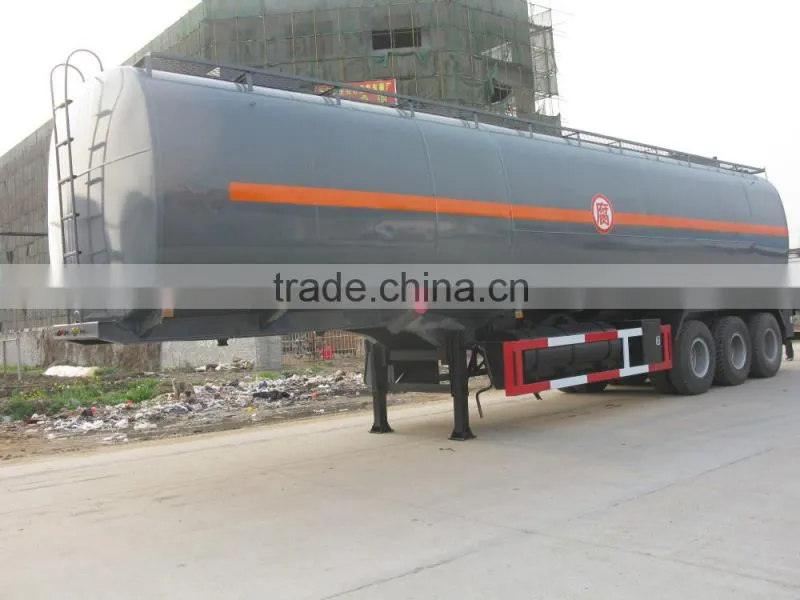

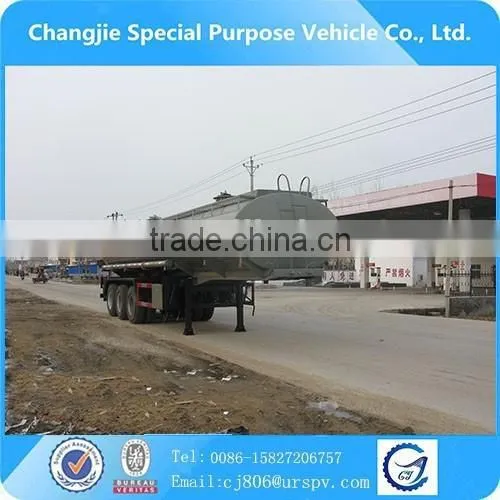

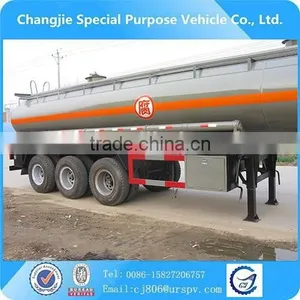

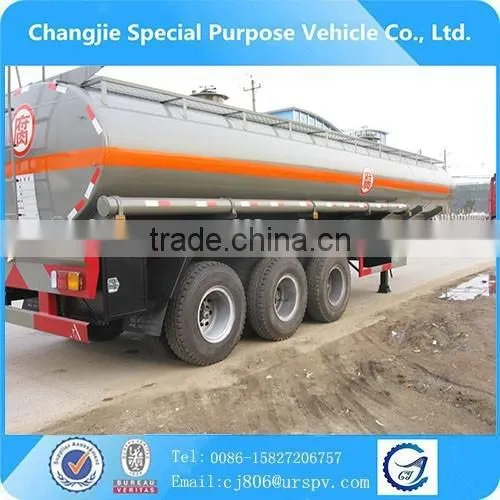

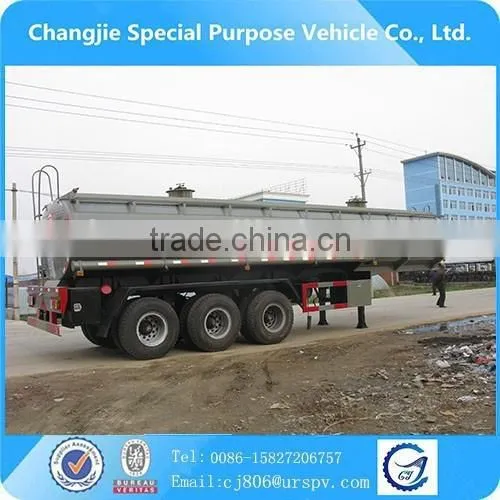

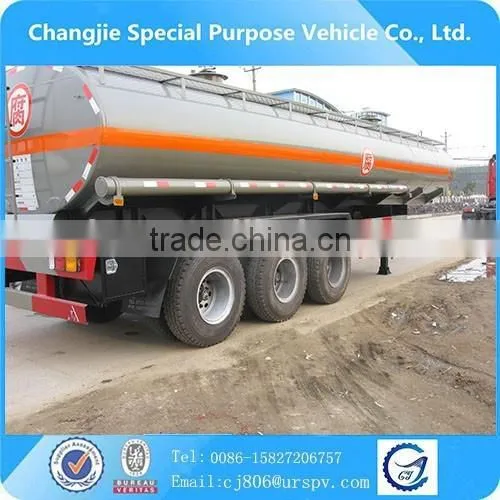

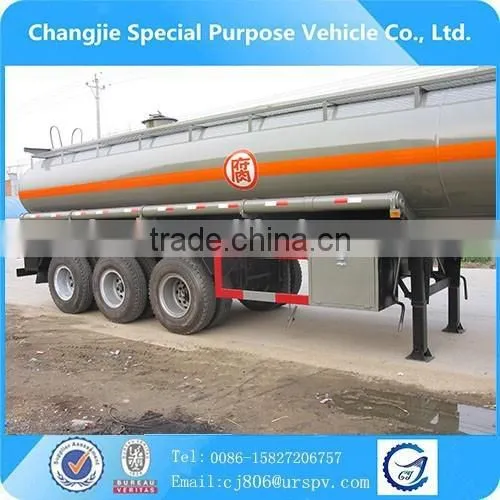

High safety sulfuric acid Liquid fuel Tank truck machinery
Brief Introduction:
1. Mainly used for loading and unloading of acid, alkali, salt and other corrosive, medium risk.
2. Chemical liquid truck tanks have all plastic cans, carbon steel lined with plastic cans.
3. Using polyethylene with large rolling machines in whole molding production at a time, with no
seams, no leakage, non-toxic, anti-aging, impact resistance, corrosion resistance, long service life
etc., is a safe
and efficient corrosion transportation equipment.
4. Chemical car tanks often use carbon steel lined with plastic or stainless steel, aluminum cans
and other materials.
5.Chemical car is composed of special tanks , chemical liquid truck tanks, chemical pump etc.
| Specification: |
Trailer name |
Fuel tanker semi trailer |
Delivery time |
15 workdays after received your payment in advance |
Rated loading capacity(T) |
50 |
Body total weight (T) |
12.8 |
Outside size(L*W*H) |
11980*2496*3500mm |
Body thickness |
5mm |
Tanker capacity |
45m3 |
Seal head thickness |
6mm |
Wheel base |
5330+1310+1310 |
Steel spring number |
10/10/10 |
Axle |
3axle fuwa/hj/bpw |
King pin |
50# |
Discharge hole |
2 pieces x3 inch |
Tyre specification |
12.00R22.5(triangle vacunnm tire) 12 pieces |
Rim |
9.00-22.5 zhengxing brand |
Chamber |
Four double and two single chambers |
Landing gear |
28T JOSTD200 |
Tire carrier |
Two pieces |
Tool box |
One |
Certificate |
CCC ISO9001:2000 |
Remark: |
1, tanks plank selection: carbon steel lined with plastic or stainless steel plate
2, tanks shape: oval, square shape, round
3, chemical pump: we adopts special chemical liquid pump with high quality.
4, can be used for packing different chemicals liquid,independent or in the warehouse.
5, set inside the multichannel all plastic wave plate, through high pressure gas sealing detection,
high intensity of tank, the center of gravity, the vehicle carrying safety smoothly.
Product advantages:
1.High quality stainless steel plate Q345R/Q370R,the thickness is about 13-16mm,,wear-resisting,
withstand voltage and resistance to corrosion.
2.Mature steady seamless welding technology,once-forming tank,beautiful,practical and quality assured.
3.The production process of tank trough high water pressure,high atmospheric pressure,detecting room,
stewing stove etc comprehensive test,to ensure that no water leakage,no light leakage ,no air leakage
and no deflection. Security,solid and sealing well.
4.More than 14 years’ export experience, our tanks spread all over the world.CNPC,SINOPEC, Nigeria,
Russia,Vietnam,Arabic etc.
Certificate:

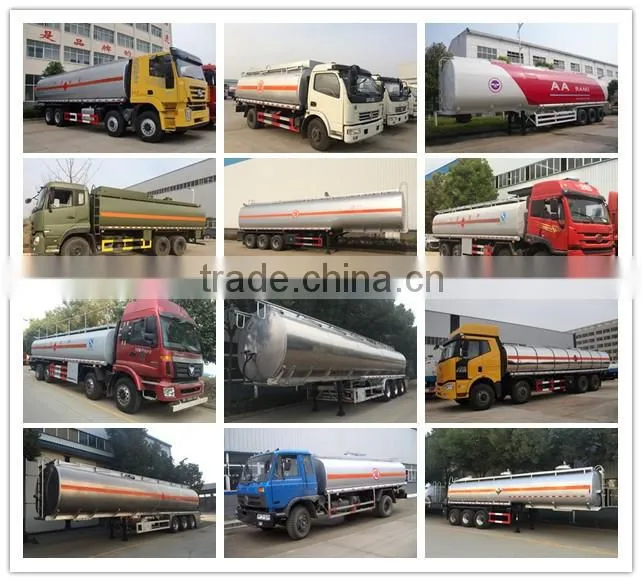

| Related products: |

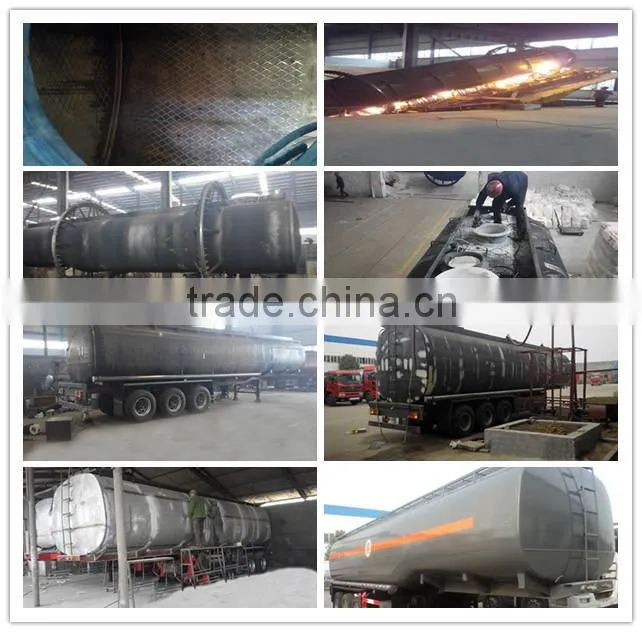

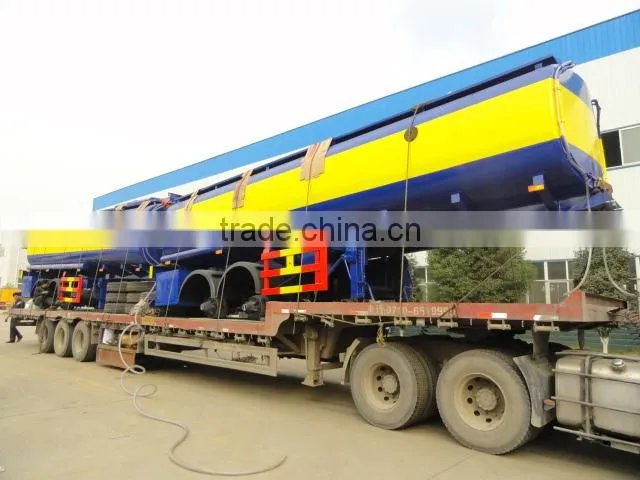

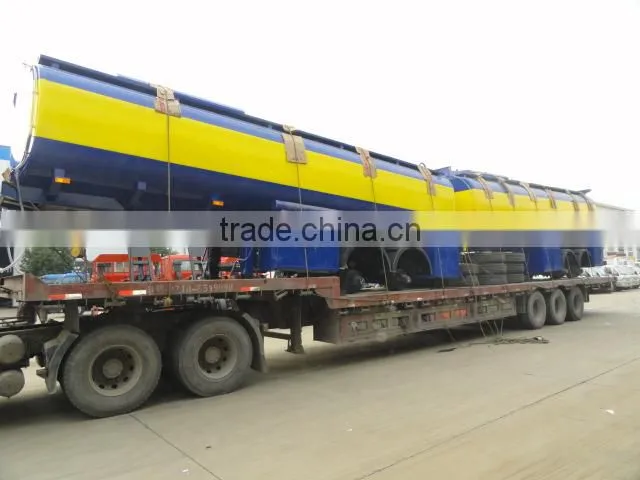

| Export tanks and Delivery: |
The intermiscibility of Liquied dangerous goods and tank
|
tank material liquid |
Carbon steel |
stainless steel |
Aluminum , Aluminum Alloy |
The glass fiber plastic |
||
Gasoline |
good |
excellent |
excellent |
excellent |
||
petroleum |
good |
good |
good |
good |
||
Methyl alcohol |
good |
excellent |
excellent |
ok |
||
Ethyl alcohol |
excellent |
good |
good |
good |
||
Liquid paraffin |
good |
excellent |
good |
good |
||
Styrene |
excellent |
excellent |
excellent |
good |
||
Nitric acid |
No |
excellent |
No |
No |
||
|
Sulfuric acid |
<65 |
No |
No |
good |
good |
lining four fluorine pump,Stainless steel pump |
6~70 |
ok |
No |
No |
good |
||
70~100 |
ok |
ok |
No |
available within 50 degrees Temp. |
||
|
Hydrochloric acid |
No |
No |
No |
good |
||
|
Ammonium hydroxide |
good |
excellent |
excellent |
good |
||
|
Liquid caustic soda |
Q235 low liquid alkali |
High liquid alkali |
|
|||
| Our customers: |

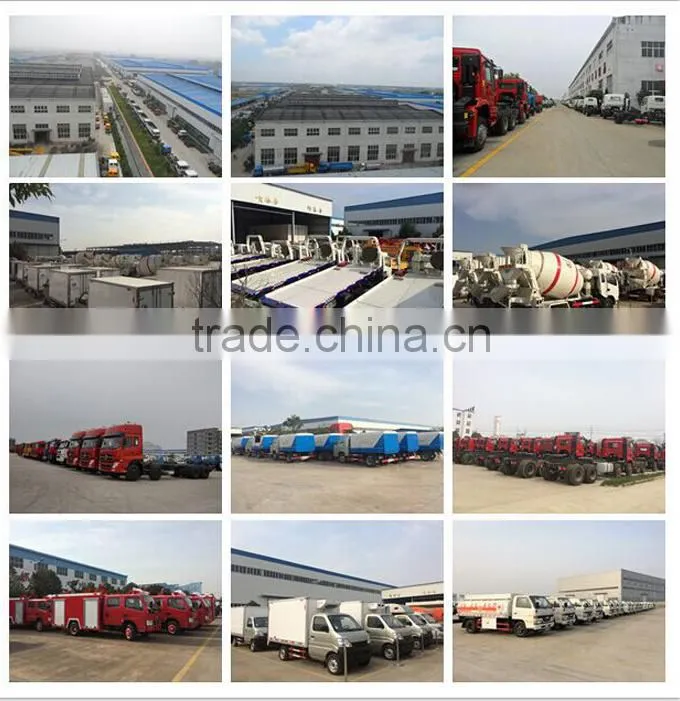

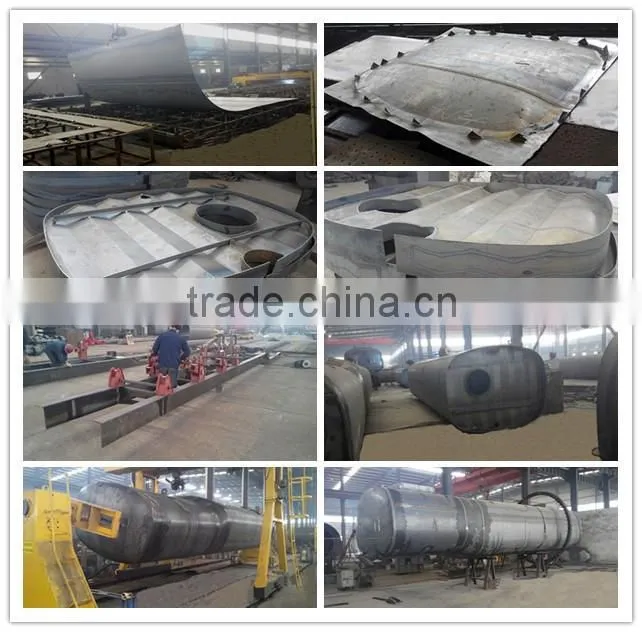

Our factory:
Hubei Changjie Special Purpose Vehicle Co,.Ltd is one of the special automobile manufacturing
enterprise in China which has the ability of independent research. And our leading business includes
more than 500 types of trucks, such as water truck, pesticide spraying truck, aerial platform truck,
sewage suction truck, high-pressure cleaning truck, road sweeper truck, dirty-suction truck, fire truck,
multifunctiona fire sprinkler, concrete mixer truck, bulk cement truck, asphalt distribution truck, truck with
crane,dump truck, compress garbage truck, garbage truck, fuel tanker, liquid tanker truck, chemical
liquid truck, LPG tanker truck, refrigerator truck, LED truck, school bus, learner-driven vehicle, semi-trailer
and so on.
| Our promise: |
- The tanker trailer is guaranteed for one year.
- Overseas service is available if needed.
- Any problems can be solved within 24hrs.
| Contact: |
Grace Kwok
Export Sales Manager
Hubei Changjie Special Automobile Co.,Ltd
Web: /
Tel:86-027-65383373 / 86-15827206757
