IR 10M and Day/Night HD 4 Channel 1.0MP Dome AHD Kit
- 1000 Kilohertz per Month
- ShenZhen port
- Credit Card PayPal
- Fire prevention thermal imaging camera temperature measurement fire alarm forestry warehouse fire prevention
- Port airport radar UAV detector monitoring PTZ scanning detection UAV ship OEM customization
- Multi-spectral thermal imaging pinion rotating table with medium load optional custom camera rotating table
- Multi-function, high clarity search night vision infrared observation thermal image
- HGH infrared circumferential Sweep with dual spectral detection panoramic imaging perimeter intrusion infrared detection system
- Automatic video tracking UAV three-axis gyroscopic image stabilization PTZ monitoring system photoelectric turntable
Product Details
Place of Origin: | Guangdong, China | Brand Name: | UNITOPTEK | Model Number: | A04LM+BC43172 |
Product Description

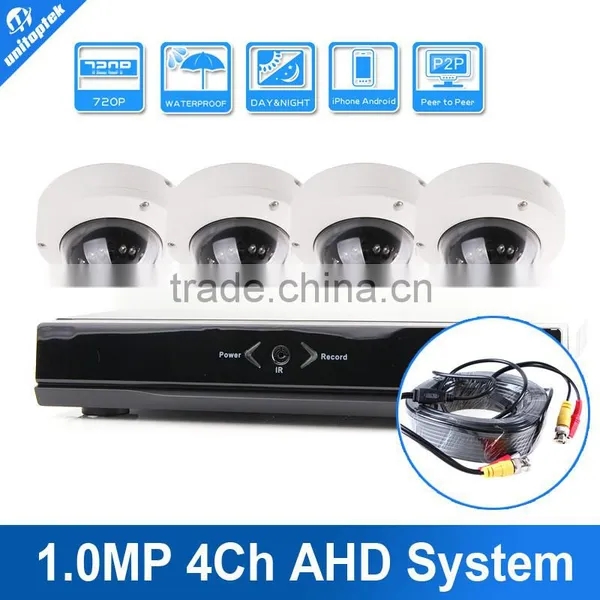

IR 10M and Day/Night HD 4 Channel 1.0MP Dome AHD Kit
4CH AHD DVR Features:
1, HD iDVR Three in one: combines the function of DVR/HVR/NVR together, multi-mode input, support 4ch AHDM/AHDL OR 2ch AHDM+2ch 720p or4ch 720p
2,step on the internet:can penetrate through all kinds of network via cloud service, to do remote control easily&conveniently without any complicate setting.
3, Compression algorithm ideal:Compression algorithm upgraded to H.264 main profile,the advance space-time filter technique make the code stream lower at least 30% .
4, playback quality:real-time coding synchronously, real-time multi-channel playback synchronously.,4CH support 4CH 12fps playback at same time
5, Main and Sub Stream:support main stream and extra steam encode synchronously.Main stream is for local storage to maintain the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
6, Mobile monitor:support all kinds of mobile monitor (iPhone, Android)
7, Display: support VGA&HDMI output synchronously which support 1080P hd output, make the traditional monitor display effect upside down.
8,Operation interface:similar WINDOWS operating style,powerful right button menu function of mouse, make it easy for using.
9, Network:Powerful net service(support DHCP,PPPOE,FTP, DNS,DDNS,NTP,UPNP, EMAILl,IP , etc), complete enclosure(WEB,CMS,SDK),to easily achieve interconnection.
10, Browsers:Support multi-browser(IE,Chrome,Firefox,Safari.
11, Remote Access:Self enclosed with DNS function (ARSP),one-key to enable remote control, and support DNS of 3322,dyndns,oray,myq-see, etc.
12, Others:Completed protective circuit, unique treble watchdog function, make device never crashed; special “black-box” technology to monitor the device process, greatly reduce the maintenance cost.
13, Support smartphone IOS / Android view
14,Support P2P Cloud function:
15,4CH with total 100fps(PAL)/120fps(NTSC) support 4CH AHDM(720P)@25fps,4CH AHDL(960H)@25fps

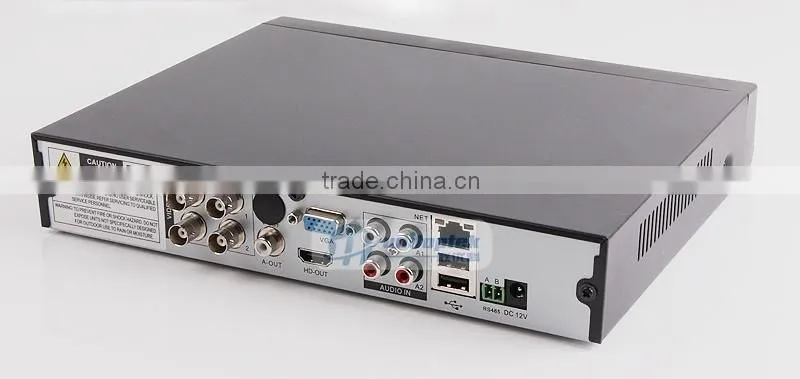

4CH AHD DVR:
| Model | 04LM |
Menu display | 1/4 screen |
|
Video | Video Standards | PAL(625 line,50 f/s);NTSC(525 line,60 f/s) |
Surveillance quality | PAL,D1(704×576),NTSC,D1(704X480) |
|
Code ability | 100/120 4CH AHDM@25fps,4ch 960H(AHDL)@25fps |
|
Motion Detection | Zones:396(22*18)detection zones,many levels of Sensitivity setting |
|
Record & | Recording Mode | Manual-Alarm Dynamic Detection Timing |
Playback | ||
Playback | One channel or multi-channel playback (4 channel max synchronized playback) | 12fps palyback |
Search Mode | Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
|
Storage | Space Occupation | Video:960H(AHDL):30G/DAY/CH , AHDM(720P):40G/DAY/CH, 1080P:80G/DAY/CH Audio:691.2MB/DAY/CH |
Backup | ||
Video storage | Hard disk,and net |
|
Backup Mode | Network burn, mobile Hard disk and USB burn |
|

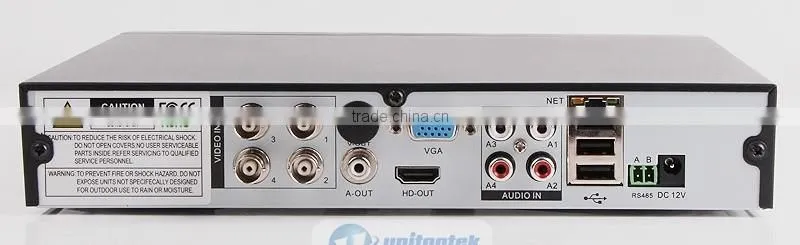

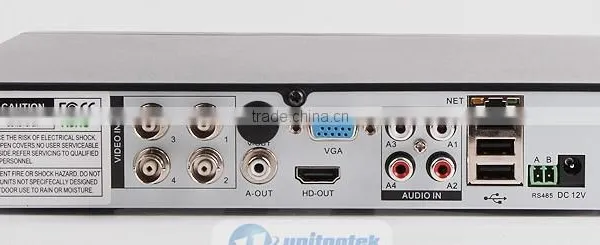

Interface | Video Input | 4channel, BNC, 1.0Vp-p.75 |
Video Output | 1channe VGA, HDMI |
|
Audio Input | 4channe RCA |
|
Audio Output | 1channe RCA |
|
Hybrid Mode | 2*AHDM+2*720P(NVR) |
|
Only dvr | 4*AHDM OR 4*AHDL(960H) |
|
Only nvr | 4*720P OR 2*1080P |
|
Alarm output | NO |
|
Net Interface | RJ-45 (10M/100M) |
|
PTZ Control | RS485 |
|
USB Interface | 2*USB |
|
Hard Disk | 1 SATA ports (max 4TB) |
|
Other | Power Supply | 12V/2A |
Dimension | Packing:330X310X75mm(W*D*H) | Only dvr:260*226*43mm(W*D*H) |
Weight | Packing:1.25kg(NOT WITH HDD) | only dvr:0.8kg |

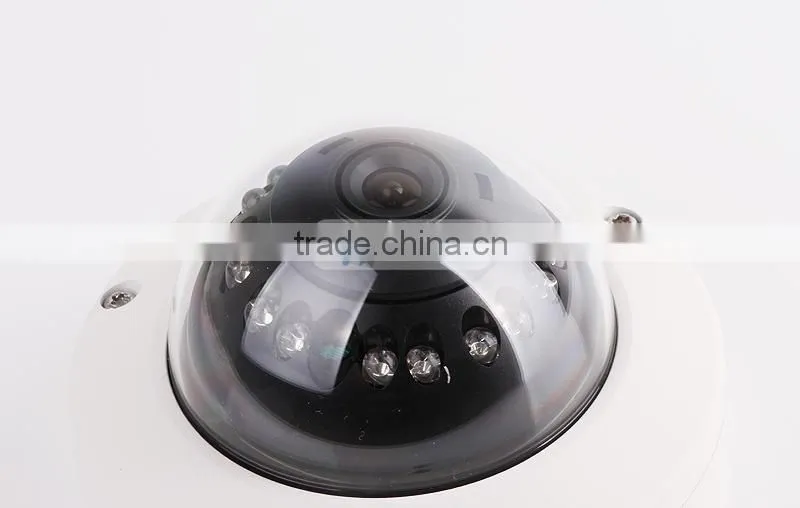

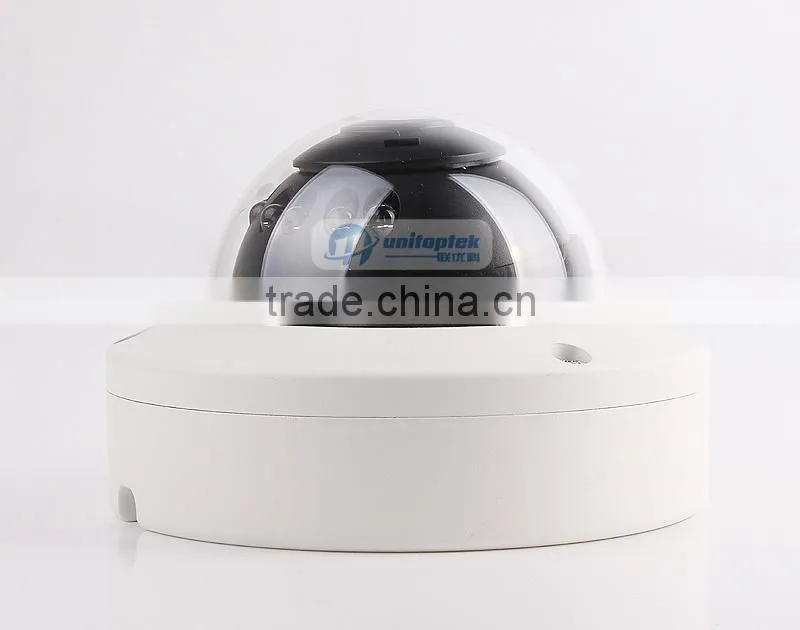

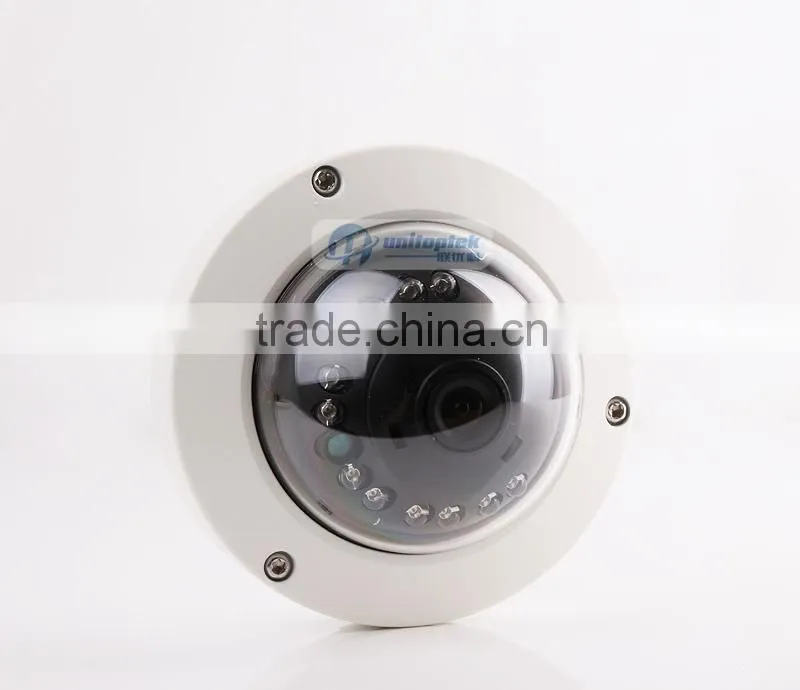

AHD Camera Features:
1. Waterproof dome Camera
2. Lens:Board Lens 3.6mm/F2.0
3. IR LED: 12pcs IR LED
4. IR Range:10M
AHD Camera Specification :
Resolution | 1.0 Mega Pixel 720P |
Camera type | High performance HD -AHD Camera |
Image Sensor | 1/4" OV9712 with Nextchip2431 |
Effective Pixel | PAL : 1280*720@25fps NTSC : 1280*720@25fps |
Signal System | PAL/NTSC |
Video Standard | AHD |
Video Output | 1CH AHD HD |
Max Transmission Distance | Common 75-3lines can be up to 500m |
Lens size | Board Lens 3.6mm/F2.0 |
Minimum Illumination | 0LUX/F1.2(Led on) |
IR-CUT | Auto switch |
LED | 12pcs IR LED |
IR Distance | 10m |
Shutter Speed | 1/53~1/100000s |
BLC | Auto |
White Balance | Auto White Balance |
HLC | Support |
Operation Temperature | -10°C~55°C |
Power Supply | DC12V |

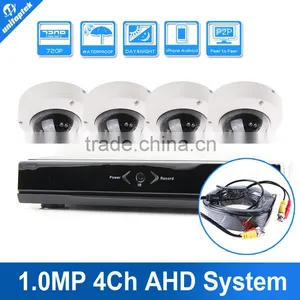

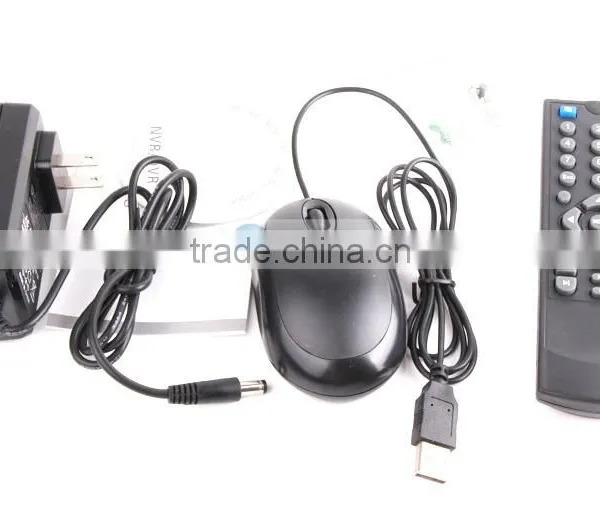

1 x 4CH ADM/AHDL DVR

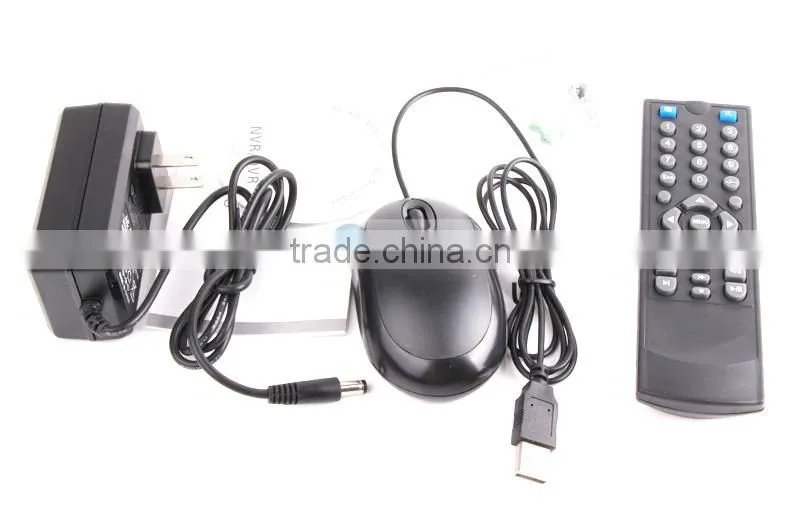

1 x Remote Controller
1 x USB Mouse
1 x Installation CD Rom&User Maunal
1 x Power supply DC 12V for dvr
4 x 720p dome ahd camera with Screws
1 x 12v 5a dc power suply with 1 to 4 Splitter Power Cable

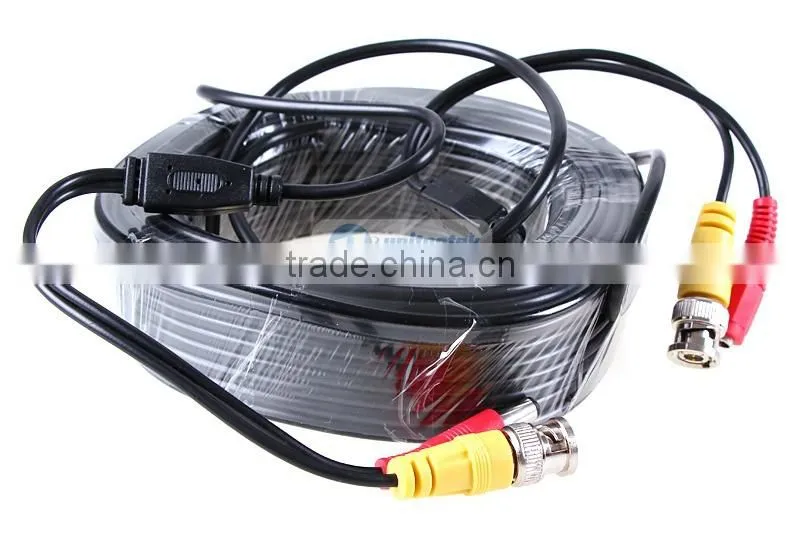

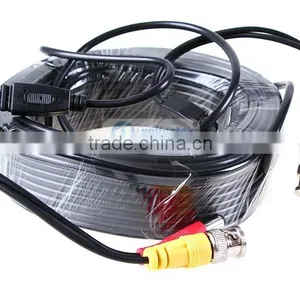

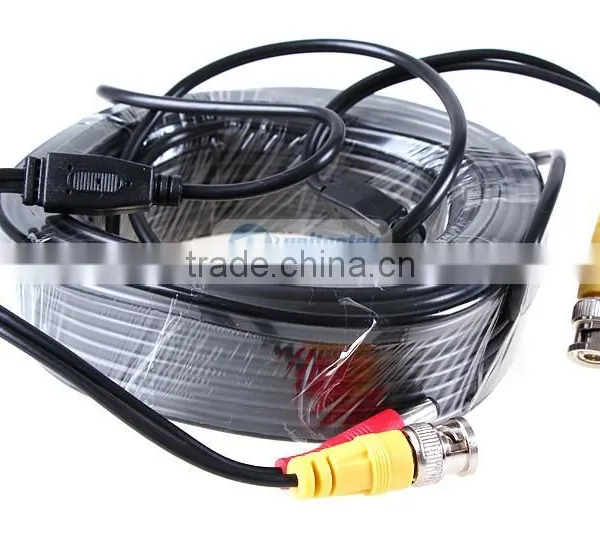

4 x 20m cable
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
FOB Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
