8CH 2.0MP AHD HD CCTV Security 1080P Dome Output AHD Camera DVR System Kit HDMI&VGA Remote View+8PCS Outdoor IR 10M AHD Camera

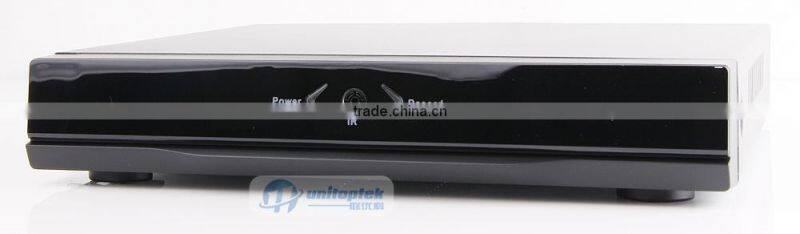

Model

6008T-MH

Main processor

HI3531

Menu display

1/4/8/9 screen

Video

Video Standards

PAL(625 line,50 f/s);NTSC(525 line,60 f/s)

Surveillance quality

PAL,D1(704×576),NTSC,D1(704X480)

Code ability

8CH AHDH(1080P)/15fps OR 8CH AHDM(720P)@25fps,4ch AHDL(960H)@25fps

Motion Detection

Zones:396(22*18)detection zones,many levels of Sensitivity setting

Record &

Recording Mode

Manual-Alarm Dynamic Detection Timing

Playback

Playback

One channel or multi-channel playback (4 channel max synchronized playback)

 4CH AHDH(1080P)/15fps;AHDM(720P)/25fps palyback

Search Mode

Time/Date,Alarm,Motion Detection & exact search(accurate to second)

Storage

Space Occupation

Video:960H(AHDL):30G/DAY/CH , AHDM(720P):40G/DAY/CH, 1080P:80G/DAY/CH

Audio:691.2MB/DAY/CH

Backup

Video storage

Hard disk,and net

Backup Mode

Network burn, mobile Hard disk and USB burn

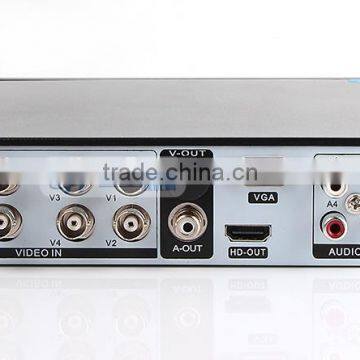

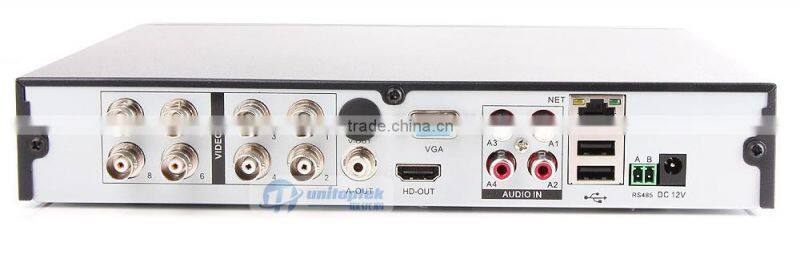

Interface

Video Input

8channel, BNC, 1.0Vp-p.75

Video Output

1channe VGA, HDMI

Audio Input

4channe RCA

Audio Output

1channe RCA

Hybrid Mode

2*AHDH+2*1080P or 8*AHDM+8*720P

Only dvr

8ch AHD(1080P)/AHDM(720P) / AHDL(960h)

Only nvr

1ch1080p+8ch 720p or 4ch 1080p

Alarm output

NO

Net Interface

RJ-45 (10M/100M)

PTZ Control

RS485

USB Interface

2*USB

Hard Disk

1 SATA ports (max 4TB)

Other

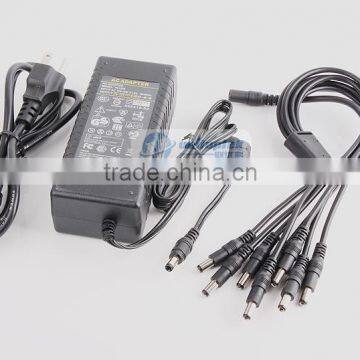

Power Supply

12V/2A

Dimension

Packing:345X285X75mm(W*D*H)

 Only dvr:255*235*43mm(W*D*H)

Weight

Packing:1.35kg(NOT WITH HDD)

 Only dvr:0.95kg

Resolution

2.0 Mega Pixel 1080P

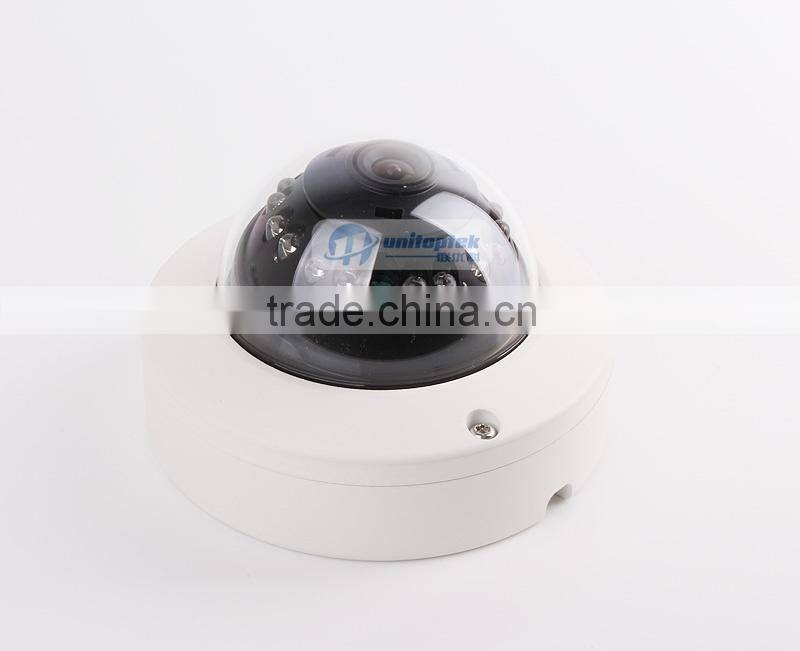

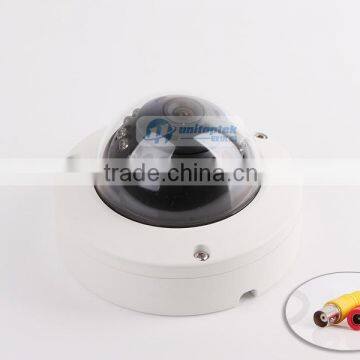

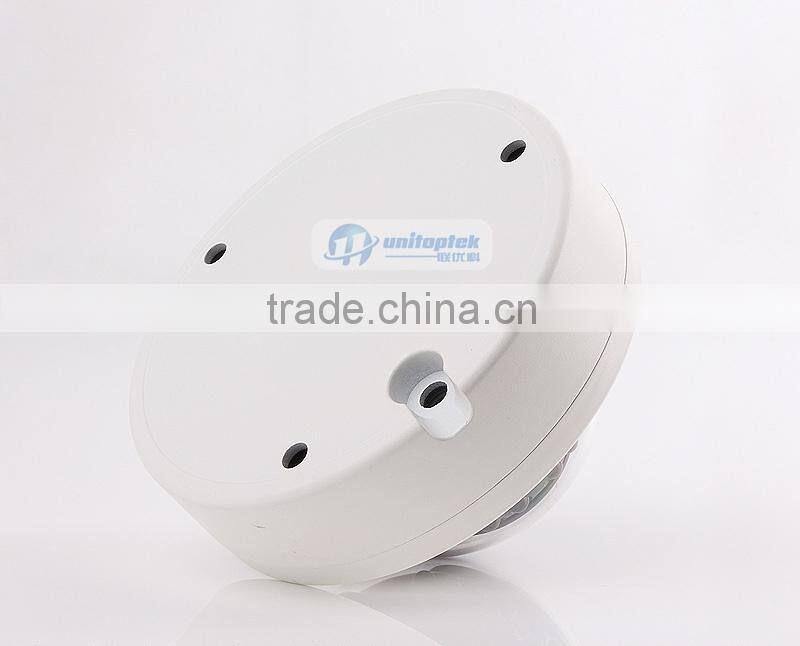

Camera type

High performance

HD -AHD Camera

Image Sensor

1/3" IMX322+NVP2441H

Effective Pixel

PAL :  1920*1080@25fps

NTSC : 1920*1080@30fps

Signal System

PAL/NTSC

Video Standard

AHD

Video Output

1CH AHD HD

Max Transmission Distance

Common 75-3lines can be up to 500m

Lens size

Board Lens 3.6mm/F2.0

Minimum Illumination

0LUX/F1.2(Led on)

IR-CUT

Auto switch

LED

12pcs IR LED

IR Distance

10m

Shutter Speed

1/53~1/100000s

BLC

Auto

White Balance

Auto White Balance

HLC

Support

Operation Temperature

-10°C~55°C

Power Supply

DC12V

Size(diameter*high)

95*65mm

weight

0.35kg

Housing Material

Metal
