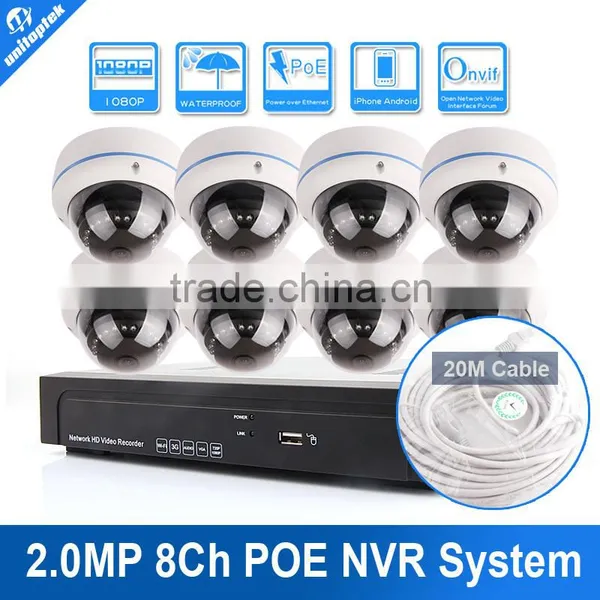

8Ch CCTV Camera Systems With 8PCS Dome P2P IP Cameras And 8ch NVR Supports PC&Mobile View

Model

8EP

System

Operating system

Linux

Screen display

1ch/ 4ch/ 8ch display

Video

Code capacity

1080P/ 960P/ 720P/ 960H/ D1/ HD1/ CIF/ QCIF

Preview capability

8ch 1080P or 8ch 960P or 8ch 720P

Each screen can be set to 192 (16×12) of detection regions;

support multi-level sensitivity

Video playback

Recording

Manual> Alarm> Motion Detection> Schedule

Playback

1ch 1080P/ 4ch 720P / 4ch 960P

Video search

Time search, calendar search, event search, channel retrieval

Storage

Space

720P:40G/day/channel;

1080P:80G/day/channel

Storage

Local HDD, Network

Backup

Support Flash Drive, USB mobile HDD, USB DVD-RW.

network storage and backup

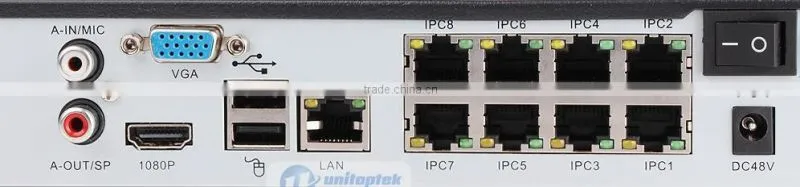

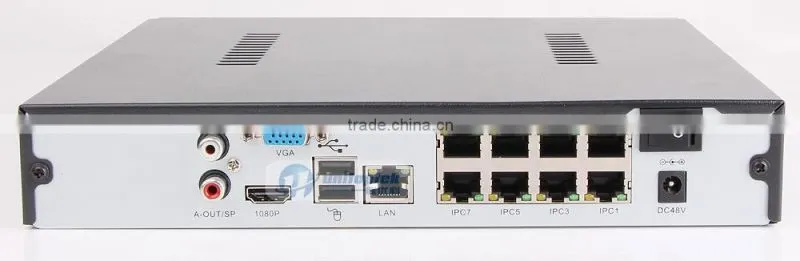

Interface

Video in

8x 1080P(2.0MP) IP Camera
or 8x 960P(1.3MP) IP Camera
or 8x 720P(1.0MP) IP Camera

Video out

1ch VGA, 1ch HDMI(1920x1080)

Audio in

1x RCA

Audio out

1x RCA

Alarm in

NO

Alarm out

NO

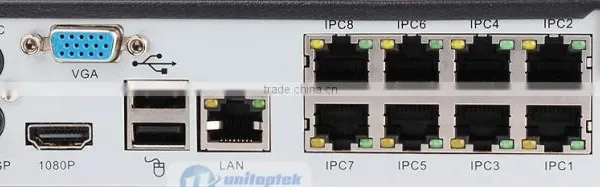

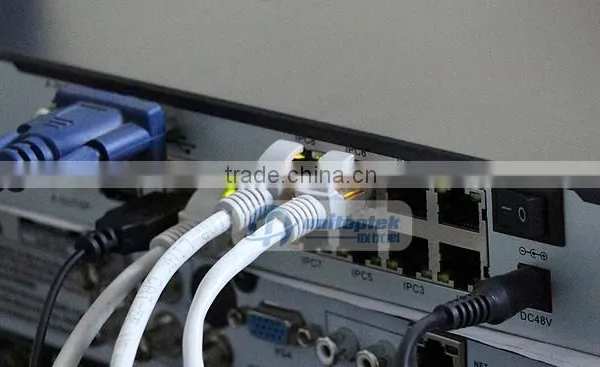

Ethernet

8x RJ-45 interface, for POE(Power over ethernet)

1x RJ-45 interface, for internet (10M/100M/1000M)

PTZ

Not support

USB

3x USB 2.0

HDD

Support 1x SATA Hard Disk (max to 4TB)

Other

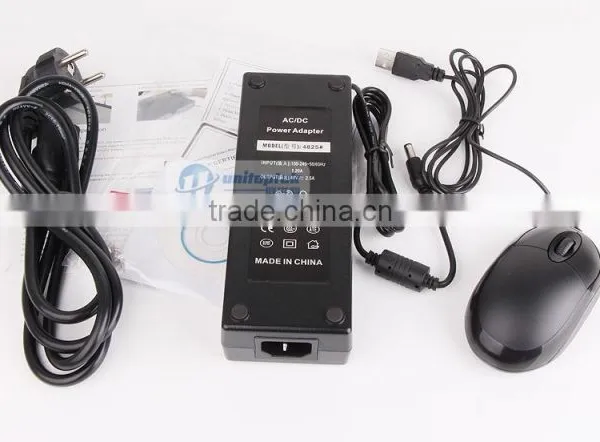

Power supply

DC48V2A (support 8pcs 80-100meters RJ45Cable)

Power Consumption

<115W (without HDD)

Size

Equipment:260mmx220mmx43mm, Packing:355mmx255mmx88.5mm

Weight

Net:1.6kg, Include package:2.5kg (not include HDD)

10 pcs/carton. 525mmx455mmx365mm; Weight:27 Kg

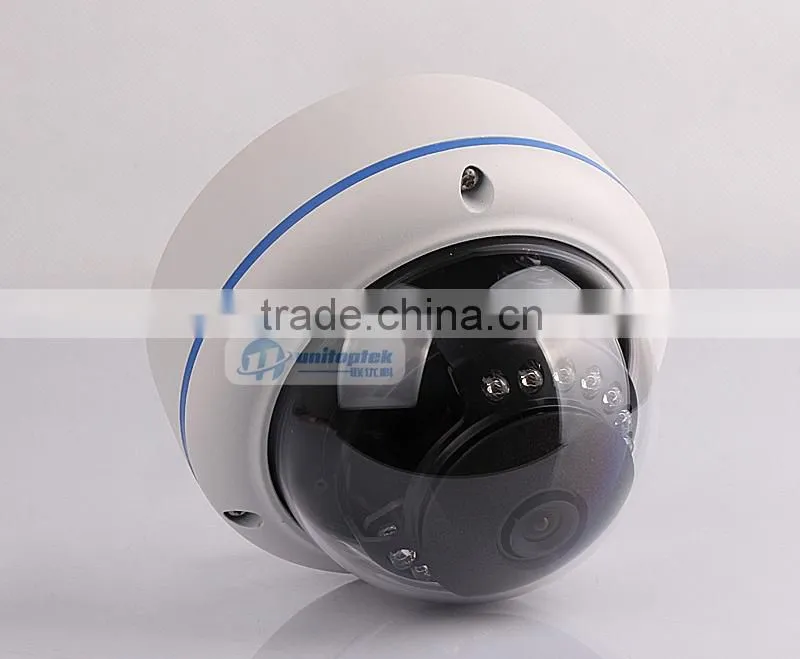

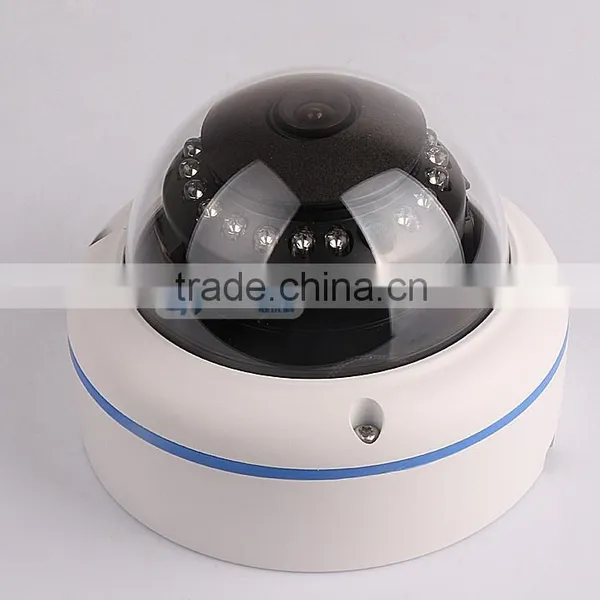

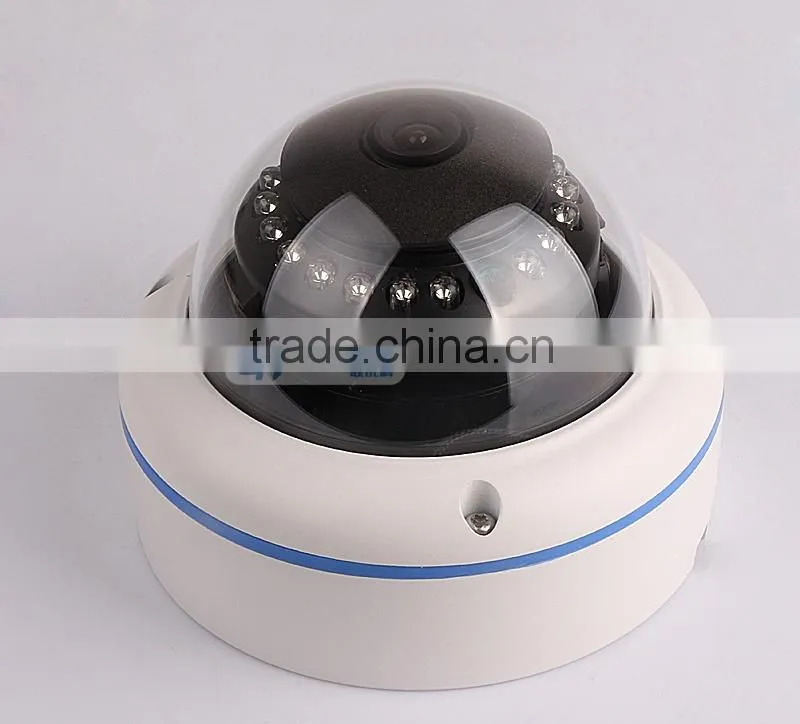

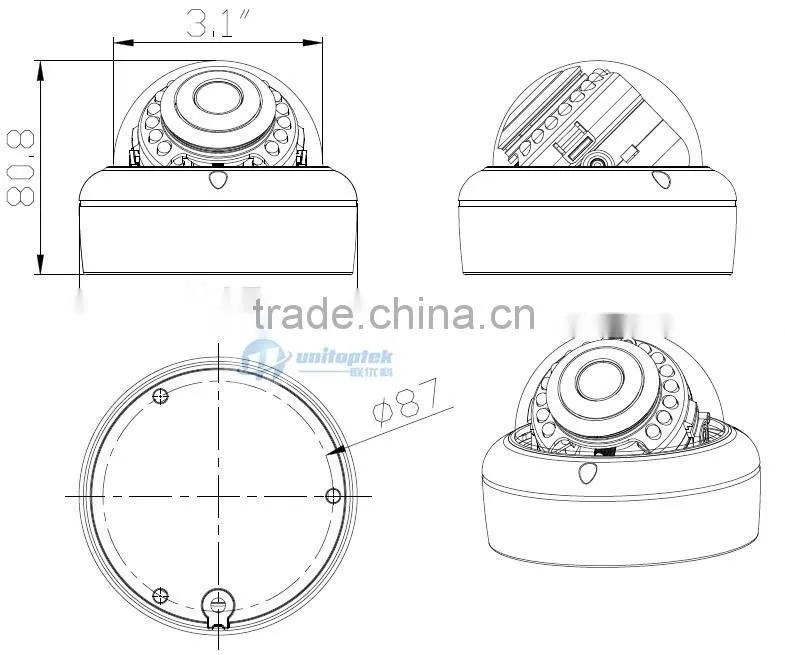

Model

                                IPCX-BC28301080-P

System Structure

Embedded RTOS,dual-core 32bit DSP(Hi3516C),pure hard compression,watch dog

image sensor

1/2.8" IMX222 CMOS,support IR-CUT, support photo resistance signal linkage, CS lens;color 0.01Lux @ F1.2,black/white: 0.001Lux @ F1.2

Video compression

H.264,support dual-stream,AVI;0.1M~6Mpbs variable;1~30f/s variable;

Image output

main stream: 1920*1080;sub-stream:704*576(1080p)

network interface

1*RJ45 10/100M;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc;

photo resistance

one photo resistance interface,support photo resistance signal links to IR-CUT

Features

Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, MJPEG capture;united remote client monitoring sofaware,MYEYE;perfect SDK;

ONVIF

support

mobile monitoring

support multiple mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)

Other functions

DC12V,3W(consumption),38mm*38mm;

Notes

Support POE(optional),B1-type tail-line(without BNC interface)

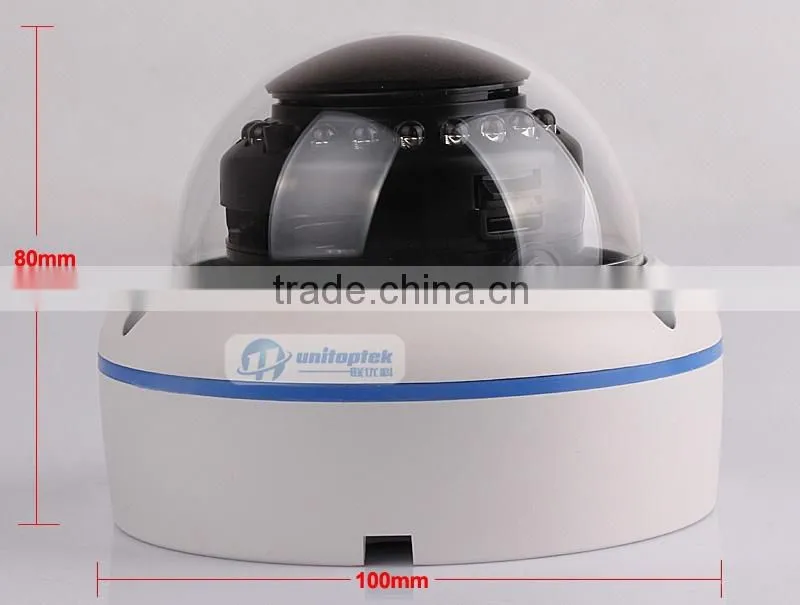

Case

Metal,Not Waterproof,Indoor Use,Vandal-proof

POE Port

Yes

P2P Cloud

Support

Lens

3.6mm (2.8mmm/6mm optional)

Support NVR

YES
