8 pcs HDTVI Camera Kit Include 8Pcs 2.0MP outdoor Dome TVI Camera 8CH 1080P HD-TVI DVR Support P2P View Quality Choice

Name: 8 pcs HDTVI Camera Kit Include 8Pcs 2.0MP outdoor Dome TVI Camera 8CH 1080P HD-TVI DVR Support P2P View Quality Choice
Brand: UNITOPTEK
Price: USD $460 - 490 / Set

FOB Price

USD $460 - $490 / Set

1 Set(Min.Order)

Supply Ability 1000 Kilohertz per Month
Port ShenZhen port
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

UNITOPTEK

Model Number:

R5208+BC3311080

Product Description

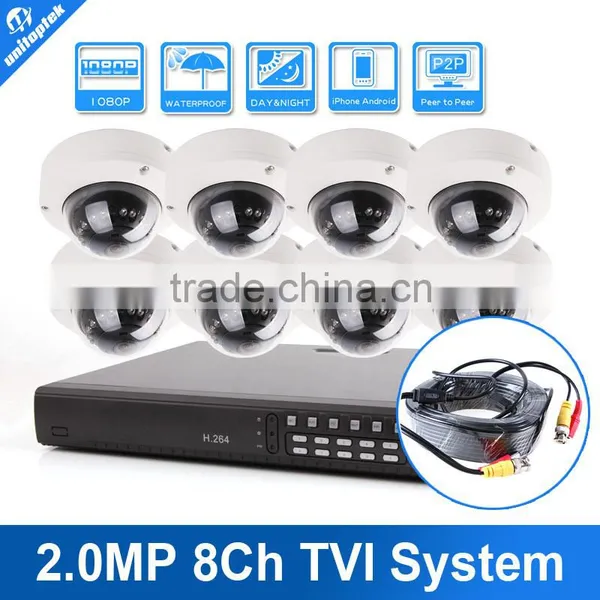

8 pcs HDTVI Camera Kit Include 8Pcs 2.0MP outdoor Dome TVI Camera 8CH 1080P HD-TVI DVR Support P2P View

Product Description

8CH TVI DVR Features:

8 Channel 720P/1080P HD-TVI DVR
Preview 720P 25/30fps; 1080P 25/30fps
Recording&Palyback 720P 25/30fps; 1080P 15fps

2× HDD(max 4TB)

1ch audio input;1ch audio output
1ch VGA output, 1ch HDMI output

Support RS485

Support free ddns: ;plug-play, P2P

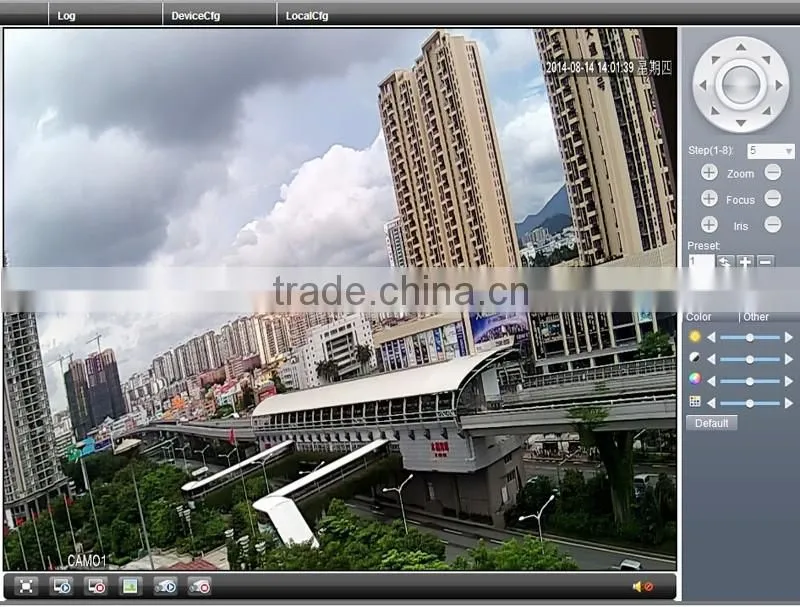

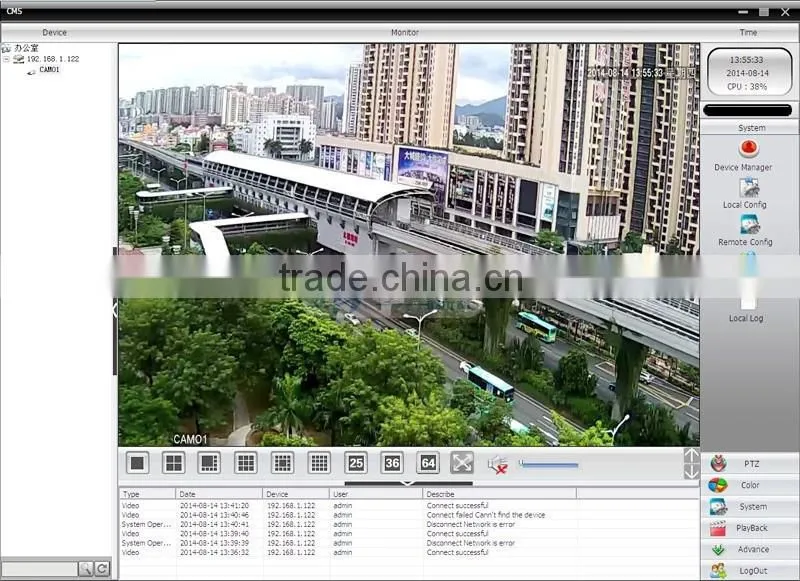

Support smart CMS;smart mobile phone view (android, iphone,etc ,)

Support up to 500M over-coaxial -cable tansmission distance; easily installation with old connection system, and save cost.

Support mobile view app: eseenet

Are Compatible with TVI products.

8CH TVI DVR Specification:

Model	Model No.	R5208-TVI
System	Main Processor	HI3521
	Operating System	Embedded LINUX
Video Parameters	Input channel	8
	Preview Resolution	1080P@25fps / 1080P@30fps / 7200P@25fps / 720P@30fps
	Compression	H.264
	Image Resolution	1080P* / 720P / D1
	Frame Rate	1080P@15fps* / 720P@25~30fps / D1@25~30fps
	Video Bitrate	512Kbps~6144Kbps,defaulted: 3072Kbps
	Playback	x4
	Substream Resolution	Cif@15fps
	Stream Type	Video Flow/Integrated Flow
	Dual Stream	Support
Audio Parameters	Coding Standards	G.711A
	Audio Sample Rate	8KHz/16Bit
	Audio Rate	64Kbps

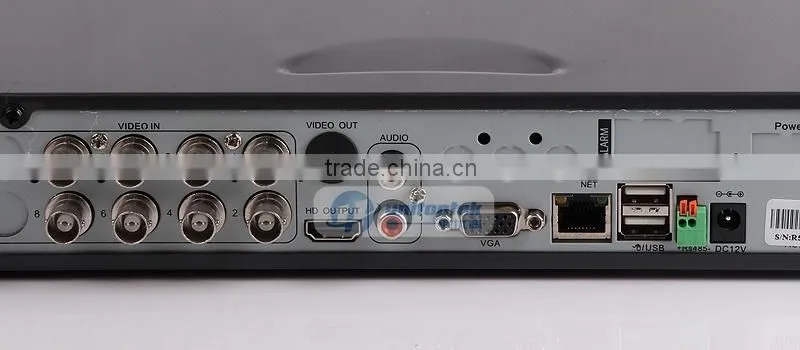

Video Interface	Analog Video Input	8ch, BNC interface
Video Interface	Video Output	1ch VGA output,1ch HDMI output
Audio Interface	Audio Input	1ch RCA input
Audio Interface	Audio Output	1ch RCA output
Recording Management	Recording Mode	Auto,Manual,MD,Alarm
Recording Management	Backup	HDD,USB DISK,Network
Alarm	Alarm Input	no
Alarm	Alarm Output	no
HDD	HDD Interface	SATA x 2
HDD	HDD Capacity	4TB
Communication Interface	Network Interface	1*RJ45,100Mbps Ethernet
	Communication	1*RS485
	USB	2 * USB2.0
Other	Power Supply	DC12V
	Power Consumption	<15W(excluded HDD)
	Working Temperature	-10-+55centigrade
	Working Humidity	10%~90%
Dvr Size		37527550mm
Dvr Weight		1.65kg
Packing Size		425335115mm
Packing Weight		2.65kg

Features

HD TVI 1 / 3" CMOS Sensor

Outdoor Weatherproof bullet

1080p Video Output

3.6mm 2.0 Mega Pixel Lens

12LED Night Vision IR up to 33FT (10m)

DV 12V

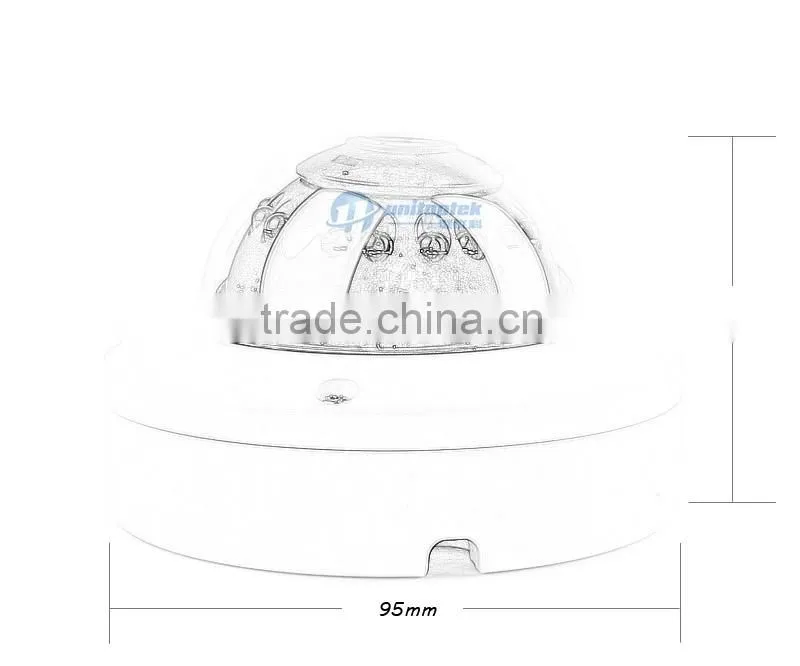

Specification:

Model	TVI-BC3311080
Image Device	HD TVI 1/3 CMOS image sensor
Megapixels	1920(H) x 1080(V)
Lens	3.6mm Mega Pixel Lens
IR LED	12LEDs Night Vision IR up to 33FT (10m)
Minimum Illumination	0.01 Lux/0 Lux led on
Noise reduction	3D-N/2D-N
Video System	NTSC/PAL
IR Shift	Yes
IRIS Mode	AES
White Balance	Auto
Shutter Speed	1/30 (1/25) sec ~ 1/720000 (1/600000) sec
AE Mode	Standard/SWDR/BLC/HLC/Defog
Intelligent Surveillance	Multi-Object Tracking/D-Zoom/Private Mask
Operating Temperature	-20 ~ 40 (-4F ~ 104F)
Power Source (+-10%)	DC12V / 1A

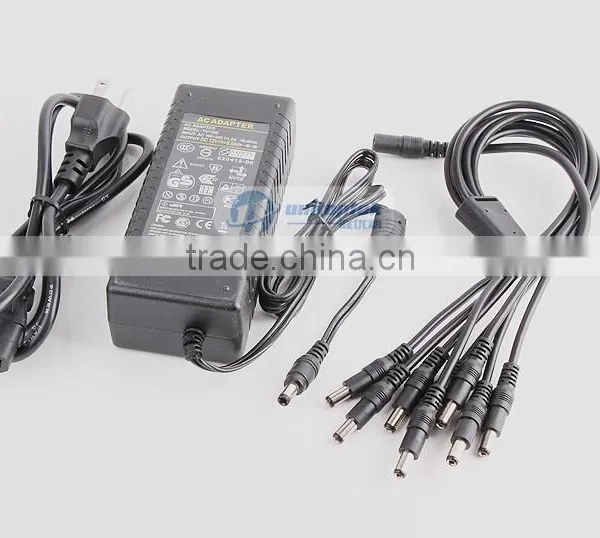

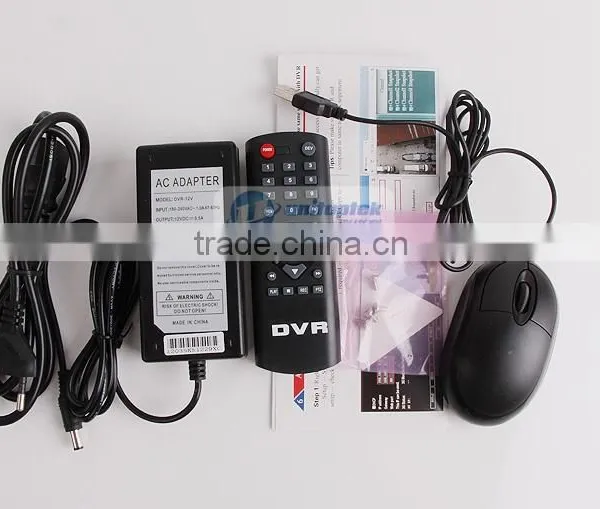

1 X 12V 8.5A power supply with 1 to 8 Splitter Power Cable

FAQ

OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. Whole life service for continue cooperating customers!

Price Term:

FOB Shenzhen

Delivery Term:

By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
