16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof

16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof thumbnail-1
16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof thumbnail-2
16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof thumbnail-3
16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof thumbnail-4
16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof thumbnail-5
16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof thumbnail-6
16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof photo-1
16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof photo-2
16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof photo-3
16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof photo-4
16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof photo-5
16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof photo-6
US$ 843 - 876 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UNITOPTEK
Model Number:
7016DA-MH+HC347B1080
Contact Supplier Request Quote Chat Now
Shenzhen Unitoptek Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name UNITOPTEK
Model Number 7016DA-MH+HC347B1080

16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof

Product Description

16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof

16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof

16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof 16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof

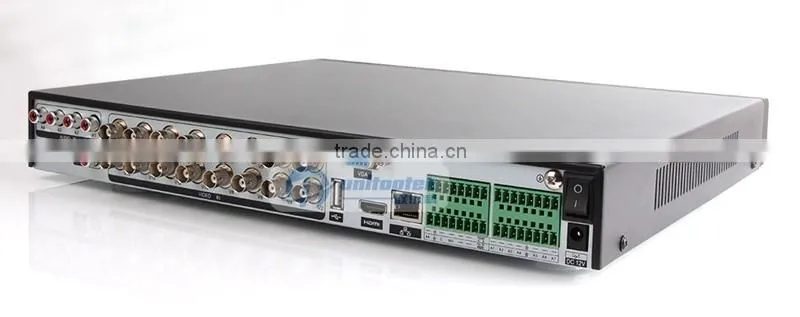

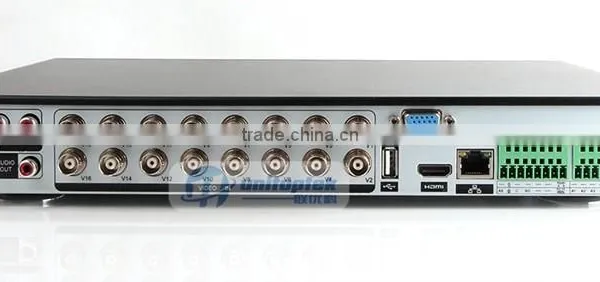

Model

7016DA-MH

System

Main Processor

Embedded processor Hi3531+Hi3532

Operating System

Embedded LINUX

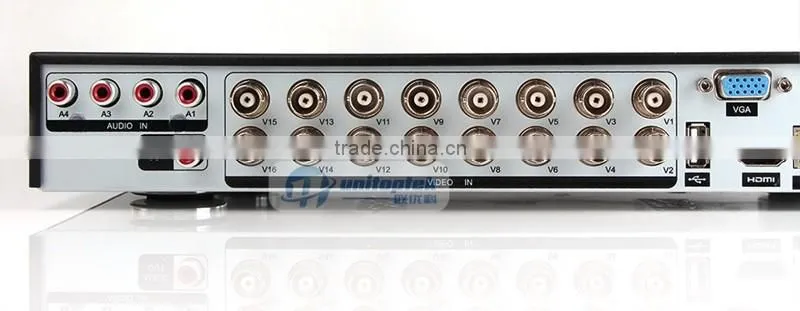

Video

Input

16 channel,

Audio

Input

4 channel, RCA

Output

1 channel, RCA

Intercom

Support

Display

Interface

1 HDMI, 1 VGA

Resolution

DVR: 16*AHD-H@12fps, 16*AHD-M@25/30fps

NVR: 1*1080P+8*720P, 4*1080P; 20*960H

HVR: 2*AHD-H+2*1080P, 4*AHD-M+4*720P

Display Split

1/4/8/16

Privacy Masking

8 rectangular zones (each camera)

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression

H.264

Resolution

1080P/720P/960H /D1/HD1/2CIF/CIF/QCIF

Extra Stream

CIF/QCIF(1~25/30fps)

Bit Rate

1792Kbps-4096Kbps,customized,up to 4096Kbps

Record Mode

Manual, Schedule(Regular(Continuous), MD), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300sec

Video Detection & Alarm

Trigger Events

Recording, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396(22× 18), Video Loss & Camera Blank

Alarm Input

8CH

Alarm Output

1CH

Playback & Backup

Sync Playback

8CH

Search Mode

Time/Date, MD & Exact search (accurate to second)

Backup Mode

USB Device / Network

Network

Ethernet

RJ-45 port (10/100/1000M)

Network Functions

HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter

Smart Phone

Android, Windows Phone ,IOS

Storage

Internal HDD

2 SATA port, up to 4TB

Auxiliary Interface

USB Interface

2 ports(1 Rear), USB2.0

General

Power Supply

DC12V/4A

Power Consumption

≤15W(without HDD)

Working Environment

-10 ~+55°C / 10~90%RH / 86~106kpa

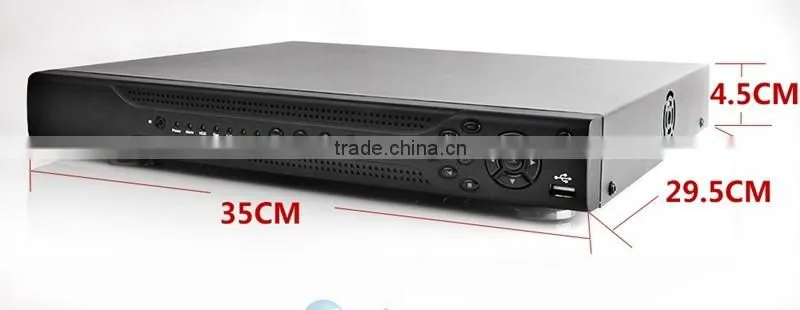

Dimension

Only dvr:350*295*45mm(W*D*H)

Dimension

Packing:390*340*130mm(W*D*H)

Weight

Only dvr:2.0kg

Weight

Packing:2.90kg(NOT WITH HDD)







Why AHD(Analog High Definition):

1.Transmit video signal, audio signal and dual-way data communication signal over one coaxial cable.

2.HD video transmission without video quality loss & delay

3.Extremely long transmission distance(500m)

4.The same connection structure as original analogue system without cable (Coax / UTP) changing

5.High video quality on AHD 1080P



AHD Camera Features:

1. Waterproof Bullet Camera
2. Lens:Board Lens 3.6mm/F2.0
3.  IR LED: 1Pc Array Leds
4.  IR Range:10M



AHD Camera Specification :

Resolution

2.0 Mega Pixel 1080P

Camera type

High performance

HD -AHD Camera

Image Sensor

1/3" IMX322+NVP2441H

Effective Pixel

PAL :  1920*1080@25fps

NTSC : 1920*1080@30fps

Signal System

PAL/NTSC

Video Standard

AHD

Video Output

1CH AHD HD

Max Transmission Distance

Common 75-3lines can be up to 500m

Lens size

Board Lens 3.6mm/F2.0

Minimum Illumination

0LUX/F1.2(Led on)

IR-CUT

Auto switch

LED

1Pc Array Leds

IR Distance

10m

Shutter Speed

1/53~1/100000s

BLC

Auto

White Balance

Auto White Balance

HLC

Support

Operation Temperature

-10°C~55°C

Power Supply

DC12V

Size

195*95*81mm

weight

0.45kg

Housing Material

Metal



Company Information

16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof

Our Service

16 Channel 1080P Hybrid AHD DVR 16CH Surveillance Security KIT With 16PCS 2MP Bullet AHD Camera,IR 10M,Metal Housing,Waterproof

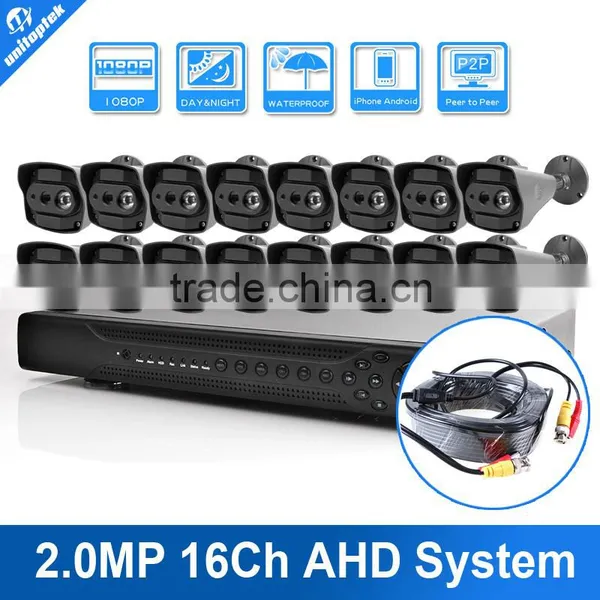

Packaging & Shipping

1 x 16CH 1080P AHD DVR(Not include HDD)

1 x Remote Controller
1 x USB Mouse
1 x Installation CD Rom&User Maunal
1 x Power supply DC 12V for dvr
16 x 1080p bullet ahd camera with Screws

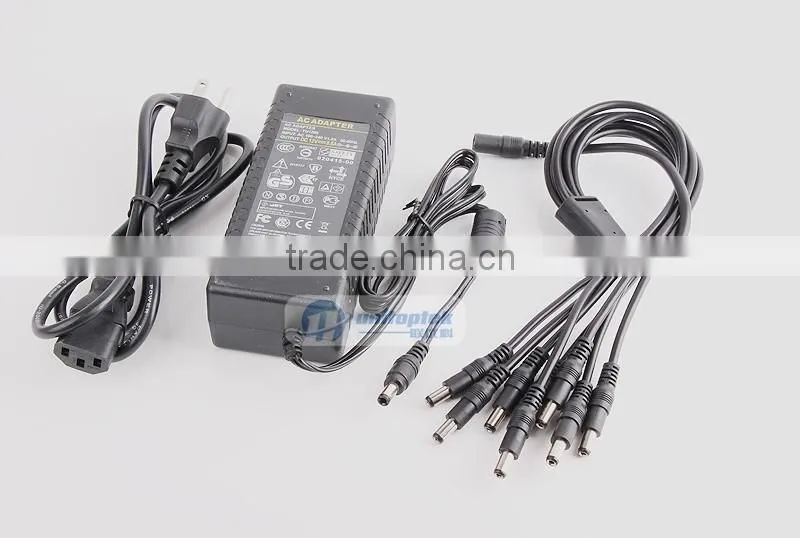

2 x 12v 8.5a dc power suply with 1 to 8 Splitter Power Cable

16 x 20m cable

FAQ

OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. Whole life service for continue cooperating customers!

Price Term:

FOB Shenzhen

Delivery Term:

By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
