Roll Forming Machine Steel
- Xin Gang port
- T/T
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Other, Wall, Roof,door,wall,ceiling | |
| Production Capacity | 25m/min | Place of Origin | Hebei, China | |
| Brand Name | XINGBO | Model Number | FX light keel roll forming machine | |
| Power(W) | 5.5kw | Voltage | 380v 50hz 3-phase | |
| Dimension(L*W*H) | 5.5*0.8*1.6m | Weight | 3.2tons | |
| Certification | CE BV ISO | Warranty | 365 days | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

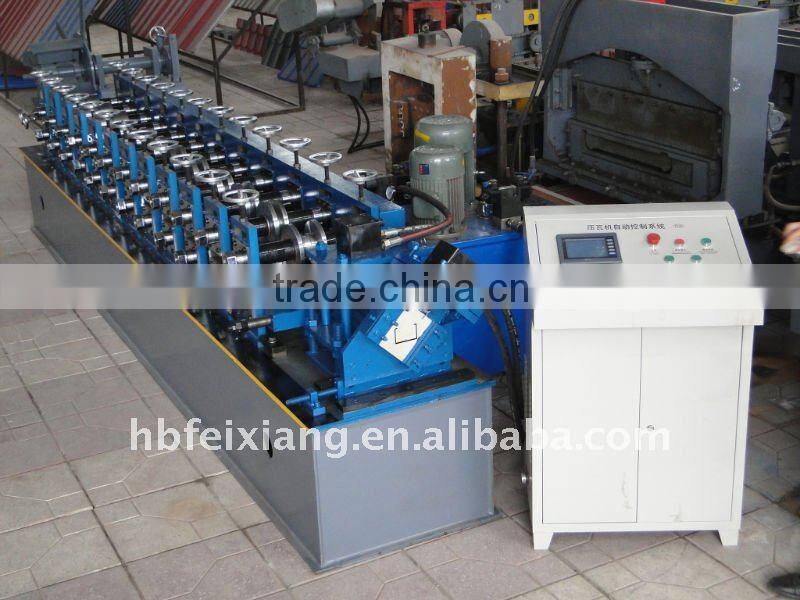

Roll forming machine steel
Our factory:
Our credit:
1.The chart of process flow:
Decoiling--active feeding---forming---measuring lengh---punching machine---cutting---product to stand
2.Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.
3.Technical parameters

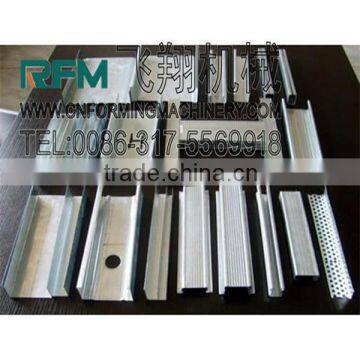

1)Profile
thickness:0.3--0.8mm

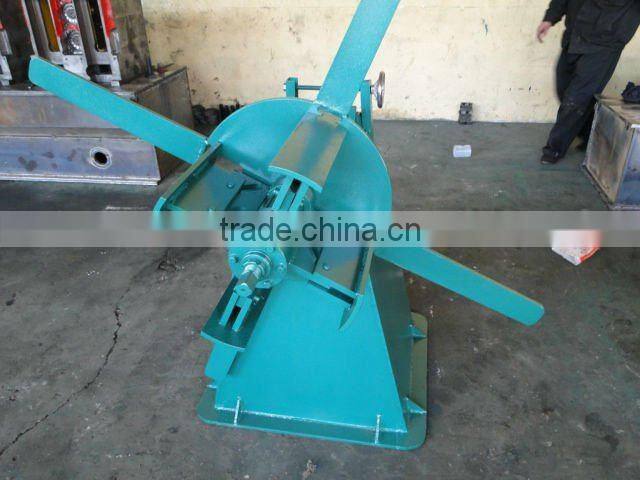

2)inner tight decoiler
il inner diameter:450mm--550mm
B.max width of coiling:1250mm
C.max weight of loading:5000kg

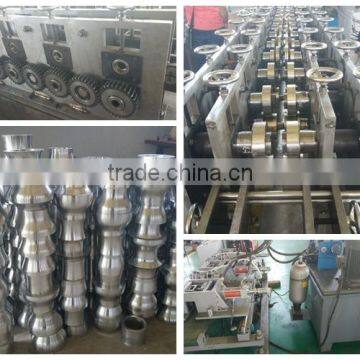

3)main forming machine
A.Shaft material:45# steel,bearing steel outer diameter 85mm
B.Main motor power:5.5kw
C.Forming speed:8--10m/min
D.Voltage:380v,50hz
E.Roller station:15

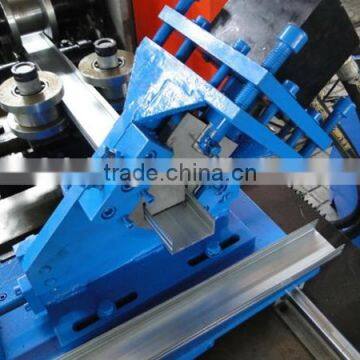

4)cutting system
A.hydraulic cutter
B.Blade and mould material:Cr12 steel with quenched treated 60-62°
C.Cutting system advanced hydraulic drive,after automatic cutting after forming.no
5)control system
A.PLC: taida form Taiwan
B.Coder:from south korea
6)hydraulic system
A.advanced hydraulic system from taiwan
B.Power:3kw
4.Spare Parts
1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2).Rubber mat 1 pcs;
3).Bolt spanner 1 pcs
Terms:
1.Delivery:in stock
2.Package:export standard package for container
3.Payment:TT (30% by TT in advance,70% by TT after you inspect machine we need)
4.Delivery date:within 30 working days after receiving deposit
5.Products Warranty:12 month,and we will provide the technical support for whole life of the equipment.
Contact Us
- Hebei Feixiang Roll Forming Machinery Co., Ltd.
- Contact nameSam Li Chat Now
- Phone86-317-5569916 8297121
- AddressNo. 88, Yingbin Road, Industrial Development Zone
