Full Automatic c Purlin Roll Forming Machine
- tianjin
- T/T
You May Like
-
Roll Making Machine Series Steel c Purlin Cutting Machine Price
-
FX Galvanized Sheet Vending Machine
-
c z Purlin Roll Forming Machine
-
C&u Telescopic Channel Manufacturing Machine CZ Purlin Roll Forming Machine Quality Choice
-
Steel, C Purlin / Z Purlin / H Beam, Steel Structure, Steel Work
-
High Quality Steel Purlin c Beam c Purlin Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 0-18m/min | Place of Origin | Hebei, China | |
| Brand Name | XINGBO | Model Number | full automatic c purlin roll forming machine | |
| Power(W) | 15kw | Voltage | client want | |
| Dimension(L*W*H) | 8.5*1.3*1.6 | Weight | 6.5tons | |
| Certification | CE BV ISO | Warranty | 365 days | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

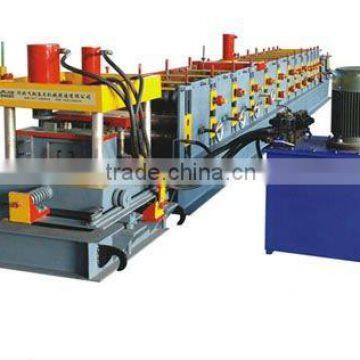

Full automatic c purlin roll forming machine
Technical specifications
Meterial :#45 steel
package: simple waterproof
The min order:one set
Freight way: container
Term of payment: T/T
Strong point: debuging all the world, the best price
Our factory:
Our credit:
1.The chart of process flow:
Decoiling--active feeding---forming---measuring lengh---cutting---product to stand

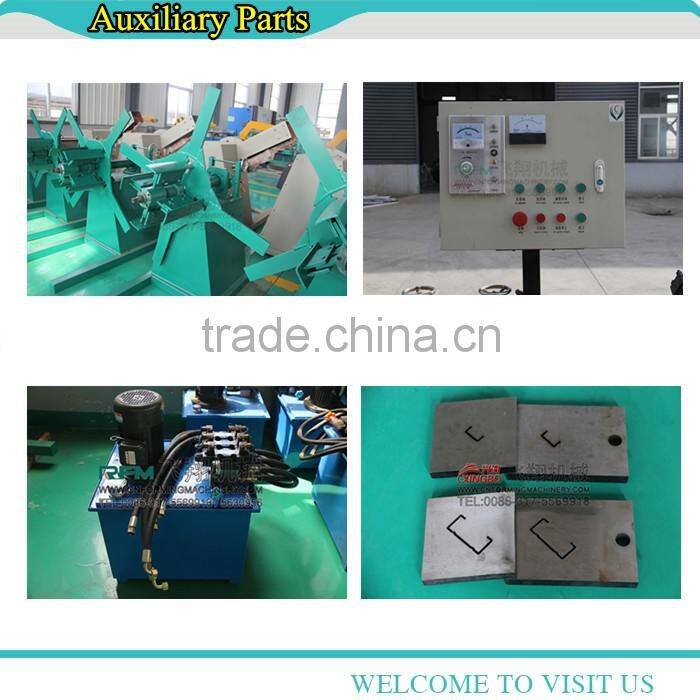

2.Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.
3.Technical parameters

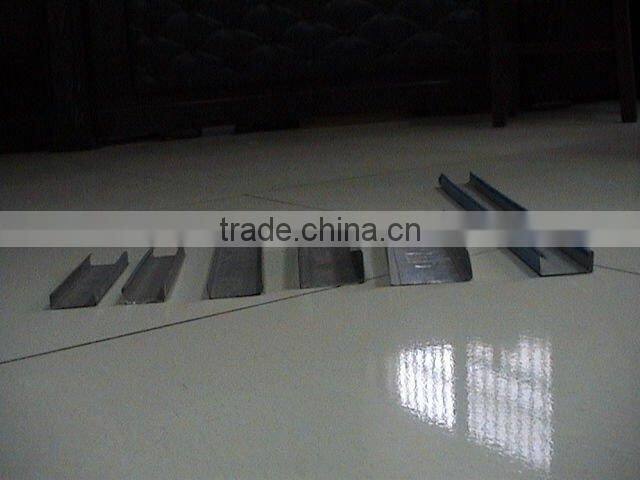

1)Profile
A.thickness:0.3--0.8mm
B.Feeding width:1000mm

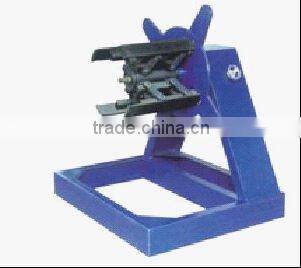

2)inner tight decoiler
il inner diameter:450mm--700mm
B.max width of coiling:1200mm
C.max weight of loading:5000kg
3)main forming machine
A.Shaft material:45# steel,bearing steel outer diameter 85mm
B.Main motor power:5.5kw
C.Forming speed:8--10m/min
D.Voltage:380v,50hz
E.Roller station:11

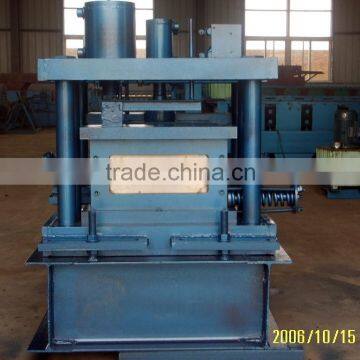

4)cutting system
A.hydraulic cutter
B.Blade and mould material:Cr12 steel with quenched treated 60-62
Cutting system advanced hydraulic drive,after automatic cutting after forming.no

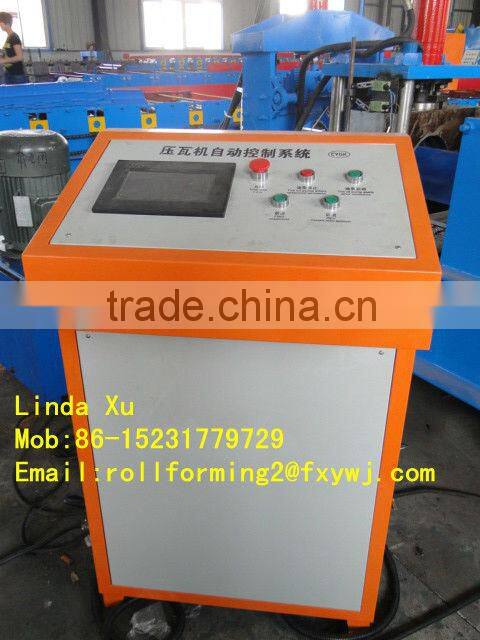

5)control system
A.PLC: taida form Taiwan
B.Coder:from south korea
Warranty:
1. One year, and we will provide the technical support for the whole life.
2. Trainning: the buyer should charge of visa, round-trip ticket, food and accommodation overseas and USD50/person/day for salary.
3. Need one technicians
4. Training time: one week (contains the time of installation and adjustment)
