Purlin Roll Forming Machine, c and z Purlin Construction Roll Forming Machinery
- tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Purlin Roll Forming Machine, c and z Purlin Cold Roll Forming Shaping Machine Quality Choice
-
Purlin Roll Forming Machine, c and z Purlin Cold Roll Forming Machine Supplier
-
Purlin Roll Forming Machine, c and z Purlin Cold Roll Forming Machine Factory
-
Purlin Roll Forming Machine, c and z Purlin Bending Machine
-
Purlin Roll Forming Machine, c and z Purlin Machine Manufactures
-
Purlin Roll Forming Machine, Hydraulic Roof Purlin Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Wall | |
| Production Capacity | 30sets/month | Place of Origin | Hebei, China | |
| Brand Name | Xingbo | Model Number | FX-C&Z | |
| Power(W) | 18.5kw or customized | Voltage | 380v50hz3p | |
| Dimension(L*W*H) | 11.8*1.65*1.75m | Weight | about 9T | |
| Certification | BV CE ISO | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

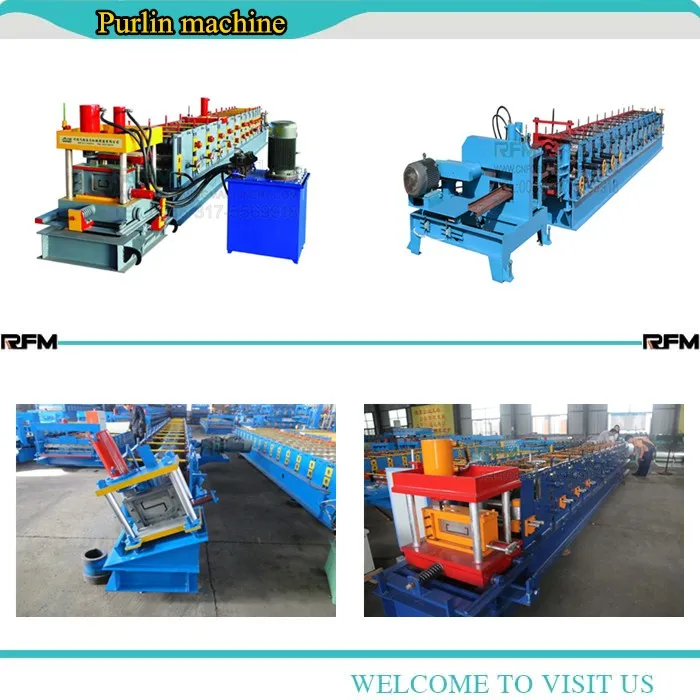

Purlin roll forming machine,c and z purlin construction roll forming machinery
Features and Structure:
c and z purlin construction roll forming machinery
* Multi-functional converter controlled speed regulation by PLC
* Main-machine interface touch screen for easy operation
*Automatic material feeding system
* The machine can be used for different type of purlins
*Automatic electric control system make production safety ang efficiency
*Solid shaft and high quality rollers make the machine working smoothly and endurable
*Low noise,low wasting ,energy saving and environmental
1.Machine Description:
c and z purlin construction roll forming machinery
| No. | Quantity | Delivery Time | Container Type | Price/USD(FOB Tianjin) |
| FX-C/Z | 1 SET | 30 Working days | 20GP | 22000-35000 |

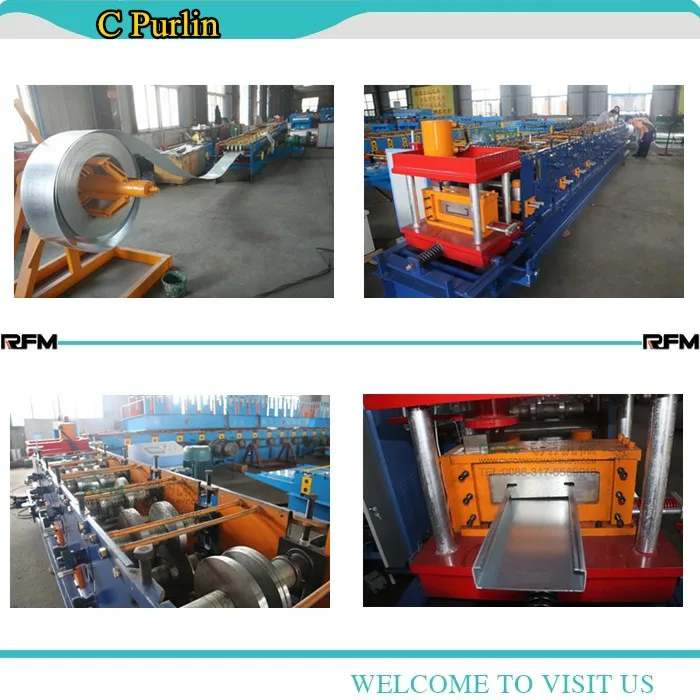

2.Process Flow :
c and z purlin construction roll forming machinery
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Cutting→Products receiving
3.Components :

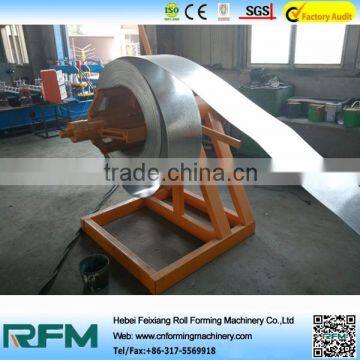

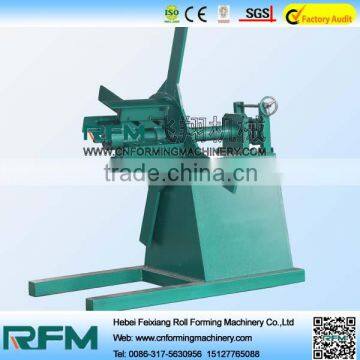

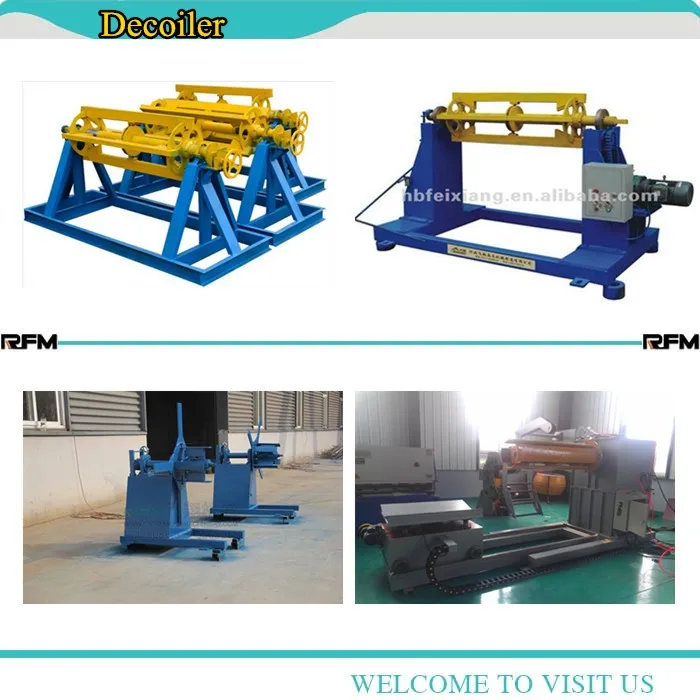

a.Un-coiler System
Usage: It is used to support the steel coil and uncoil it in a turntable way.
You may choose manual or full automactic.
Loading capacity | Uncoiling width | Inner diameter |
5T | 300mm | 450-550mm |

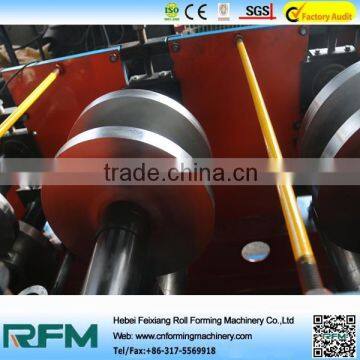

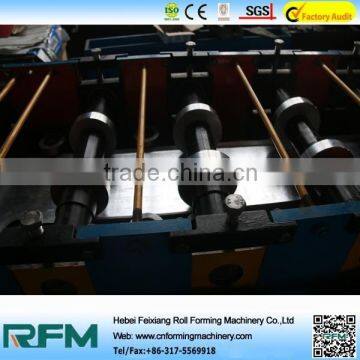

b.Main forming machine
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and long-life time.
| Type No. | Hebei Feixiang construction machine of c purlin |
| 1.Dimension | 11.5*1.65*1.7m |
| 2.Weight | About 9T |
| 3.Voltage | 380v50hz3p(or as request) |
| 4.Frame thickness | 25mm |
| 5.Roller station | 12 steps |
| 6.Motor power | 18.5kw |
| 7.Diameter of shaft | 80mm |
| 8.Drive style | Gear or chain |
| 9.Material of shaft | 45#steel with heat treated |
c.Cutting device
Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.
Blade Material | Cutting system |
Cr12 steel with quenched treated 60-62°C | Full automatic |

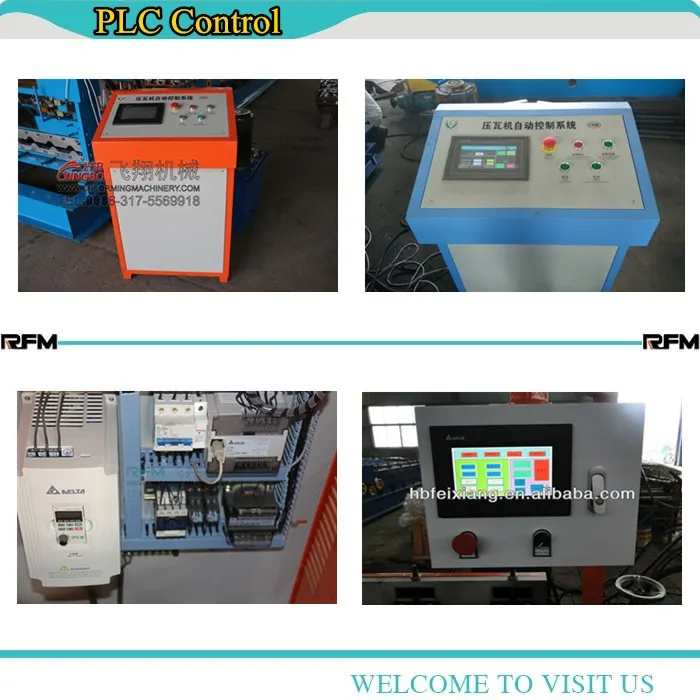

d.Controlling device
Screen | PLC | Coder |
Text screen displayer |
Taida DVP14ES from Taiwan |
Omron |
e.Hydraulic pump and Runout table
Orgin | Power |
Advanced hydraulic system from Taiwan | 3kw |
g.Spare parts ( for free)
1). Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
2). Rubber mat 1 pcs;
3). Bolt spanner 1 pcs
1.Packaging Standard:
1),This commodity shall be packed in new wooden cases suitable for ocean transportation.
2),Control box and easy damage parts shall be wrapped up in seaworthy waterproof pape.
3),Packing must be seaworthy as well as strong enough to stand shock and rough handing.

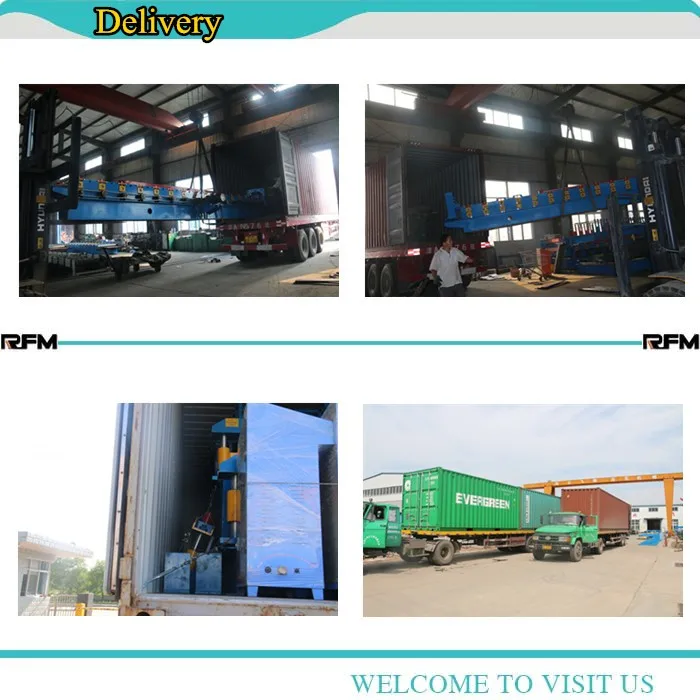

2.Shipping:
We will arrange the shipment within 30 working days upon confirmation of purchasing order or recepit of deposit.

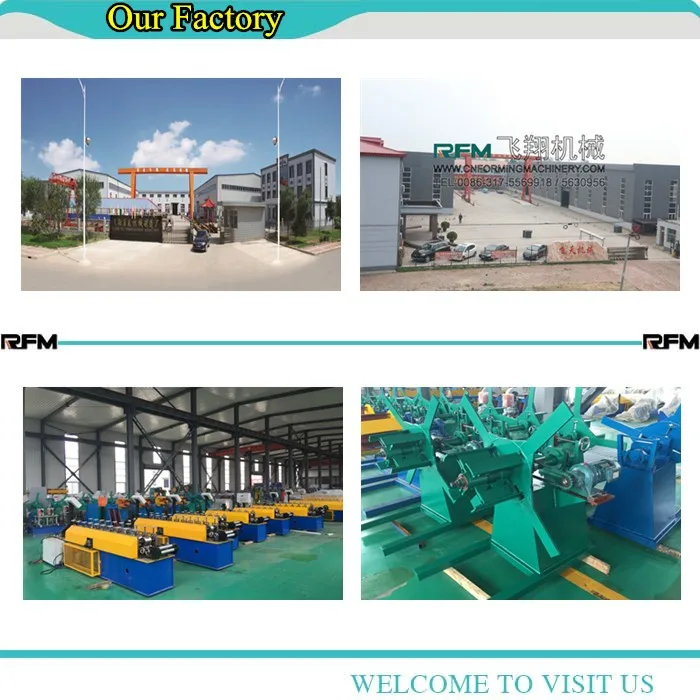

About Feixiang:

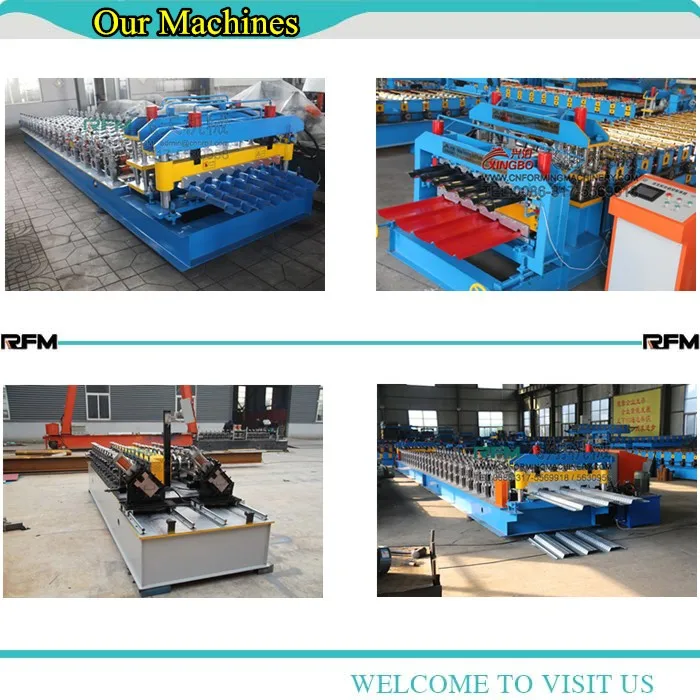

Hebei Feixiang Roll Forming Machinery Co.,Ltd is the biggest and strongest in the north of China. Our factory is specialized in manufacturing color steel forming machinery, C&Z purlin machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine and other cold roll forming machines
We have various kinds of machinery and production methods to meet our customer’s increasing demand. Our different types of roll forming machine are easy to operate and have efficiency which have leading position both at home and abroad. Now, our productions have been exported to Canada, South Korea, Russia, Holland, Surinam, Sri Lanka, Malaysia, Viet Nam, Nigeria, Tanzania, India, Mongolia, Armenia, Kazakhstan, Vladivostok, Bolivia, Azerbaijan, etc.
Service aim: Quality First, Credit First.
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Any question ? please feel free to contact me.
Besides,welcome to visit our company.Seeing is believing.
Why choose FEIXIANG?
*We supply all the technical support,such as engineers,drawings,and instruction manual.
*We send one or more than one engineers to client for installing and adjust all the machinery
*Buyer also can sent workers to our workshop for learning how to conduct C&Z purlin roll forming machine made in china
*Supply formula guide service and staple raw material purchase.
*We could supply turnkey project to you.
*We have good reputation from our customers both at home and abroad.
