CNC Milling Machine and Slotting Machine XCK6328

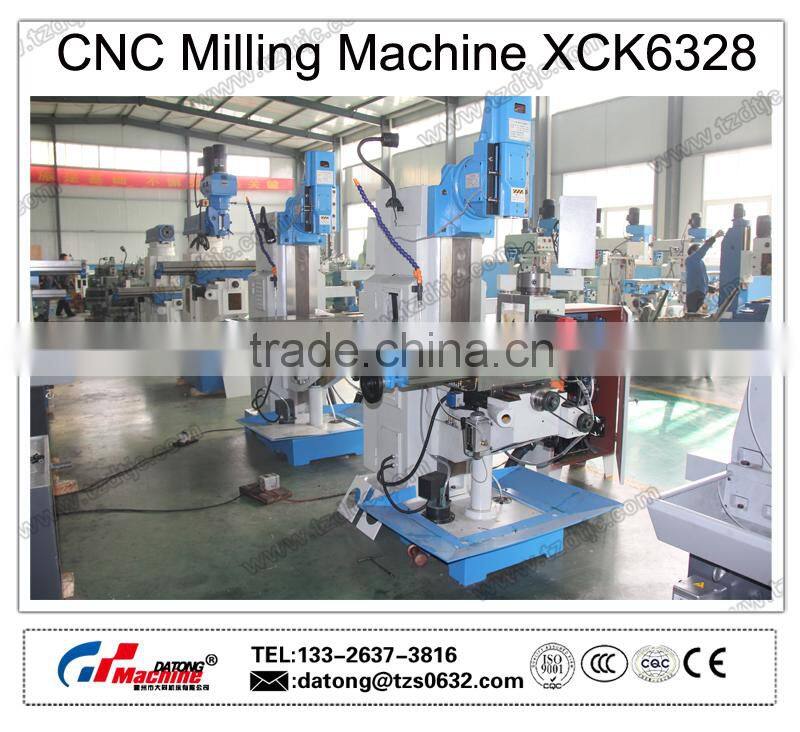

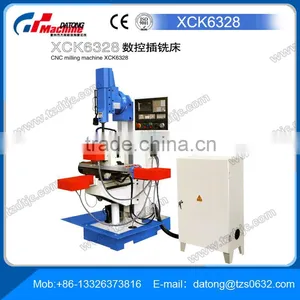

CNC Milling Machine and Slotting Machine XCK6328 photo-1

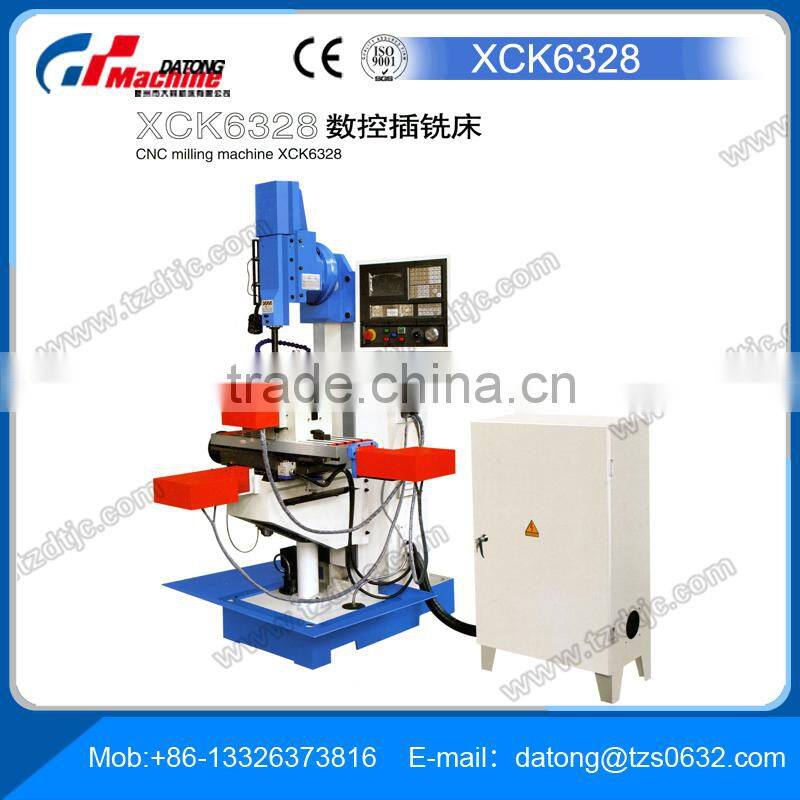

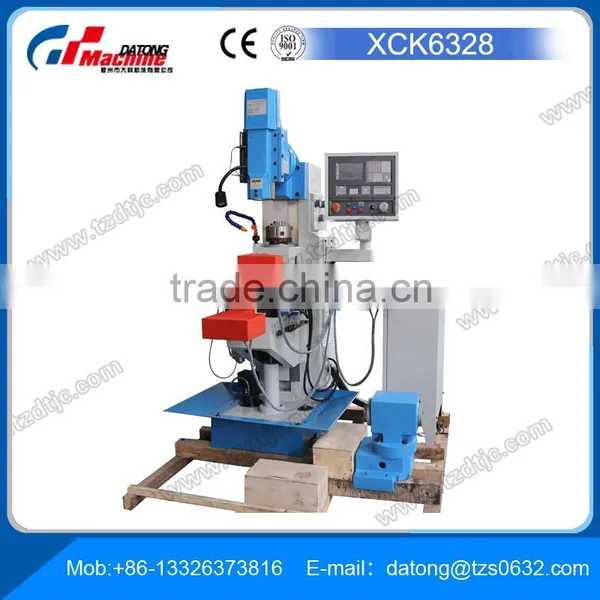

CNC Milling Machine and Slotting Machine XCK6328 photo-2

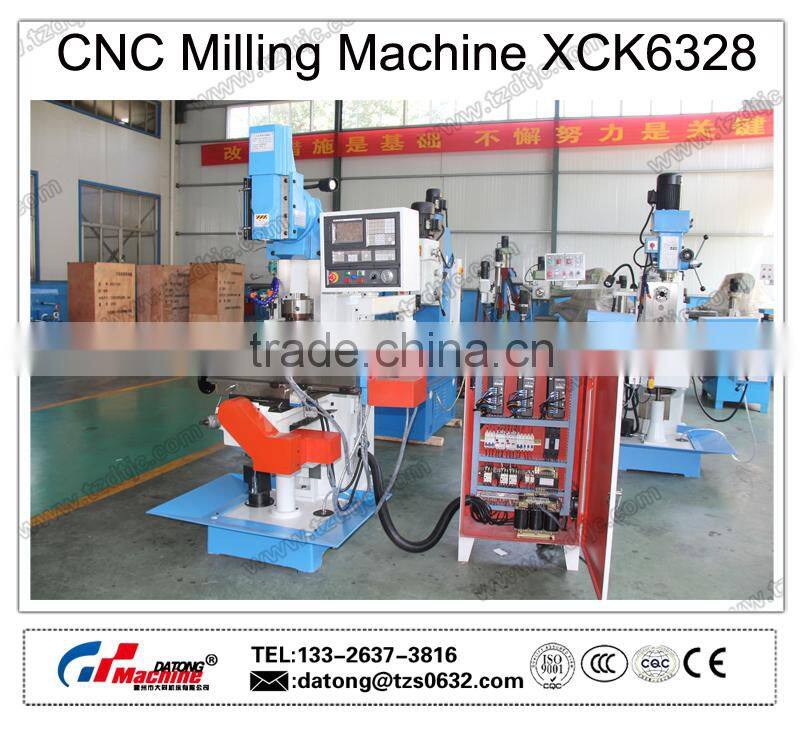

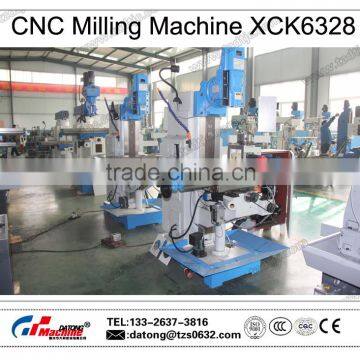

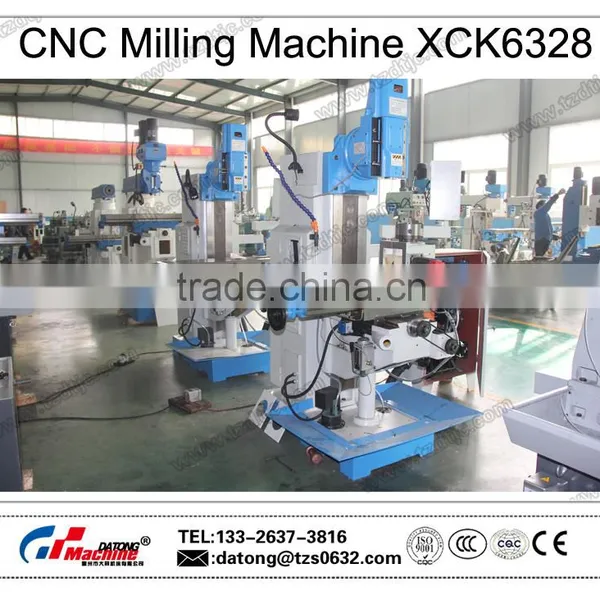

CNC Milling Machine and Slotting Machine XCK6328 photo-3

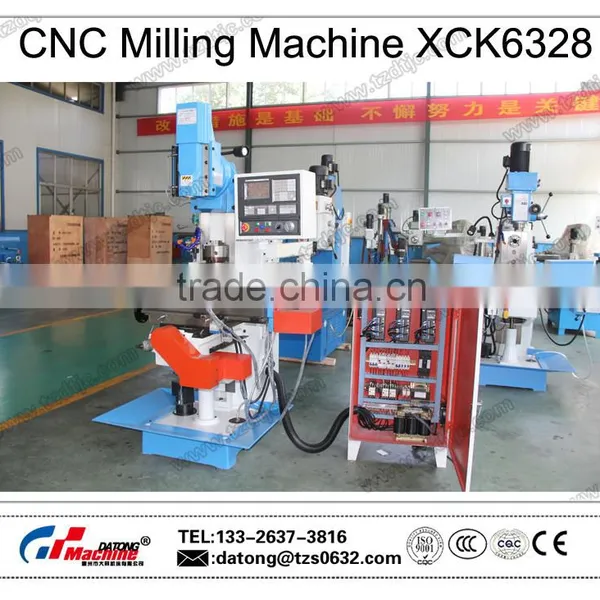

CNC Milling Machine and Slotting Machine XCK6328 photo-4

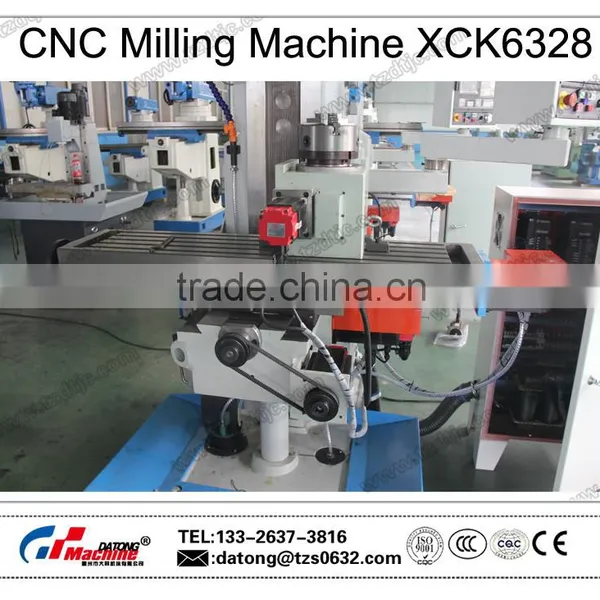

CNC Milling Machine and Slotting Machine XCK6328 photo-5

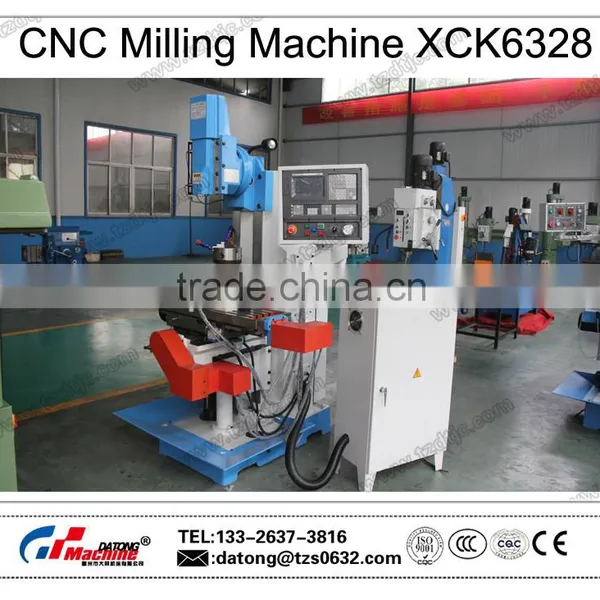

CNC Milling Machine and Slotting Machine XCK6328 photo-6
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
DATONG
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao.tianjin.shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name DATONG
Model Number XCK6328
Type Vertical
CNC or Not CNC
Voltage 220v/380v
Power(W) 2.2kw
Weight 1600kg
Certification CE ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

 CNC Milling Machine and Slotting Machine XCK6328



Vertical CNC Milling Machine XCK6328



Features:

1.The slotting machine adopts kane emperor K100Mi-As CNC system,type of yantai CNC dividing head,125;
2.Han,precision ball screw(X,Y);
3.With vertical milling head,can realize the function of CNC milling machine.
4.Automatic lubrication system for batch.



Specification:



ModleXCK6328
Table size800*280mm
T slot(No./width/distence)3/14/70
Table travel(X*Y*Z)300*230*300
Biggest slotting the  itinerary165mm
Stroke adjustment range

65-165mm

Max number of back and forth

less than 100p/min(travel more than 100mm)

less than 125p/min(travel less than 100mm)

Round trips and series40-150
The spindle speed range40-1300rpm
For the turning angle of the plug90
The spindle motor power2.2KW
Power  feed motor1.5kw 6N.m
Feed motor connectionPrecision coupling
N.w1600kg
