Vertical CNC Milling Machine XK7136 for sale
- 200 Set / Sets per Month
- qingdao.tianjin.shanghai
- T/T L/C D/P D/A Credit Card PayPal
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial CNC Milling Machine, production, Machine Center for steel, stainless
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | DATONG |
Model Number: | XK7136 | Type: | Vertical | CNC or Not: | CNC |
Voltage: | 220v/380v | Power(W): | 5.5kw | Dimension(L*W*H): | 2220X1850X2250mm |
Weight: | 2500kg | Certification: | CE ISO9001 | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

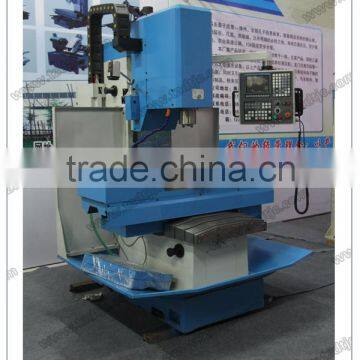

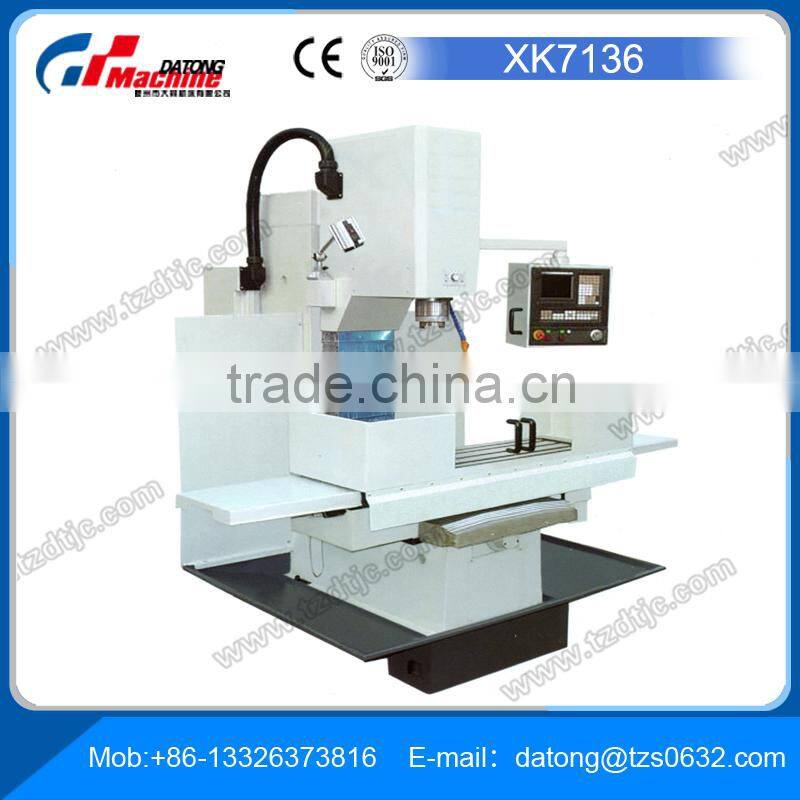

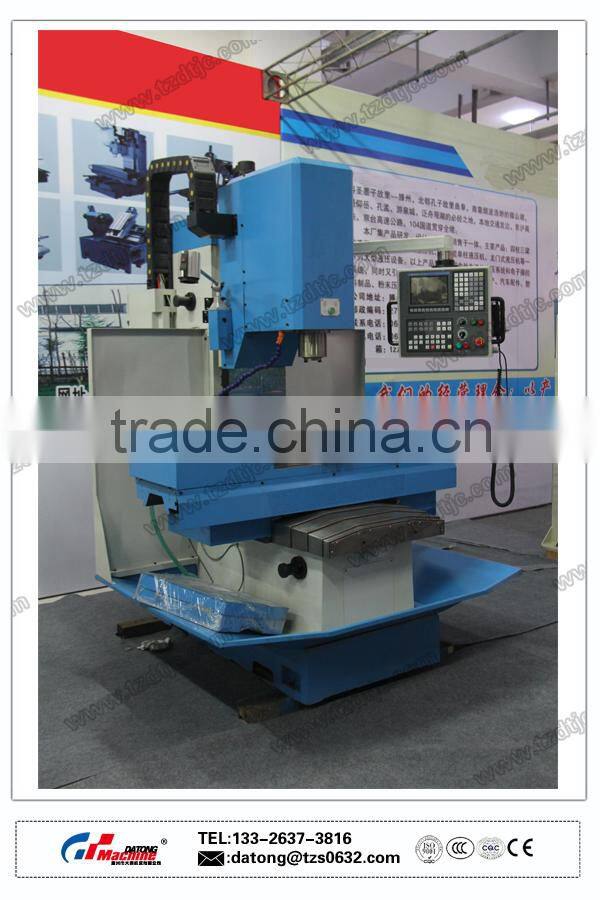

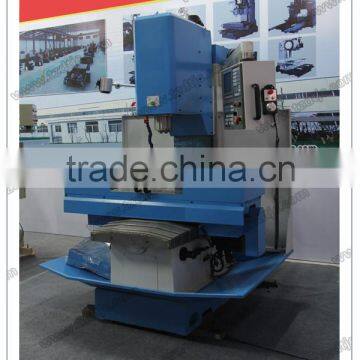

Vertical CNC Milling Machine XK7136
Features:
Main unit type is used in the main axle and the standard of the knife handle is BT40/NT40, servo motor and numerical control motor are used in the working table. Three axle linkages are adopted to meet the processing accuracy requirements. This lathe is suitable for semiautomatic processing such as: drilling , tapping, chamfering, bearing, milling face thread, handle and tower and other processes in the batch production and fitted for the many work pieces and multimachine management.
1.The machine main structure has high rigidity, Y/Z axes adopt rectangular guide way, X axes adopt swallowtail guide way .
2.The table surface and the guide ways are hardened.
3.The machine is lubricated by the automatic lubrication mechanism.
4.X,Y,Z axes adopt ball screw, low speed feed without crawl and high precision.
5.The spindle realizes the automatic infinitely variable speed by the way of motor.
6.With functions of tool self-lock.
Specification:
Model | XK7136 |
X-axis travel | 900mm |
Y-axis travel | 360mm |
Z-axis travel | 460mm |
Spindle nose to table | 100-580mm |
Spindle center to column guide-way face | 460mm |
Rapid Speed of X,Y, axis | 5000mm/min |
Rapid speed of Z axis | 4000mm/min |
Feeding speed | 1-2000mm/min |
Size of rotary table | 1250X360mm |
Max. loading capacity of rotary table | 450kg |
T-slot NO./with/distance of rotary table | 3/18/80 |
Spindle max.speed | 6000rpm |
Main motor rated power | 5.5kw |
Spindle nose taper | BT40 |
Max.diameter of tools | 100mm |
Max.length of tools | 200mm |
Max.weight of tools | 5kg |
Time of changing tools | 6s(Umbrella)/2(Round) |
Positioning accuracy of X/Y/Z axis | 0.02mm(GB)0.012mm(Real) |
Re-positioning accuracy of X/Y/Z axis | 0.012mm(GB)0.008mm(Real) |
Pneumatic press | 0.6mpa |
N.W | 2500kg |
Overll dimension | 2220X1850X2250mm |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
