Vertical CNC Milling Machine XK6036W
Features:
1.The machine uses high strength cast iron.
2.X.Y.Z guideway for plastic coated widened rectangular slide guide, the intermediate frequency quenching and precise research.
3.The cooling system with large flow and large-scale pump ,Under the high speed cutting with sufficient cooling.
4.The CNC system is KND-1000M.
5. Automatic dividing head attachments supplied at extra cost.
Specification:
| Model | XK6036W | XK5036B-1 |
| Table travel X.Y.Z | 900*300*400mm | 900*300*400mm |
| Table size | 1250*360mm | 1250*360mm |
| Number/width/distence of T-slot | 3/18/80mm | 3/18/80mm |
| Max. load of table | 320kg | 320kg |
| Distence from spindle nose to table | 40-450mm | 40-490mm |
| Distence from spindle axis to column guideway | 400mm | 420mm |
| Table rapid feed speed (X.Y.Z) | 6000*6000*3000mm/min | 6000*6000*3000mm/min |
| Table feed speed(X.Y.Z) | 6-3200(3-1600)mm/min | 6-3200(3-1600)mm/min |
| Spindle travel | - | 70mm |
| Taper of spindle | ISO50(7:24) | ISO50(7:24) |
| Max. revolving angle of vertical minlling head | - | 45 º |
| Spindle speed range | 60-1800(12step)rpm | 60-1700(12step)rpm |
| Spindle motor power | 5.5kw | 5.5kw |
| Longitudinal transverse feed motor torque(X.Y) | 10N.m | 10N.m |
| Vertical feed motor torque(Z) | 22N.m | 22N.m |
| Max.spindle torque | 800N.m | 800N.m |
| Overall dimension | 1929*2055*1960mm | 1929*2055*1960mm |
| N.w | 2500kg | 2500kg |

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.

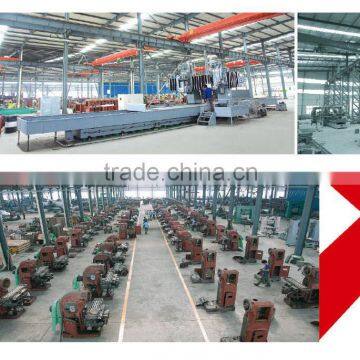

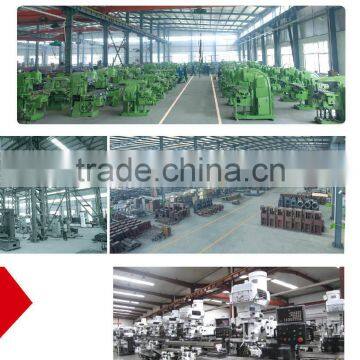

Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
