5# Turret Mill-head Vertical CNC Milling Machine XK7136B for Sale

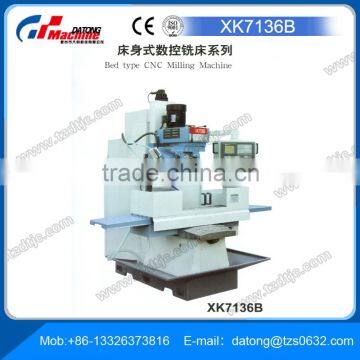

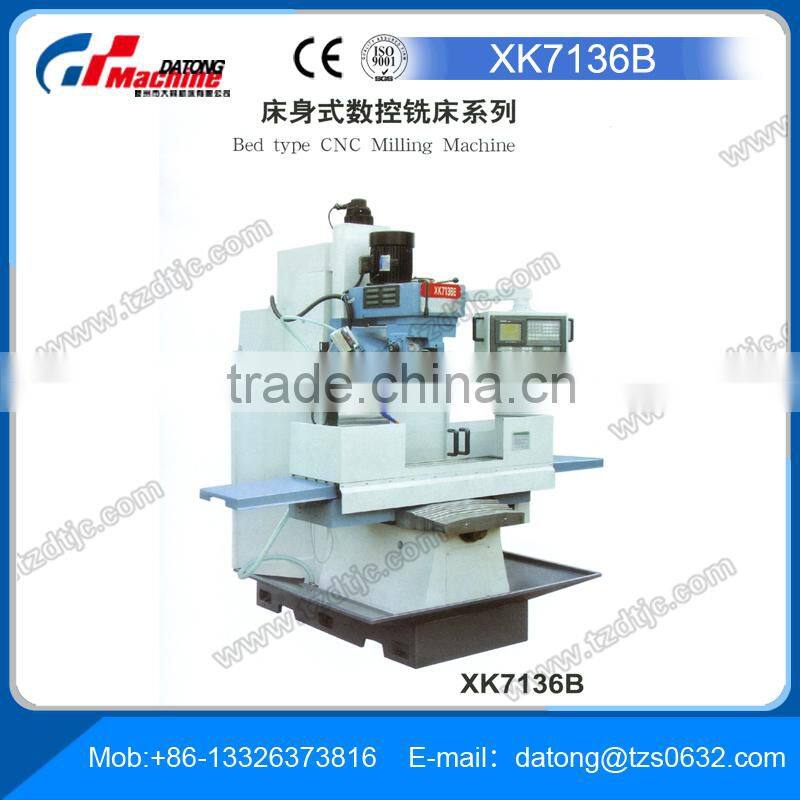

5# Turret Mill-head Vertical CNC Milling Machine XK7136B for Sale photo-1
5# Turret Mill-head Vertical CNC Milling Machine XK7136B for Sale photo-2
5# Turret Mill-head Vertical CNC Milling Machine XK7136B for Sale photo-3
5# Turret Mill-head Vertical CNC Milling Machine XK7136B for Sale photo-4
US$ 23,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
DATONG
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao.tianjin.shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name DATONG
Model Number XK7136B
Type Vertical
CNC or Not CNC
Voltage 220v/380v
Power(W) 5.5kw
Dimension(L*W*H) 2220*1850*2350mm
Weight 2400kg
Certification CE ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

 5# Turret Mill-head Vertical CNC Milling Machine XK7136B for sale



Turret Mill-head  Vertical CNC Milling Machine XK7136B



Features:



Applicable to the machine tool, small parts, high-precision, highly efficient automated processing .

1.Bed-style structure
2.High-speed spindle unit, frequency stepless speed regulation.
3.Table Y, Z guide are the wide rectangular, X, Y, Z Guide are hardened and ground.
4.Automatic Lubrication.



Specification:



Model

XK7136B

X-axis travel

900mm

Y-axis travel

360mm

Z-axis travel

460mm

Spindle nose to table

130-590m

Spindle center to column guide-way face

450mm

High speed feeding of X,Y axis

5000/5000/4000mm/min

Feeding speed

1-2000mm/min

Size of working table

1250×360mm

Max.loading capacity of rotary table

400mm

T-slot NO./width/distance of rotary table

3×18×80mm

Spindle speed range/step

63-2917rpm/10step

Main motor rated  power

5.5(7.5HP)ke

Spindle hole taper

7:24 ISO40

N.W

2400kg

Overall dimension

2220×1850×2350mm





Packaging & Shipping

5# Turret Mill-head Vertical CNC Milling Machine XK7136B for sale5# Turret Mill-head Vertical CNC Milling Machine XK7136B for sale

Company Information

5# Turret Mill-head Vertical CNC Milling Machine XK7136B for sale

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.



Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have collegeducation which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.



"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.



The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
