Turret Mill-head Vertical CNC Milling Machine XK6350P for Sale

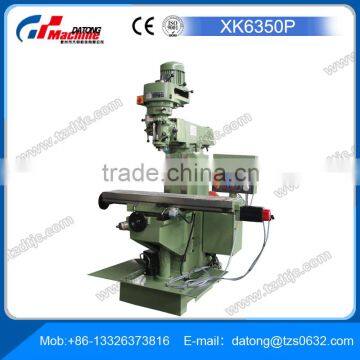

Turret Mill-head Vertical CNC Milling Machine XK6350P for Sale photo-1
Turret Mill-head Vertical CNC Milling Machine XK6350P for Sale photo-2

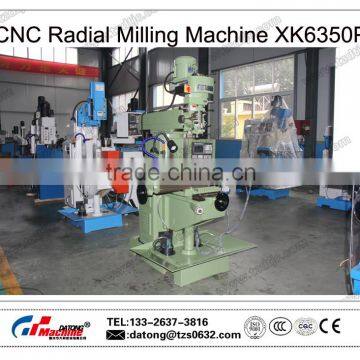

Turret Mill-head Vertical CNC Milling Machine XK6350P for Sale photo-3

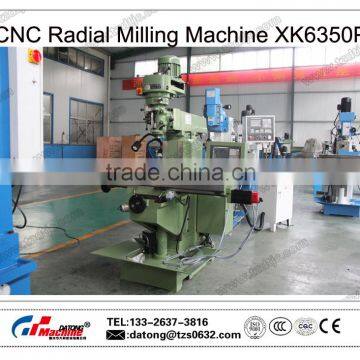

Turret Mill-head Vertical CNC Milling Machine XK6350P for Sale photo-4
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
DATONG
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao.tianjin.shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name DATONG
Model Number XK6350P
Type Vertical
CNC or Not CNC
Voltage 220v/380v
Power(W) 1.5(V)/2.2(H)kw
Dimension(L*W*H) 1400*1800*2300mm
Weight 1600kg
Certification CE ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

 Turret Mill-head Vertical CNC Milling Machine XK6350P for sale



Vertical CNC Milling Machine XK6350P



Features:

1.Can be widely used in processing plane, arbitrary Angle of inclined plane, keyseat, groove, also can turn, reaming, boring, ram can be turned 360 degrees.
2.The spindle speed range is big, high rotation speed
3.Spindle sleeve can decide motor processes, and is equipped with overload protection device.
4.Workbench are treated by high frequency hardened, beautiful, practical.
5.Options motor feeding device and digital display system.



Specification:





 Modle

XK6350P

Max. Diameter of Milling

25mm

Max. Diameter of Drilling hole

50mm

Max. Width of Milling

100mm

Max. Diameter of Tapping

M16mm

Spindle Travel

120mm

Spindle Speed

65-5440rpm(Vertical)16step

400-1300rpm(Horizontal)12step

Distance from Spindle nose to Table

100-500mm

Distance from Spindle nose to Column

380mm

Table Size

1200*280mm

Table Travel(X/Y)

680/260mm

Spindle Motor Power

0.85/1.5kw(V)2.2kw(H)

Overall Dimensions W*L*H

1400*1800*2300mm

N.W

1600kg



Detailed Images

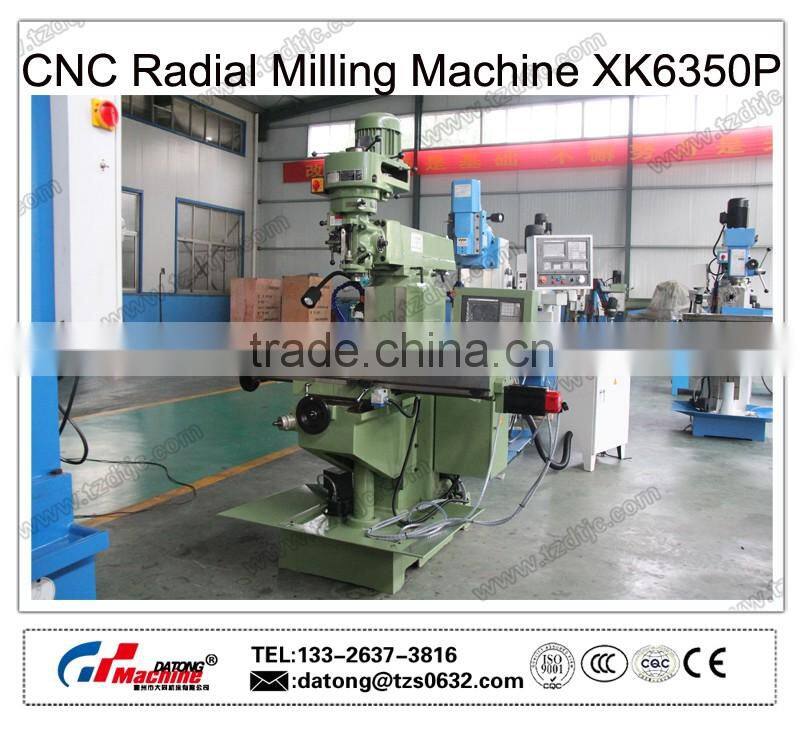

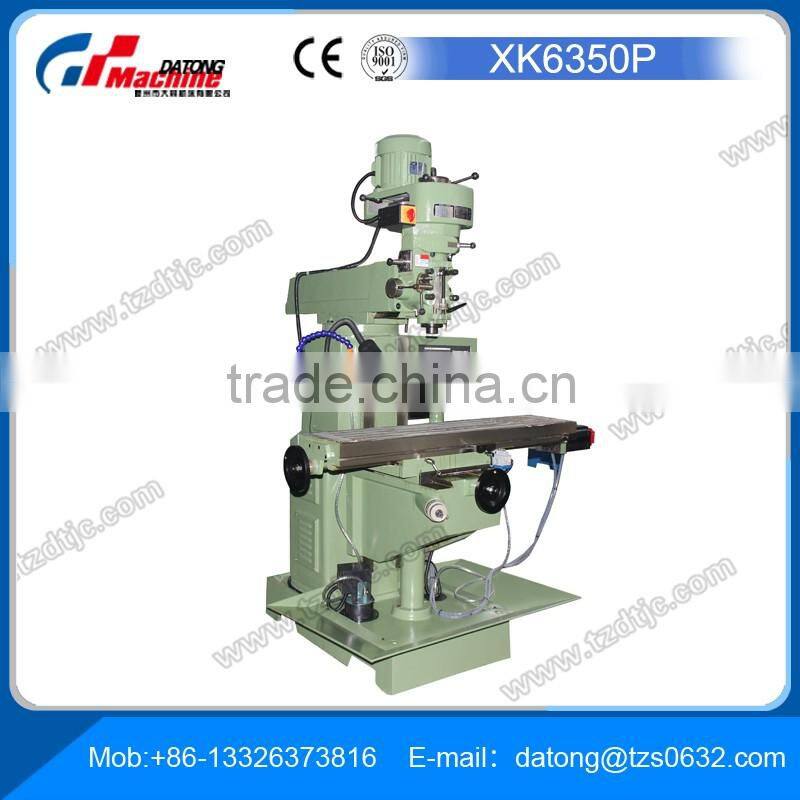

 Turret Mill-head Vertical CNC Milling Machine XK6350P for sale



Packaging & Shipping

Turret Mill-head Vertical CNC Milling Machine XK6350P for saleTurret Mill-head Vertical CNC Milling Machine XK6350P for sale

Company Information

Turret Mill-head Vertical CNC Milling Machine XK6350P for sale

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.



Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have collegeducation which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.



"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.



The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!

Turret Mill-head Vertical CNC Milling Machine XK6350P for saleTurret Mill-head Vertical CNC Milling Machine XK6350P for sale

Turret Mill-head Vertical CNC Milling Machine XK6350P for saleTurret Mill-head Vertical CNC Milling Machine XK6350P for sale
