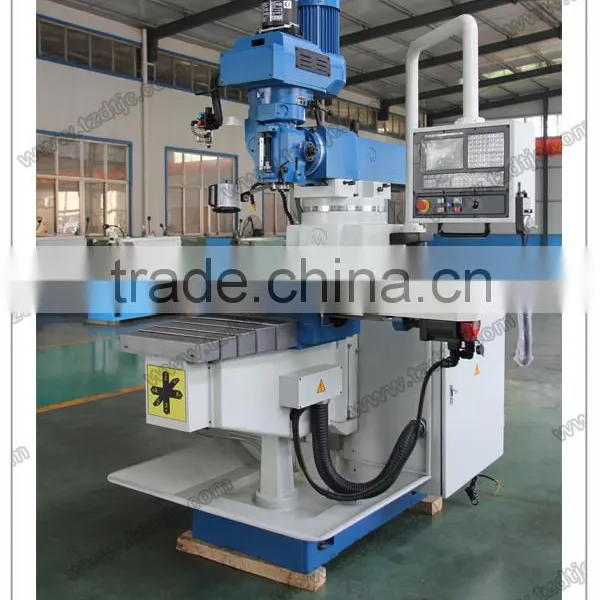

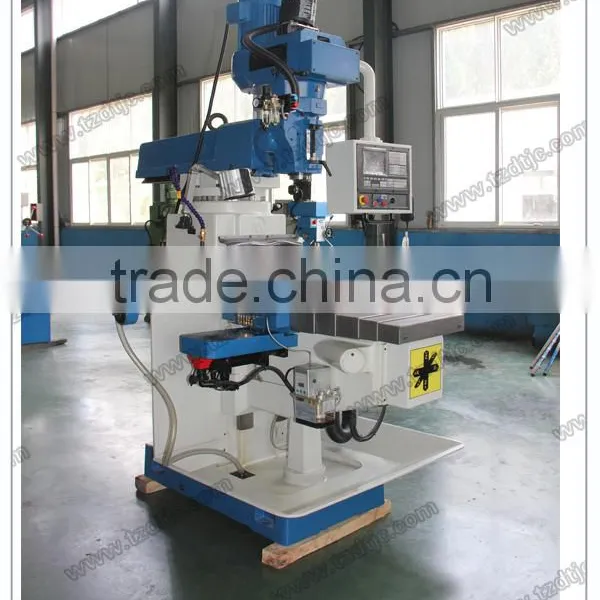

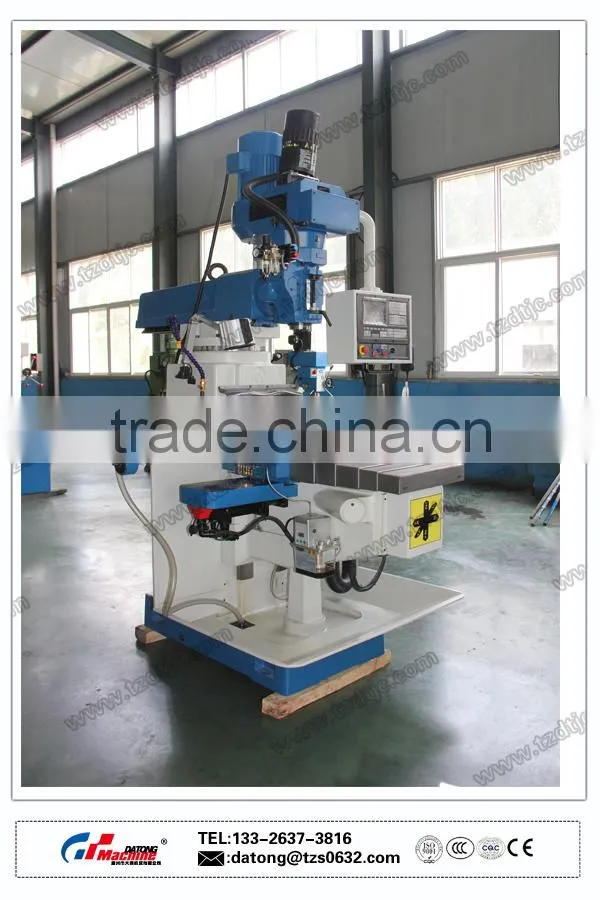

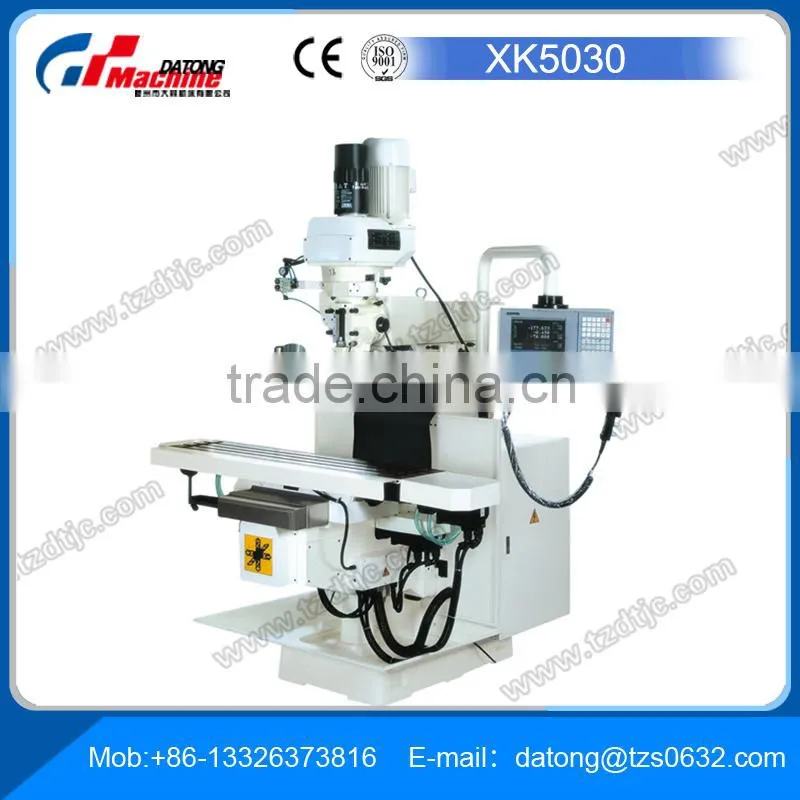

Vertical CNC Milling Machine XK5030
Features:
1.The spindle is Taiwan High speed precision milling head
2.A dividing head,can realize four anis linkage
3.X/Y/Z three axis ultra wide hard rail
4.The steel is good,simple operation
Specification:
| Modle | XK5030 |
Spindle Taper |
NT40 |
Diameter of Quill |
105mm |
Spindle Travel |
127mm |
Spindle Speed |
100-1000/1000-4000rpm |
Distance from Spindle nose to Table |
80-460mm |
Distance from Spindle nose to Column |
140-640mm |
Table Size |
1370*305mm |
Max Load of Worktable |
400kg |
T-Slot Size |
3-16mm |
Table Travel(X/Y/Z) |
700/380/380mm |
Rapid Movement of 3 Aixs |
5000/5000/1000mm/min |
Spindle Motor Power |
3.75kw |
X/Y/Z Axis Servo Motor Power |
1.6/1.6/2.4kw |
X/Y/Z Axis Servo Motor Torque |
10/10/15N.m |
Air Lock PSI |
>6kgs |
Single Setting Accurancy |
X:0.06 Y/Z:0.05mm |
Single Repeate Set Accurancy |
0.025mm |
Oppsite Tolerance of Axis |
0.025mm |
Overall Dimensions W*L*H |
1770*1580*2600mm |
N.W |
1720kg |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
