XA7140 Bed- Type Milling Machine

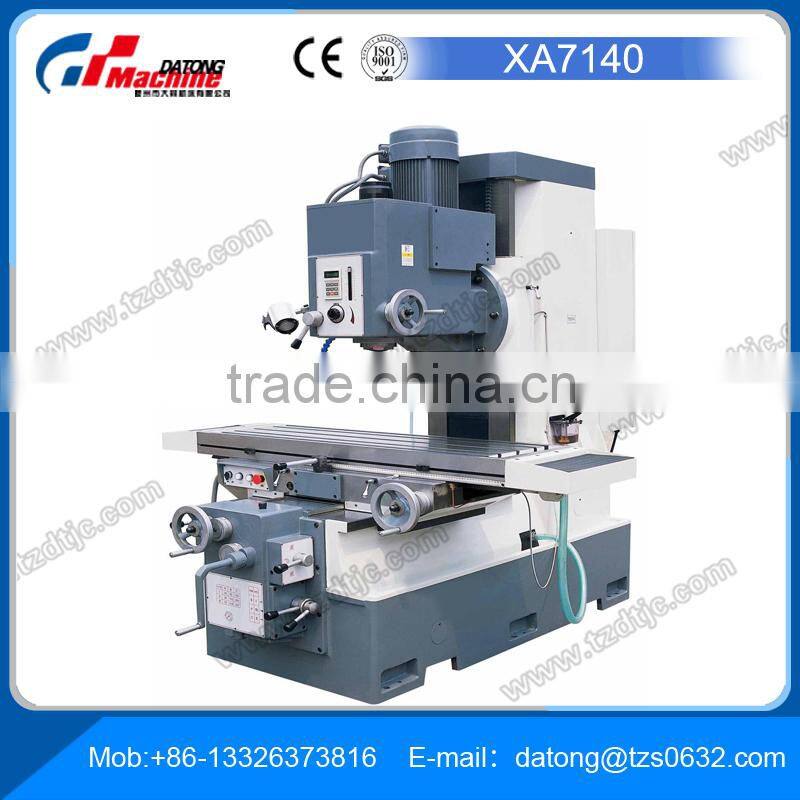

XA7140 Bed- Type Milling Machine photo-1
XA7140 Bed- Type Milling Machine photo-2
XA7140 Bed- Type Milling Machine photo-3
XA7140 Bed- Type Milling Machine photo-4
US$ 12,000 - 18,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
DATONG
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name DATONG
Model Number XA7140
Type Vertical
CNC or Not Normal
Voltage 380V
Power(W) 7.5KW
Dimension(L*W*H) 2290X1840X2120mm
Weight 3860kg
Certification ISO9001 CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

 XA7140 Bed- type milling machine



Features:



1.MEEHANITE cast-iron construction;


2.Hardened and ground table surface;


3.Headstock swivel +/-30 degrees;


4.Infinitely variable speed



5.Rectangular guideways y.z with high rigidity.







unitXA7140
Table sizemm1400x400
T slot   no3
Size ( Width )mm18
Centre distancemm100
Max. load of Tablekg800
Longitudinal travelmm800( standard)/1000(optional)
Cross travel mm400/360(with DRO)
Vertical travelmm150-650
Spindle taper ISO50
quill travelmm105
spindle speed /steprpm18-1800/stepless
spindle axis to column surfacemm520
spindle nose to table surfacemm150-650
Longitudinal/cross feedmm / min18-627/9
Vertical 18-627/9
Longitudinal/cross rapid speedmm / min1670
Rapid Traverse vertical 1670
main motorkw7.5
feed motorkw0.75
elevating motor for headstockKw0.75
coolant motorkw0.04
package dimensioncm226x187x225
overall dimensioncm229x184x212
N/Wkg3860



Detailed Images



XA7140 Bed- type milling machineXA7140 Bed- type milling machine

Packaging & Shipping

XA7140 Bed- type milling machineXA7140 Bed- type milling machine

Company Information

XA7140 Bed- type milling machine

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.

Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have collegeducation which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.

"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.

The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
