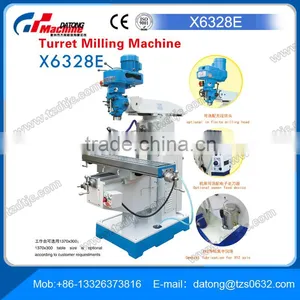

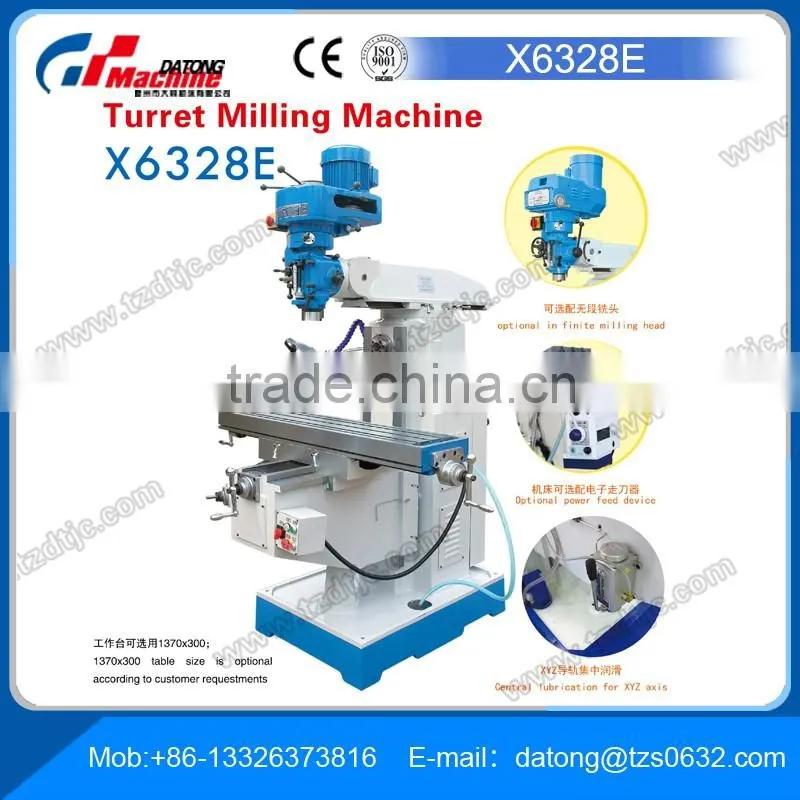

Universal Turret Gear Milling Machine X6328E
Feature:
1.Driven by Gear Power
2.Table automatic feed on X,Y,Z
3.Automatic rapid feed X,Y,Z
4.High speed millling head, optional in finite milling head
5.Motor: 3 kw
6.Easy control
7.Equipped with manual lubricating device, the lubrication on the lead screw and guideway
8.Cast iron with high precision, long service life
Specification:
Model |
X6328E-1 |
Table sizes |
1270X280mm |
T-slots(NO./width/pitch) |
3/14/70 |
Table travel (X/Y/Z) |
800/420/420mm |
Spindle speed range |
V: 80-5440rpm,16steps or stepless H: 45-1350rpm,12steps |
Spindle taper |
V: ISO30 or R8 H: ISO40 |
Spindle travel |
127mm |
Automatic feed of spindle |
0.045/0.086/0.142mm/r |
|
Max.swivel angle of spindle |
right and left:±90° front and back:±45° |
Distance between horizontal nose and table surface |
10-430mm |
Distance from spindle nose to work surface |
140-560mm |
Main motor power |
(V):3.0HP (H):3.0kw |
Overall size |
1850X1750X2250mm |
Net weight |
1500kg |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
