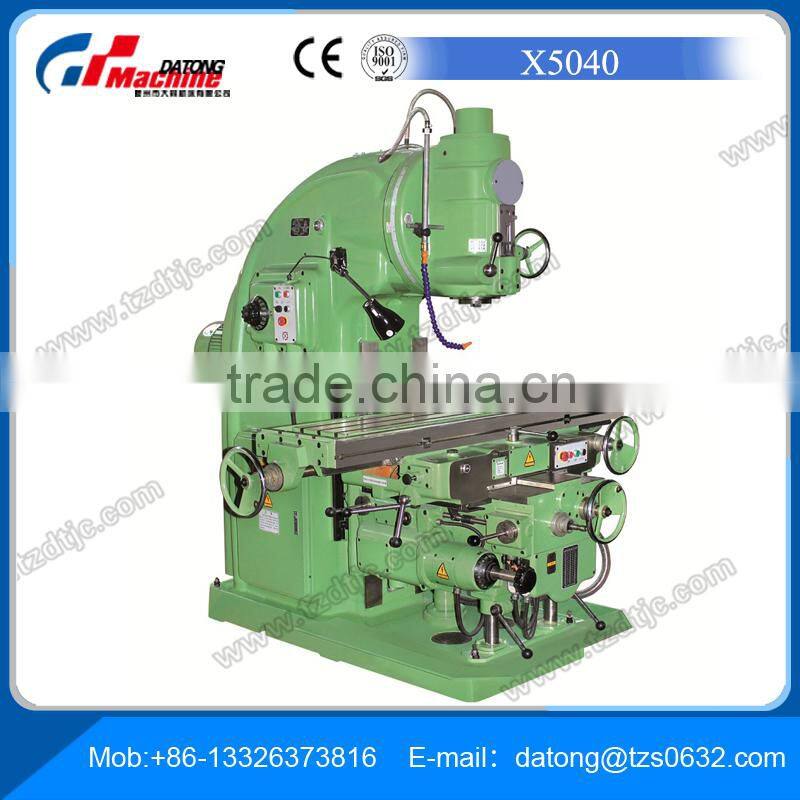

Help CenterX5040 Vertical Knee-type Milling Machine For Sale
Related Products
-
Vertical Turret Milling Machine X6325US$ 5,000 - 20,000MOQ: 1 Set -
Radial Arm Turret Milling Machine X6128E-1US$ 5,000 - 20,000MOQ: 1 Set
-
Vertical Turret Bed Type Milling Drilling Machine X713 For SaleUS$ 1,000 - 10,000MOQ: 1 Set
-
Universal Turret Milling Machine SM6325US$ 5,000 - 20,000MOQ: 1 Set
-
Swivel Head Type Multipurpose Milling Machine XL6430US$ 5,000 - 20,000MOQ: 1 Set
| Units | X5040 | |
Table size |
mm | 1700x400 |
| No.of T-slots | 3 | |
| Width of T-slots | mm | 18 |
| Max load | kg | 800 |
| Longitudinal travel(manual/auto) | mm | 900/880 |
Cross travel(manual/auto) |
mm | 315/300 |
| Vertical travel(manual/auto) | mm | 385/365 |
| Rapid feed speed | mm/min | X:2300,Y:1540,Z:770 |
| Spindle speed range | r/min | 30-1500 |
| Spindle speed step | steps | 18 |
| Spindle travel | mm | 85 |
| Max.swivel angle of spindle | ±45 | |
| Distance between spindle nose and table surface | mm | 30/500 |
| Power of spindle motor | kw | 11 |
| Overall dimensions(LxWxH) | mm | 2556X2159X2298 |
| Net weight | kg | 42 |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
