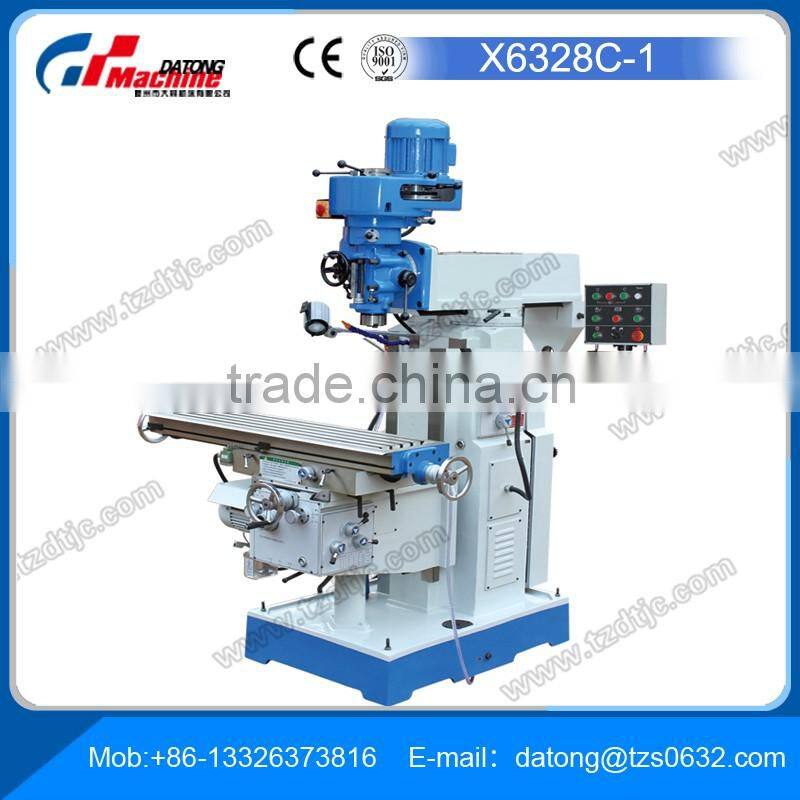

Universal Drilling Milling Machine X6328C-1
Feature:
Its ideal machine tool for machinery, light industry, instrument, motor, electrical appliance, die and moulds.The machine is suitable for milling flat, inclined surfaces and slots on miscellaneous workpieces of various metals by means of cylindrical or angle milling cutter in either down-milling or up-milling.It is characterized by stabilizing precision, sensitive response, light in weight, power feed and rapid adjustment in longitudinal, cross, vertical traverse. Equipped with various accessories, it can be applicable to versatile processing.
1.Turret milling machine.
2.Hardened and ground guideways
3.Table automatic feed on X,Y,Z
Specification:
Model |
X6328C |
X6328C-1 |
Table size |
1200x280mm |
1200x280mm |
Table travel(X. Y. Z) |
620/260/400mm |
620/260/400mm |
T-slots(NO: /width/pitch) |
5/14/50mm |
5/14/50mm |
Spindle nose to table surface |
90~490mm |
70~470mm |
|
Distance between horizontal spindle and table surface |
0~305mm |
0~305mm |
Spindle speed range |
(8steps) 115~1750rpm (V); (12steps) 45~1350rpm (H) |
(16steps) 80~5520rpm (V); (12steps) 45~1350rpm(H) |
Spindle taper |
MT4 (V) ;IS040 (H) |
R8/IS040(V) ;IS040 (H) |
Table feed |
30~855mm/min |
30~855mm/min |
Take-off and landing platform feed |
9~270mm/min |
9~270mm/min |
|
Distance between horizontal spindle and ram surface |
215mm |
215mm |
Main motor power |
1.85/1.5kw(V); 2.2kw(H) |
2.2kw(V); 2.2kw(H) |
Overall Dimension |
1750x1450x2150mm |
1750x1450x2200mm |
Net weight |
1420kg |
1420kg |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
