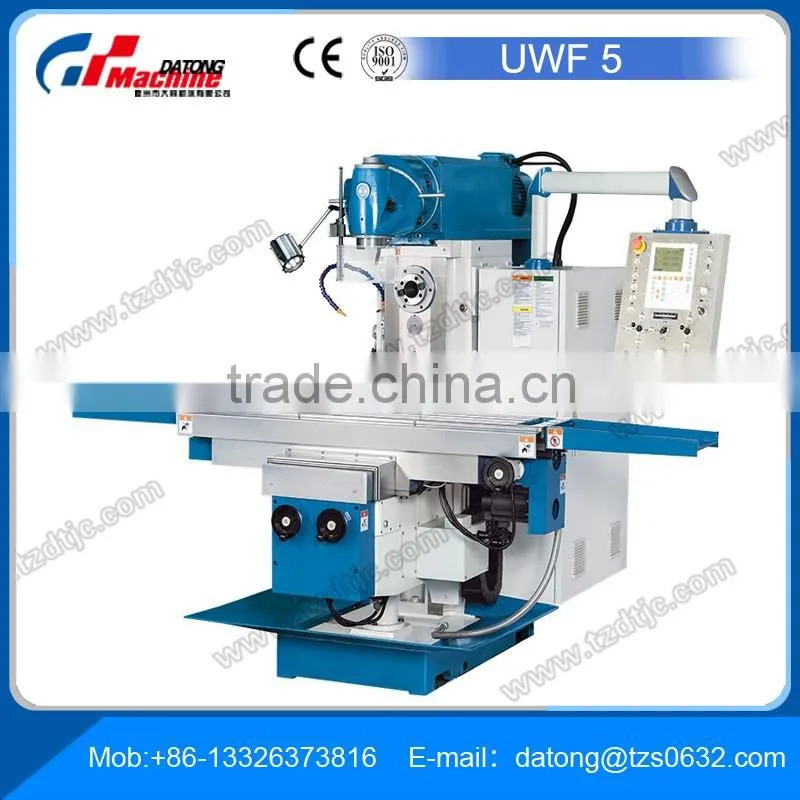

Universal Milling Machine UWF 5 for sale
Feature:
1.Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
2.Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance
3.Large work area of 1325 x 360 mm and up to 500 kg table load capacity
4.Quiet, precision-made headstock gears with hardened and ground gears

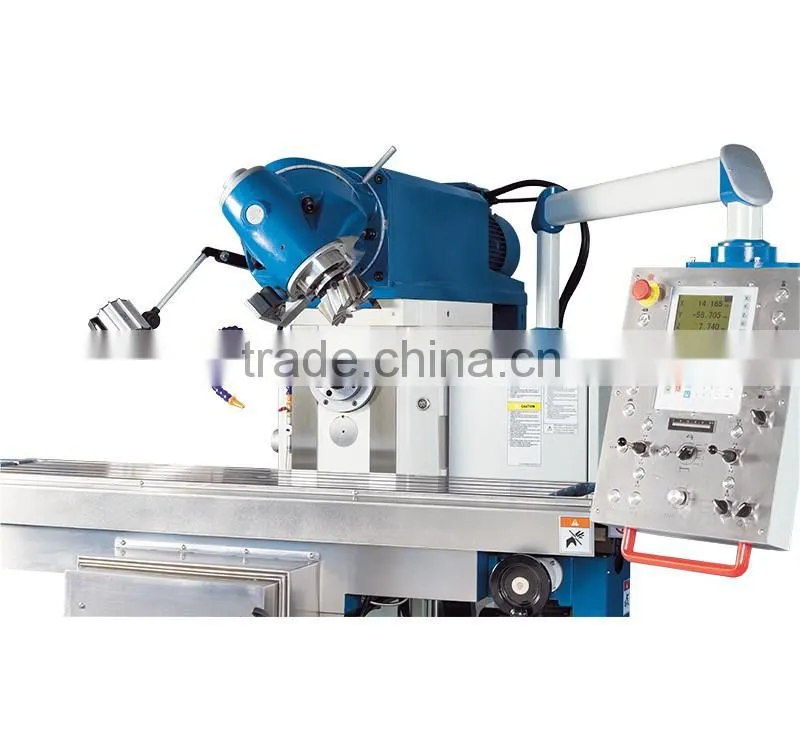

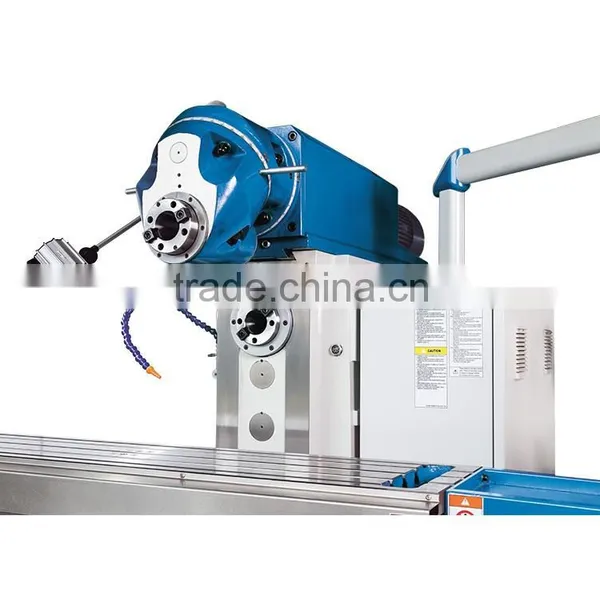

5.Universal cutter head swivels on 2 levels - quick change-over from horizontal to vertical machining
6.By combining both swivel levels, almost any spatial angle can be set

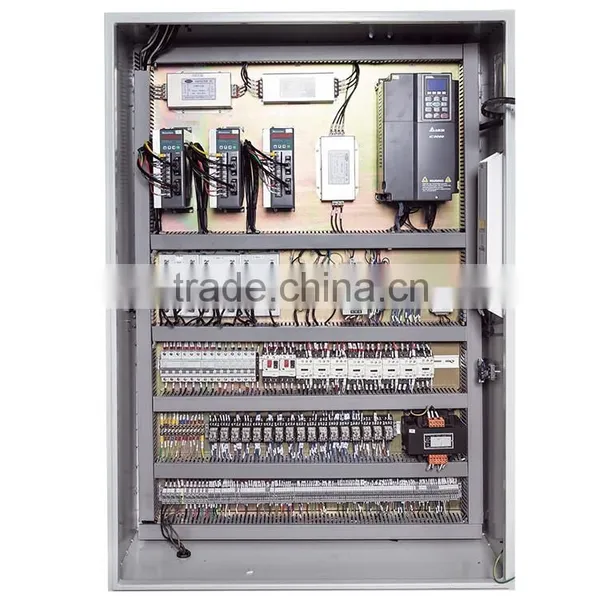

7.Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
8.Telescoping covers on the Y axis protect the feed spindle

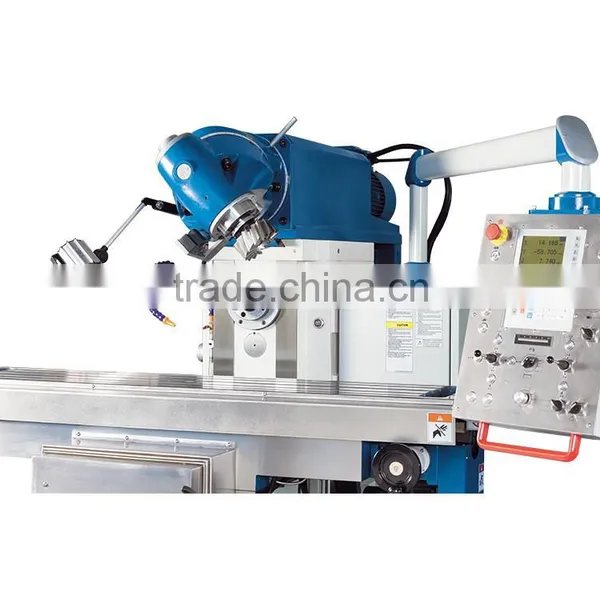

9.Control panel swings out to either side and features an integrated position indicator
10.5.5 kW main drive guarantees high torque
11.Coolant system and chip tray are included
Specification:
| Model | UWF 5 |
| Table dimensions | 1325X360mm |
| Table load capacity (max.) | 500kg |
| Number of T-slots /width/spacing | 3/18/80mm |
| Travel X/Y/Z axis | 750/280/390mm |
| Speed range(milling head) | (12) 60 - 1750 rpm |
| Spindle mount (milling head) | SK 50 |
| Swivel angle | 360 ° |
| Spindle centre-to-table surface distance | 175 - 565 mm |
| Spindle speed (horizontal) | (12) 60 - 1.800 rpm |

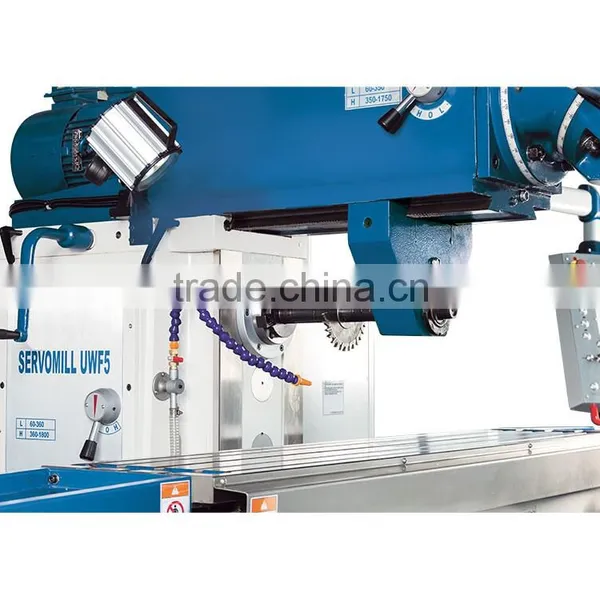

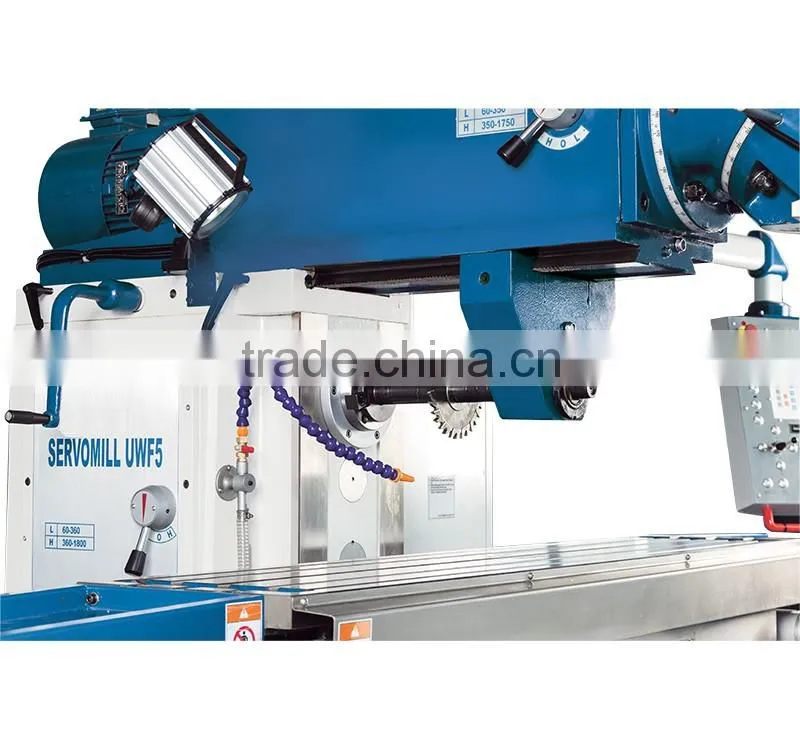

| Spindle mount (horizontal) | SK 50 |
| Throat | 380 - 930 mm |
| Rapid feed X/Y/Z axis | 1200/800/600mm/min |
| Feed speed X axis | 30 - 750 mm/min |
| Feed speed Y axis | 20 - 500 mm/min |
| Feed speed Z axis | 15 - 375 mm/min |
| Motor rating horizontal/vertical spindle | 5.5/4KW |
| Motor rating X/Y/Z axis feed | 1.5kw |
| Motor rating coolant pump | 0.09kw |
| Overall dimensions (length x width x height) | 1800x2100x2000 mm |
| Weight | 2885kg |
Standard Equipment:
3-axis position indicator, reducing sleeve ISO 50 / MT4, milling arbors (24, 32 mm), outer arbor support for horizontal milling, ISO 50 collet chucks incl. collets up to 16 mm (8 pieces), coolant system, work lamp, chip tray, draw bar, operating tools, operator manual
