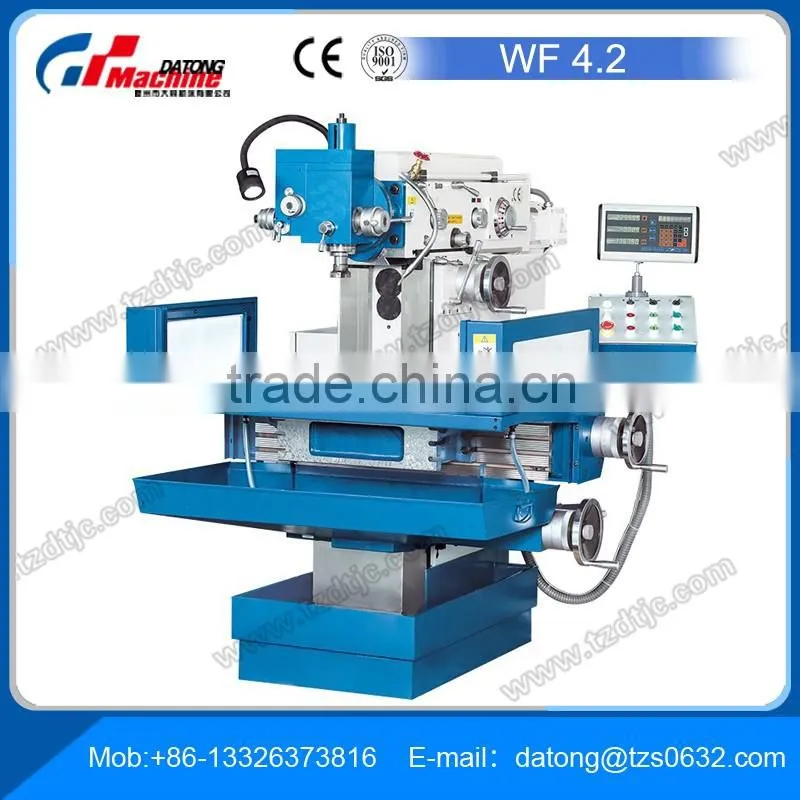

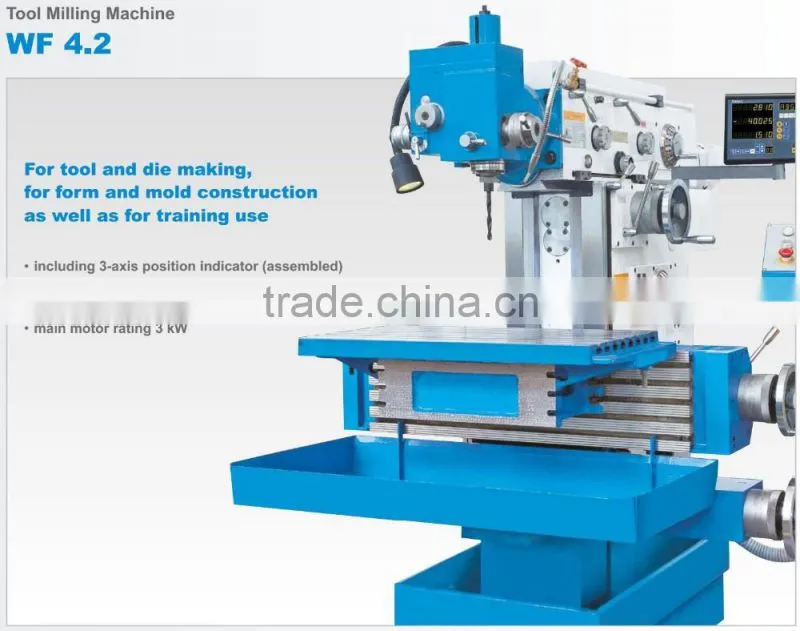

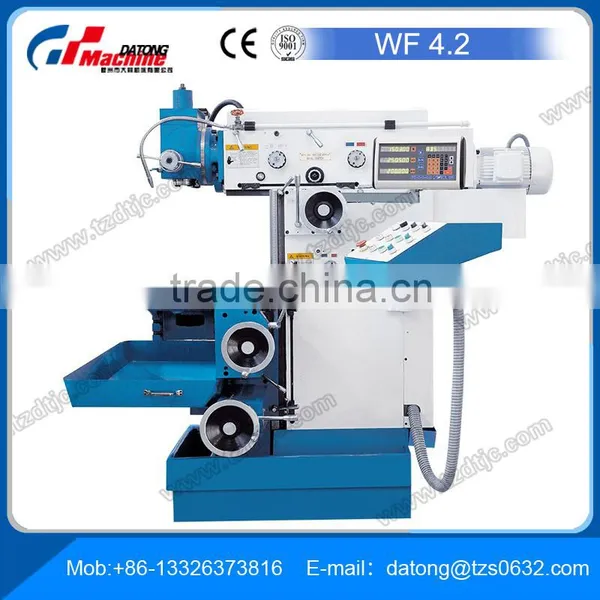

Tool Milling Machine WF 4.2 for sale

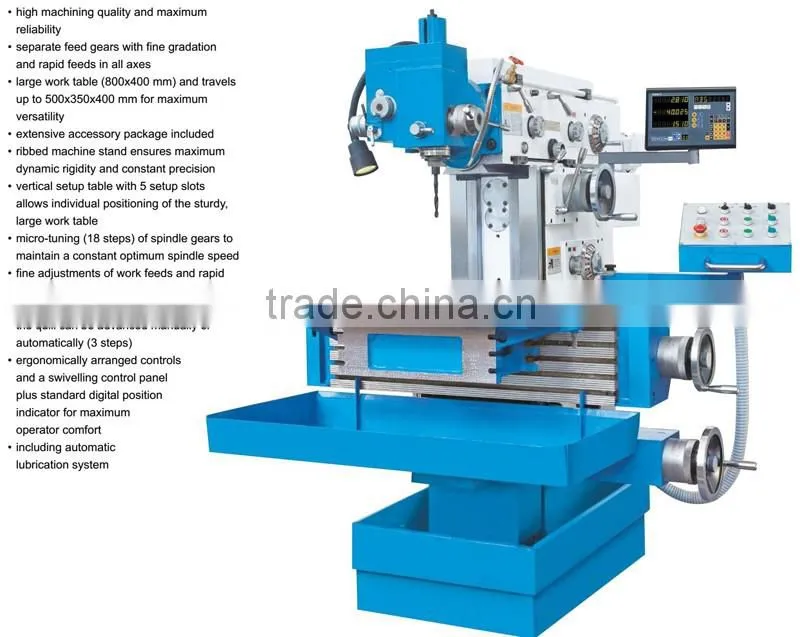

Feature:
1.The machine frame is made of a heavy cast-iron structure with ribbing for excellent damping properties and rigidity
2.Wide, vertical console with 5 setup slots allows individual positioning of the rigid, large work table with a setup area of 800 x 400 mm and the use of other setup fixtures
3.Powerful, variable speed spindle servo-motor with automatic back gearing ensures a wide speed range and high torque at the main spindle

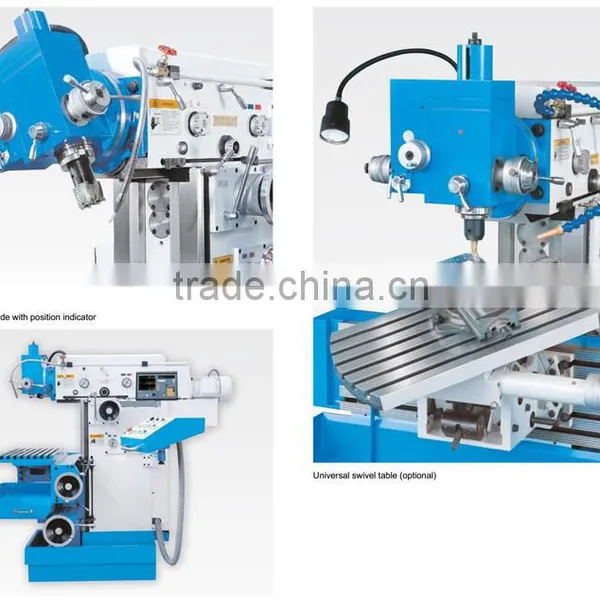

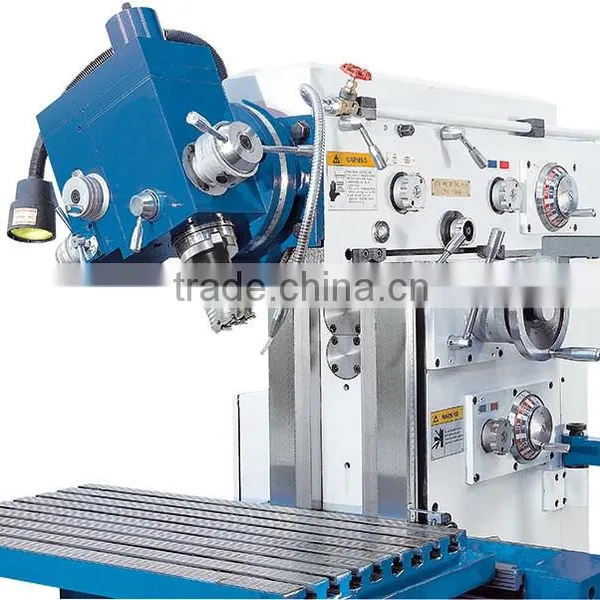

4.Manual quill feed and vertical cutter head angle adjustments from 0 to +/-90° for drilling operations
5.All axes are driven by highly reliable servo-motors and feature low-maintenance, wear-resistant preloaded ball screws
6.Die elektronischen Handräder sind intuitiv bedienbar wie bei konventionellen Fräsmaschinen angeordnet
7.The swiveling control panel combines all control elements at a centrally accessible location and features an integrated digital position indicator
8.Practical partial enclosure provides protection from chips and coolant
9.Including central lubrication system
Specification:
| Model | WF 4.2 |
| Table dimensions | 400X800mm |
| Table load capacity (max.) | 250kg |
| Number of T-slots /width/spacing | 5/14/45mm |
| Throat | 187 - 527 mm |
| Travel X/Y/Z axis | 490/340/385mm |
| Speed range(horizontal) | 32 - 3200 rpm |
| Spindle mount (horizontal) | SK 40 |
| Spindle speed (vertical) | 40 - 4000 rpm |
| Spindle mount (vertical) | SK 40 |
| Quill stroke | 80mm |
| Throat | 425 mm |
| Spindle nose-to-table surface distance | 25 - 410 mm |
| Head swivel range | +/- 90° |
| Rapid feed X/Y/Z axis | 3000/3000/2000mm/min |
| Feed speed X/Y/Z axis | 0- 1000 mm/min |
| Motor rating main drive | 7.5KW |
| Main drive, continuous load | 5.5kw |
| Overall dimensions (length x width x height) | 2000x2050x2330 mm |
| Weight | 2000kg |
Standard Equipment:
3-axis position indicator, electronic hand-wheels, chip tray, workspace enclosure, work lamp, coolant system, automatic central lubrication, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
