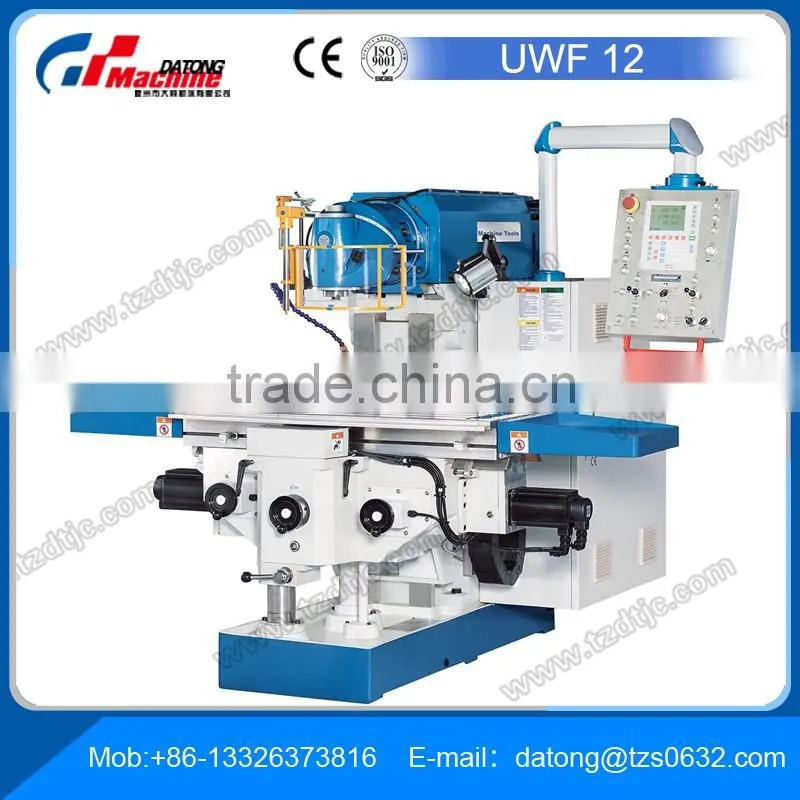

Universal Milling Machine UWF 12 for sale
Feature:
Conventional milling, now easier, more precise and more efficient due to integrated electronics
1.The Servomill represents a new generation of advanced milling machines that are operated like a conventional machine
2.This machine features a user-friendly design, significantly higher precision and increased machining capacity
3.Very high reliability and long service life of all components ensure drastically reduced maintenance and increased availability
4.Rigid, torsion-proof construction with dovetail guide on X axis, and wide square guides on Y and Z
5.Large work table and long travels on all axes
6.All guides are hardened and ground, and are supplied with oil by a central lubrication unit

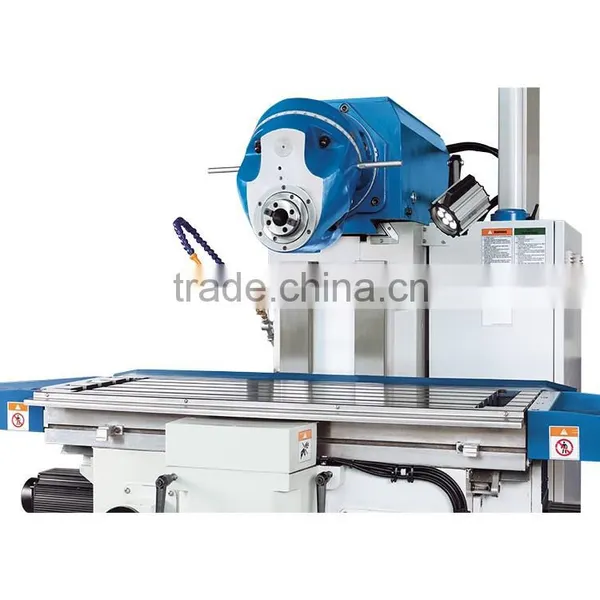

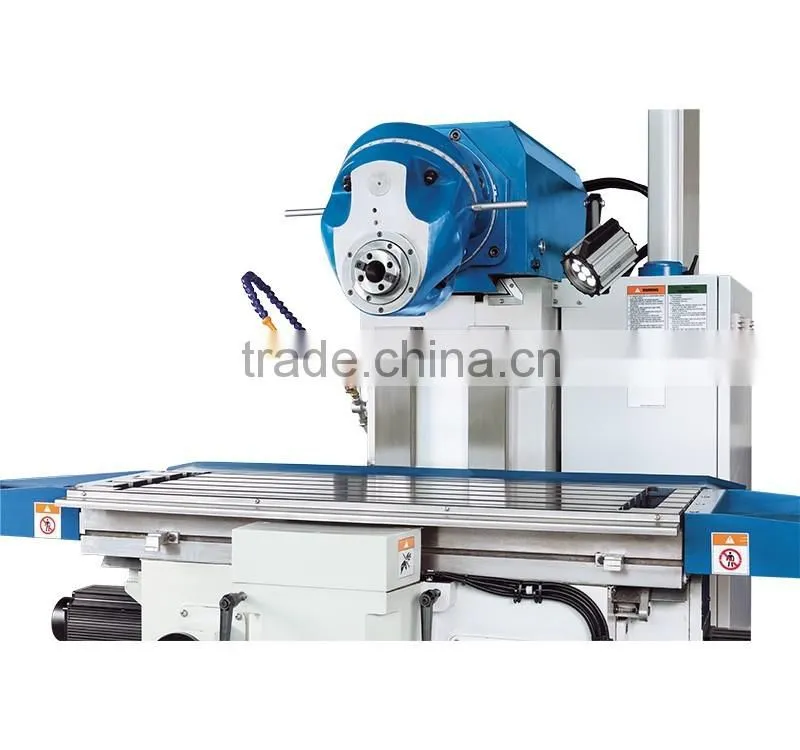

7.Universal swivel head swings easily to a horizontal position
8.Infinitely variable feed speeds and rapid feeds can be synchronized to spindle speed by the push of a button
9.Preloaded ball screw - zero-backlash - preloaded for easy and precise feeds
10.Robust transmission with hardened and ground gears
Specification:
| Model | UWF 12 |
| Table dimensions | 1600X500mm |
| Table load capacity (max.) | 1000kg |
| Number of T-slots /width/spacing | 5/18/80mm |
| Travel X/Y/Z axis | 1200/700/500mm |
| Speed range(2step) | 30-390 / 390-2050 rpm |
| Spindle mount | SK 50 / DIN 2080 |
| Swivel angle | 360 ° |
| Spindle centre-to-table surface distance | 50 - 550 mm |
| Rapid feed X/Y/Z axis | 2200/2200/1100mm/min |
| Feed speed X/Y/Z axis | 10- 1000 mm/min |
| Feed speed Z axis | 5-500mm/min |
| Motor rating main drive | 11KW |
| Overall dimensions (length x width x height) | 2200x2500x2100 mm |
| Weight | 4500kg |
Standard Equipment:
3-axis position indicator, electronic hand-wheels, chip tray, work lamp, central lubrication, coolant system, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
