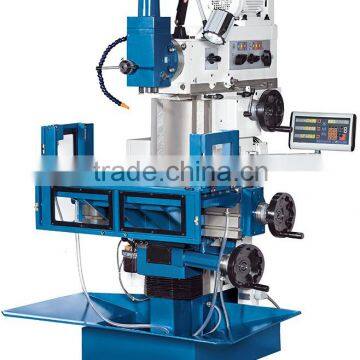

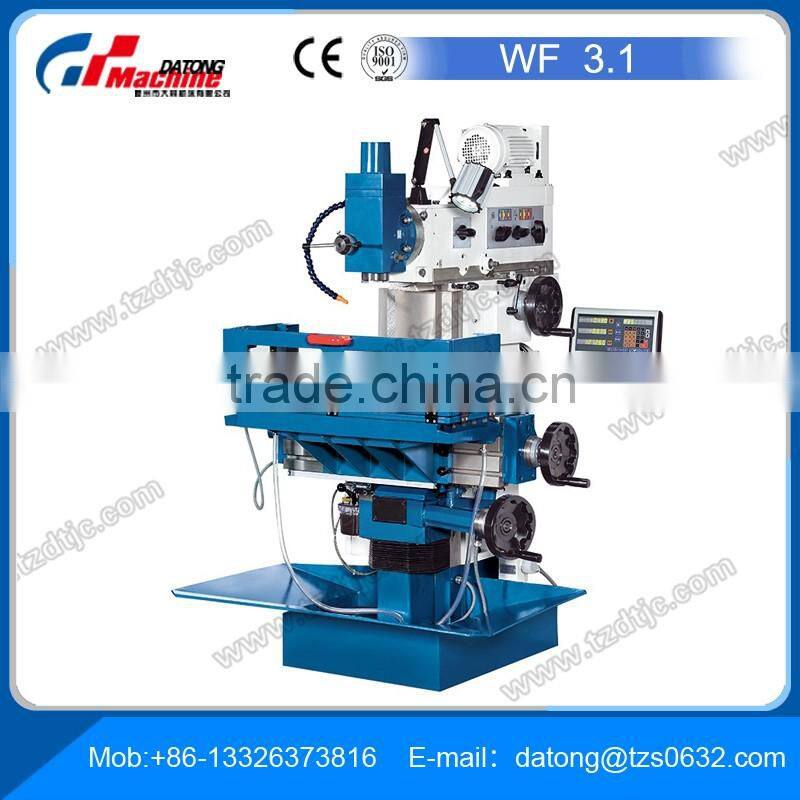

Tool Milling Machine WF 3.1 for sale

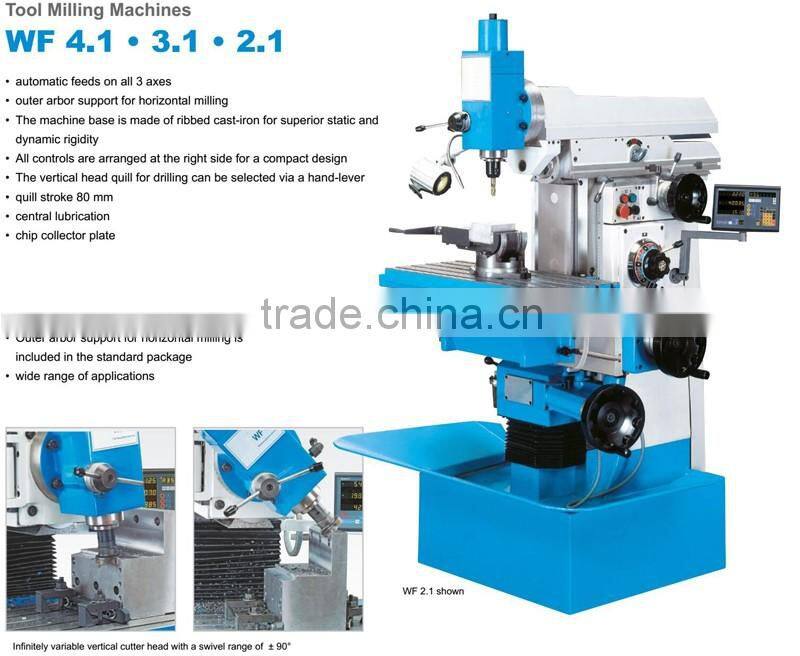

Feature:
1.Automatic feeds on all 3 axes

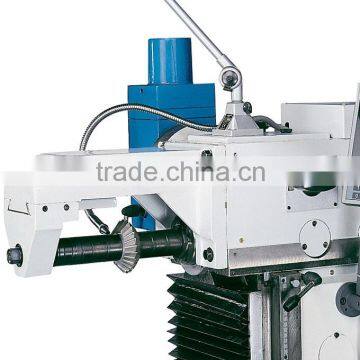

2.Outer arbor support for horizontal milling
3.Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity
4.Optimum layout of operating controls on the right-hand side
5.Vertical head quill for drilling, with hand lever feed
6.Quill stroke 80 mm
7.Central lubrication
8.Chip collector pan
Specification:
| Model | WF 3.1 |
| Table dimensions | 750X320mm |
| Table load capacity (max.) | 160kg |
| Number of T-slots /width/spacing | 5/14/63mm |
| Vertical table | 830x225 mm |
| T-slots, vertical table | 3x14x63 mm |
| Travel X/Y/Z axis | 405/305/400mm |
| Horizontal spindle-to-table surface distance | 85- 485 mm |
| Spindle speed (vertical) | (18) 40 - 2000 rpm |
| Quill stroke | 80mm |
| Throat | 425 mm |
| Spindle mount (vertical) | SK 40 |
| Spindle nose-to-table surface distance | 50 - 450 mm |
| Rapid feed X/Y/Z axis | 1200mm/min |
| Feed speed X/Y/Z axis | 10- 380 mm/min |
| Motor rating main drive | 2.2KW |
| Motor rating vertical spindle | 0.55kw |
| Overall dimensions (length x width x height) | 1215x1200x1800 mm |
| Weight | 1300kg |
Standard Equipment:

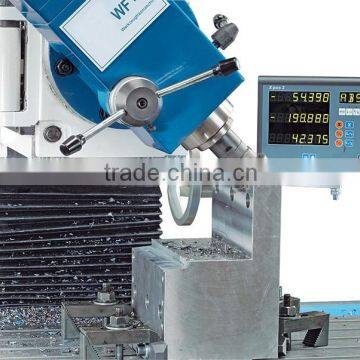

position indicator, 4 cutter arbors Ø (16, 22, 27, 32 mm), reducing sleeves MT1, MT2, MT3, collet chuck with collets (2,3,4,5,6,8,10,12mm diam.), draw bar, vibrating elements, coolant system, chip tray, outer arbor support for horizontal milling, work lamp, operator manual, operating tools
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
