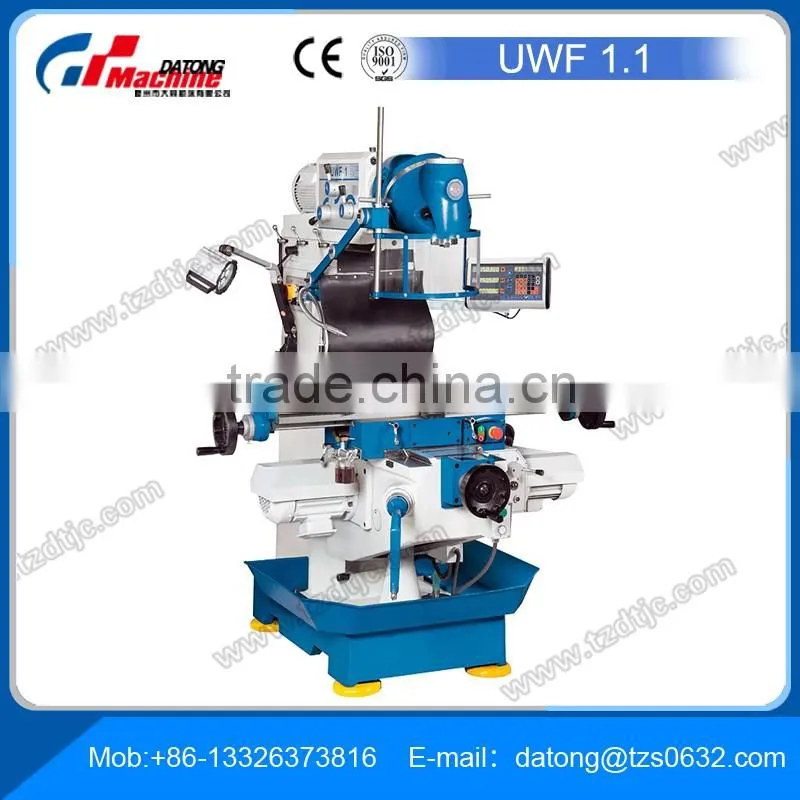

Universal Milling Machine UWF 1.1 for sale
Feature:
1.Heavy machine frame with wide, adjustable dovetail guides in all axes

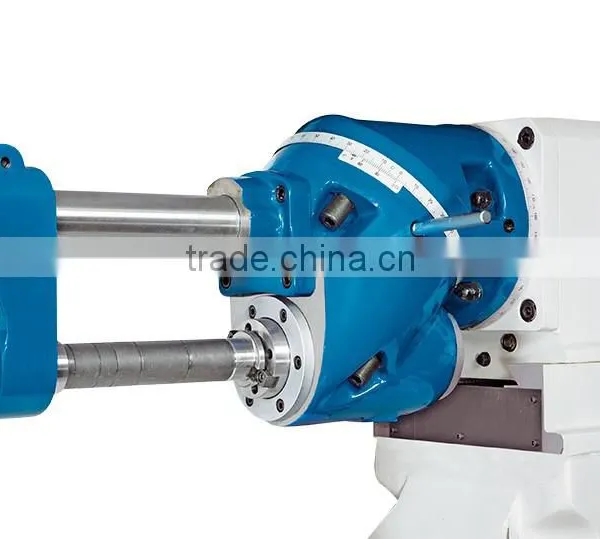

2.Rigid universal cutter head, can be moved to virtually any spatial angle on two levels
3.Automatic table feed on X and Y axes, including rapid feed

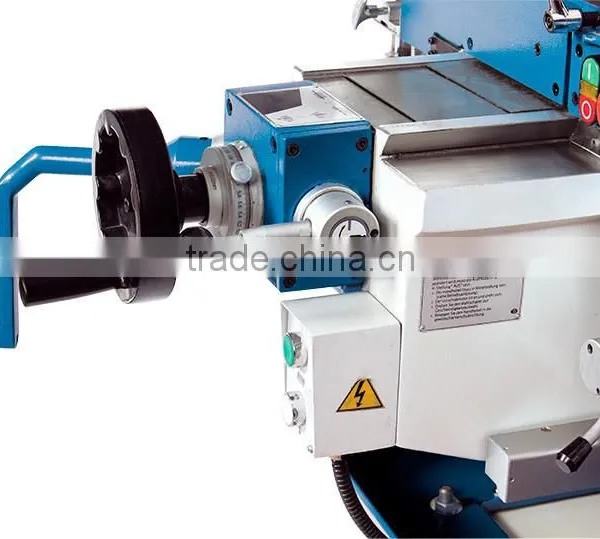

4.Motorized height adjustment in Z direction
Specification:
| Model | UWF1.1 |
| Table dimensions | 1120X260mm |
| Table load capacity (max.) | 250kg |
| Number of T-slots /width/spacing | 3/14/63mm |
| Travel X/Y/Z axis | 600/254/380mm |
| Speed range(Vertical milling head) | 45 - 1660 rpm |
| Spindle mount (milling head) | DIN2080/SK 40 |
| Vertical Spindle to table surface distance | 100 - 480 mm |
| Throat | 60 - 500 mm |
| Milling head swivel range | 360 ° |
| Rapid feed X/Y/Z axis | 402/402/422mm/min |
| Feed speed X axis | (9) 24 - 402 mm/min |
| Feed speed Y axis | (9) 24 - 402 mm/min |
| Motor rating main drive | 2.2kw |
| Overall dimensions (length x width x height) | 1660x1500x1730 mm |
| Weight | 1480kg |
Standard Equipment:

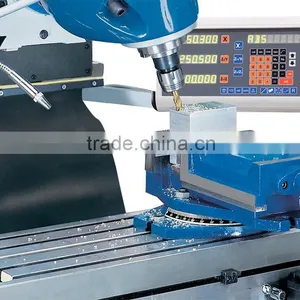

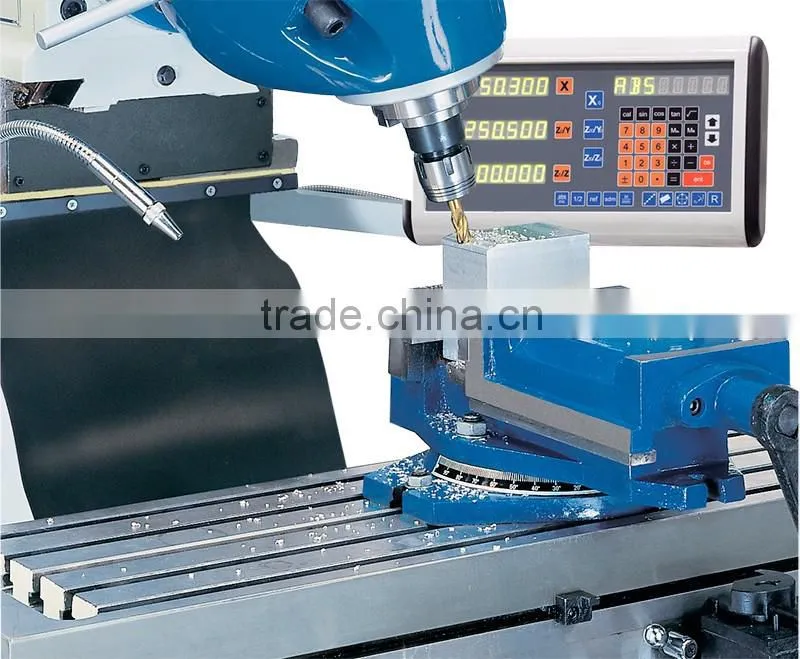

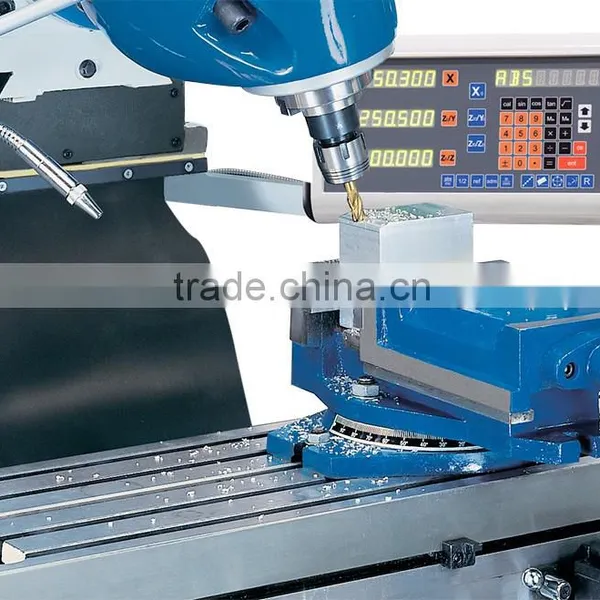

3-axis position indicator, outer arbor support for horizontal milling, milling chuck with collets 4,5,6,8,10,12,14,16 mm, long cutter arbor Ø 32 mm, coolant system, work lamp, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
