Home > Products > Metal Cutting Machineary > VB 360 Vertical Metal Band Saws with Proven Solid Construction, including Band Saw Blade Welder

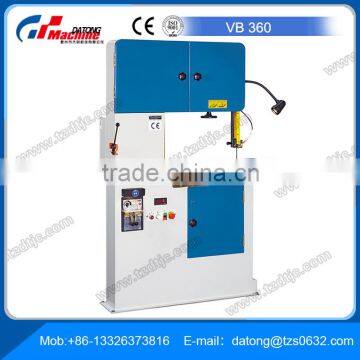

VB 360 Vertical Metal Band Saws with Proven Solid Construction, including Band Saw Blade Welder
- 200 Set / Sets per Month
- Tianjin.Qingdao.Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Semi-Automatic Horizontal Miter Band Saw HBG 280
-
KKS 315 Metal Circular Saw Rigid, Reliable and Maximum Angle Precision
-
Metal Circular Saw KHK 350 Semi-automatic Circular Saw with pneumatic part clamping Quality Choice
-
Horizontal Miter Band Saw SBS 260 Flexible, proven and easy to handle
-
Horizontal Miter Band Saw SBS 210 Flexible, proven and easy to handle
-
Horizontal Dual Miter Band Saw SBS 310 Workshop band saw offers high flexibility and frame swivels to both sides for dual miter
Product Details
Condition | New | Type | Band Saw | |
Use | Metal Cutting | Style | Vertical | |
Place of Origin | Shandong, China | Brand Name | DATONG | |
Model Number | VB 360 | Usage | Cutting, VB 360 Vertical Metal Band Saws for sale | |
Voltage | 400V | Power(W) | 0,75 kW | |
Dimension(L*W*H) | 360x690x1.735 mm | Weight | 250 kg | |
Certification | CE ISO | Warranty | 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
VB 360 Vertical Metal Band Saw for sale
Feature:
1.Ttorsionally rigid steel construction
2.Table tilts ±15° in all directions
3.Increased cutting precision
4.Functional and practical design
5.High-precision blade guides with carbide-tipped back-roller
6.Blow-out feature results in improved cut control
7.Replaceable plastic bandage
8.Hand wheel for quick blade tension adjustments
9.Blade welder with stress relief, saw-shears, grinding stone, chip box
Specification:
Working area Table dimensions Table-adjustment Table height | 500x400 mm 15 ° 960 mm |
---|---|
Cutting capacities Cutting capacity height x throat Cutting speed | 230x355 mm 20 - 90 m/min |
Drive capacity Motor rating main drive Motor rating grinding Blade welder capacity Supply voltage | 0,75 kW 0,09 kW 2,4 kVA 400 V |
Measures and weights Blade length Blade width Overall dimensions (length x width x height) Weight | 2.870 mm 3 - 16 mm 360x690x1.735 mm 250 kg |
Standard Equipment:
1 saw blade, saw band welder assembly, work lamp
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
