Specifications:
CNC automatic feeding and cutting
With hydraulic clamping vice
With automatic rotary saw bow
1. With deceleration variable frequency motor
2. The maximum length of an automatic feed us to 650mm
3. The maximum processing capability is 18 inch.

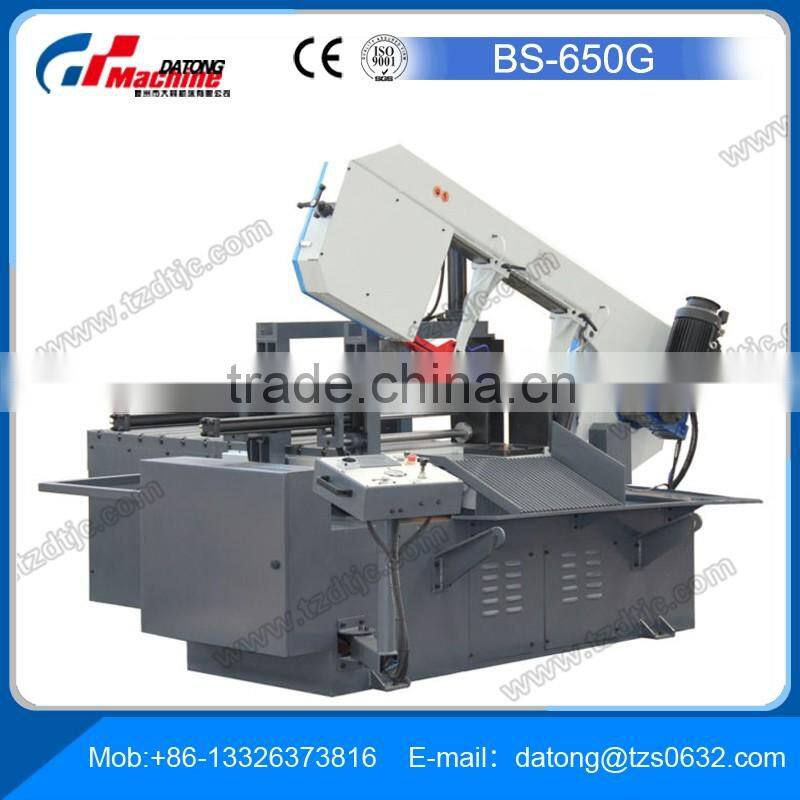

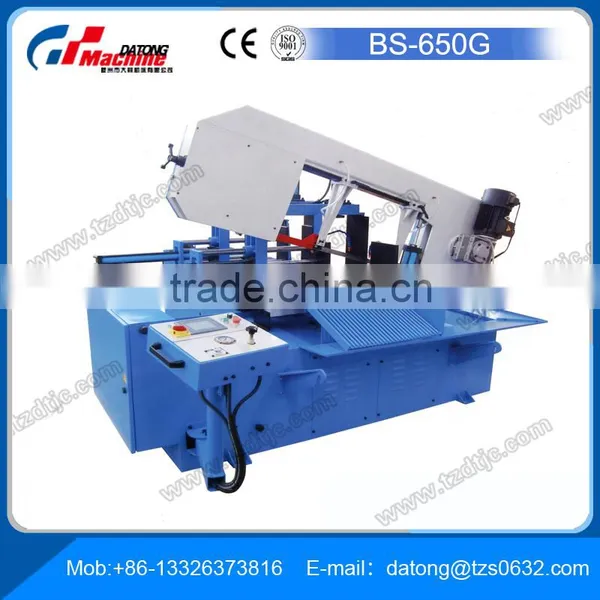

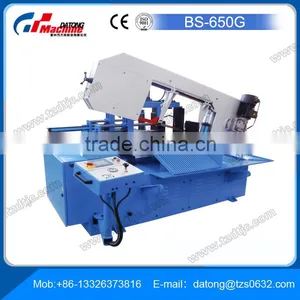

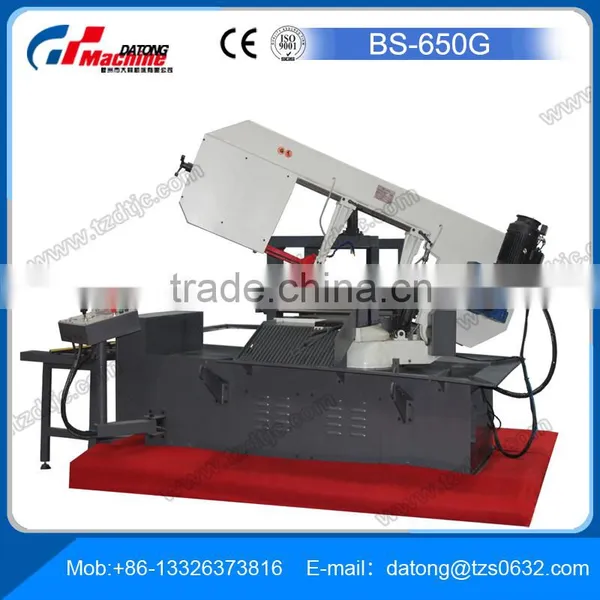

4. The precise CNC band saw BS650G has a hydraulic control system that can automatically feed and clap materials, rotate, cut.
5. Our CNC band saw has a variable speed gear motor that determines the rotation rate of saw blade.
6. Hydraulic pressure controls the rotation of saw bow. The maximum feeding length is 650mm
7. The cooling system of our CNC band saw prolong the service life of saw blade and improve the precision of the workpiece
8. Main technical parameter
Model |
BS-650G |
|
Capacity |
Circular @90° |
460mm(18”) |
Rectangular @90° |
650mmx350mm |
|
Circular @60°(Right) |
310mm |
|
Rectangular @60°(Right) |
310x350mm |
|
Circular @45°(Left & Right) |
460mm |
|
Rectangular @45°(Left & Right) |
460x350mm |
|
Blade speed |
23-95rpm |
|
Blade size |
34x1.1x5220mm |
|
Motor |
3.0 kW |
|
Drive |
Gear |
|
Packing size |
293x220x200cm |
|
N.W./G.W. |
2020/2320kg |
|
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
