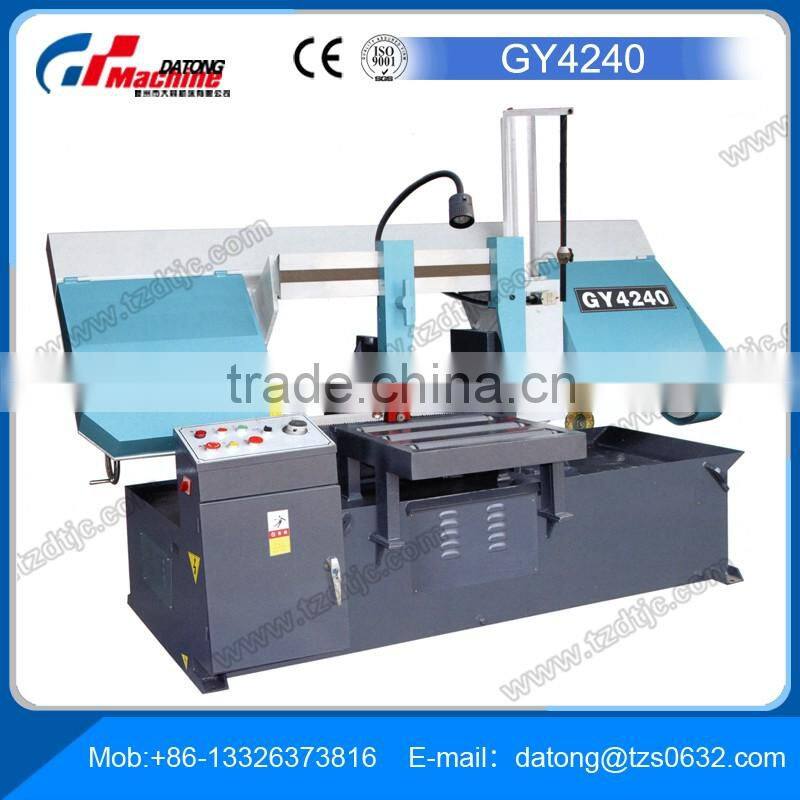

GY4240 Band Sawing Machine
Feature:
(1)Dual column type down feed system
(2)Adopts worm gear reducer, stable performance
(3)Adopts guides blocks, long service life of blade, narrow saw kerf
(4)Workpiece clamping manually or hydraulically with precision and stability
(5)Hydraulic cutting speed adjustment, variable speed adjusted by the belt pulley, optional inverter. The blade speed provided with 3-step speed, changed by the changing location of the V belt in the belt pulley.
Specification:
Model | GY4240 |
Capacity(mm) | Φ400 400H×500Wmm |
Blade Speed(m/min) | 20,33.,8,75 |
Blade Size(mm) | 4650×41×1.3 |
Main Motor | 4KW |
Hydraulic Motor | 0.75KW |
Coolant Motor | 900W |
Table Height | 610mm |
Workpiece Clamping | Hydraulically |
Blade Tensioning | Manual |
Floor Space(LxWxH)(mm) | 2500×1300×1600 |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
