CNC Vertical Machining Center - X.mill 1680 SI for sale
Feature:
1.Extra wide cast-iron frame with heavy ribbing minimizes vibrations, resonance and torsion to ensure maximum accuracy and optimum surfaces of the part
2.Extra-wide rectangular Y axis guideways ensure superior rigidity during heavy chip removal operations and allow machining of large and heavy parts
3.Extraordinary table load capacity up to 2200 kg
4.All guideways are ground, hardened and protected by premium stainless steel covers
5.Large, preloaded ball screws are driven directly by the servo motors
6.A powerful spindle motor provides 20.5 kW to ensure adequate power reserves
7.Easy access and reachability of the machine table were the focus during the design of the machine frame and work space in order to reduce down-times to a minimum
8.Includes chip conveyor

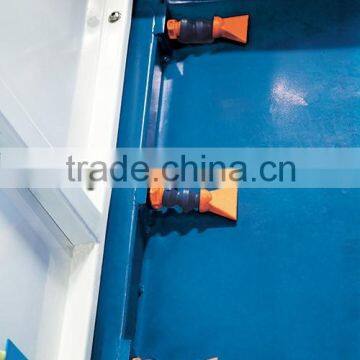

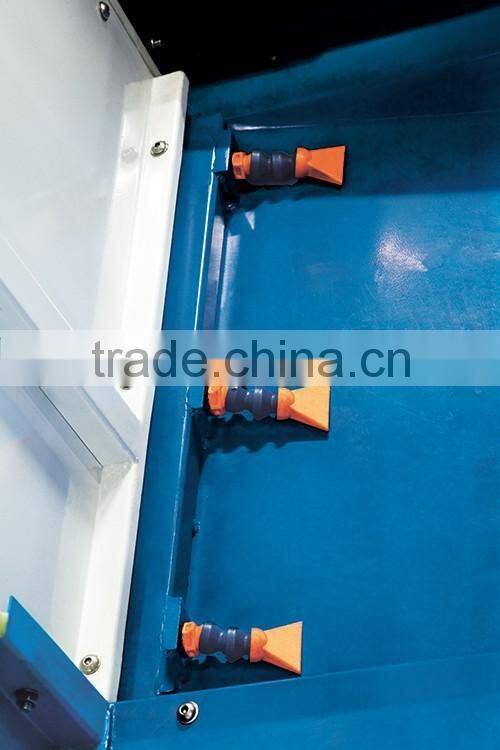

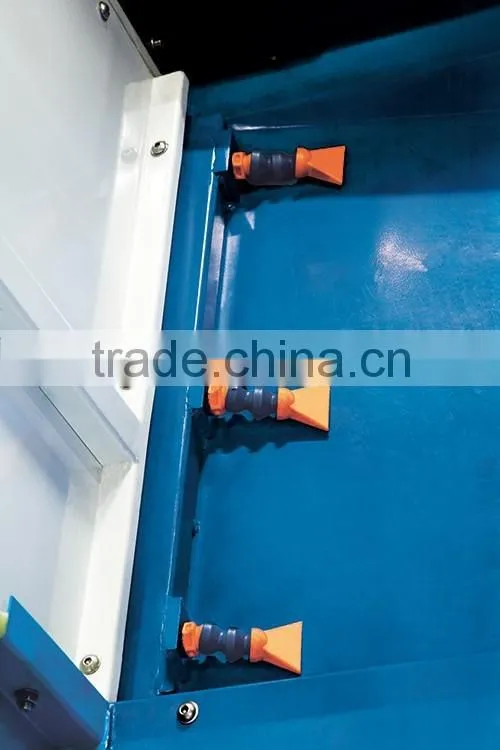

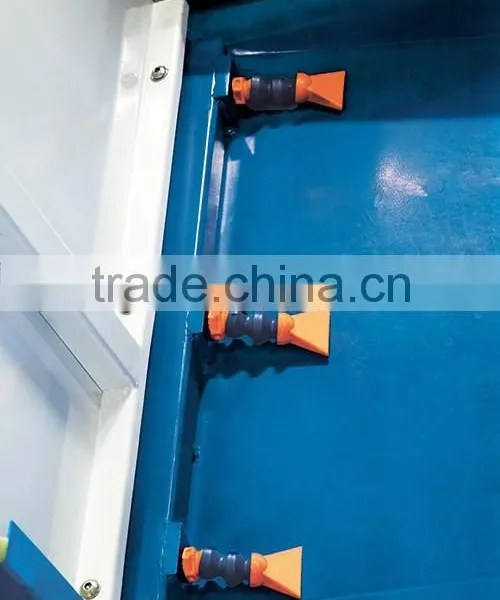

9.The chip tray is easily accessible and includes a powerful chip flushing system
10.A blow-out and coolant gun are within reach of the operator for quick and easy cleaning of the workspace and the workpieces
11.Automatic central lubrication for low maintenance is standard
12.A spindle blow-out system protects the tool mount from chips and coolant
Specification:
| Model | X.mill 1680 SI |
| Table set up area | 1700X820 mm |
| Table load capacity | 2200kg |
| Number of T-slots/Wideth/Spacing | 7/18/120mm |
| Spindle nose-to-table surface distance | 220-920mm |
| Throat | 900mm |
| Travel X/Y/Z axis | 1600/820/700m |
| Spindle speed | 6000rpm |
| Spindle mount | BT 50 |
| Rapid feed X/Y/Z axis | 15000mm/min |
| Work Feed X/Y/Z axis | 1-7000mm/min |
| Number of tool stations | 24 Pieces |
| Tool size Ø x L (max.) | 110X300mm |
| Tool size Ø x L (max.) for tooling | 180X300mm |
| Tool weight max. | 15kg |
| Tool-change time tool/tool | 3,8S |
| Positioning accuracy X/Y/Z axis | ± 0,008 mm / 0,0003" |
| Repeatability X/Y/Z axis | ± 0,005 mm / 0,0002" |
| Motor rating main drive | 20.5KW |
| Main drive, continuous load | 18.5kw |
| Motor rating for X/Y/Zaxis drive | 4.4/4.4/5.5kw |
| Total power consumption | 45 kVA |
| Overall dimensions (length x width x height) | 4300x3400x3100 mm |
| Weight | 14000kg |
Standard Equipment:

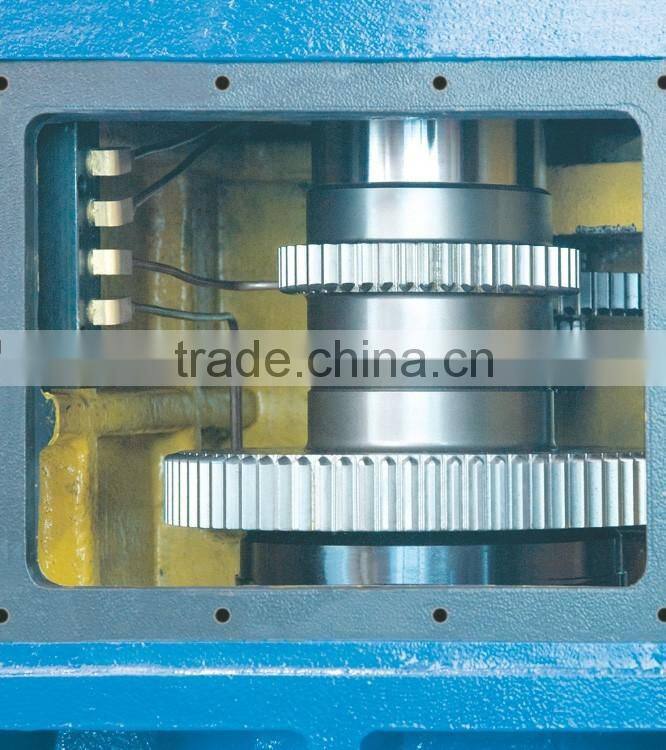

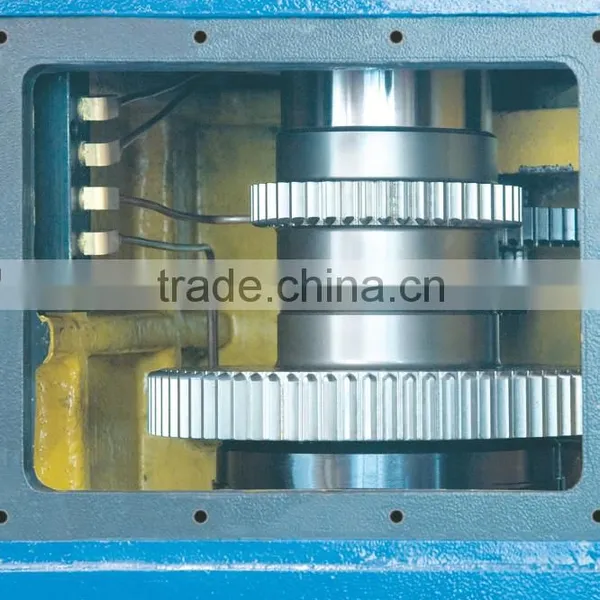

Siemens 828 D control, 24-station tool changer with dual-arm, spiral chip conveyor, electronic hand-wheel, servo drive for all axes, spindle with gear step 6000 rpm / BT 50, spindle oil cooler, pneumatic tool clamping, climatic elextric box, chip wash system, coolant system, air and coolant water spray wand, automatic central lubrication, working area lightening, signal lamp, setup elements, operating tools, operating manual and programming instructions
