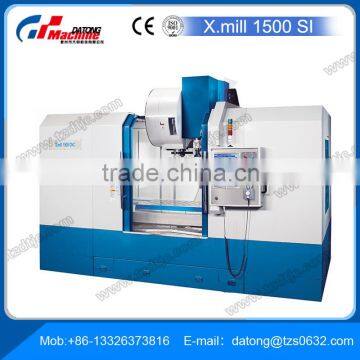

CNC Vertical Machining Center - X.mill 1500SI for sale
Feature:

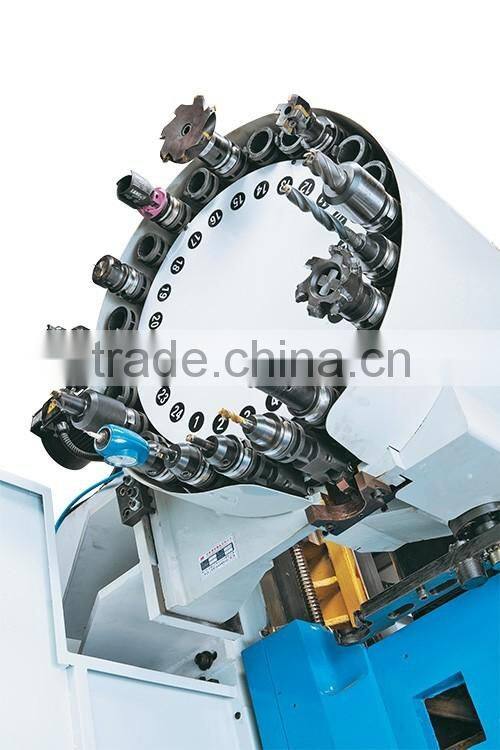

1.Tool magazine for 24 tools, with quick double-arm gripper = tool changing time: 3.8 s

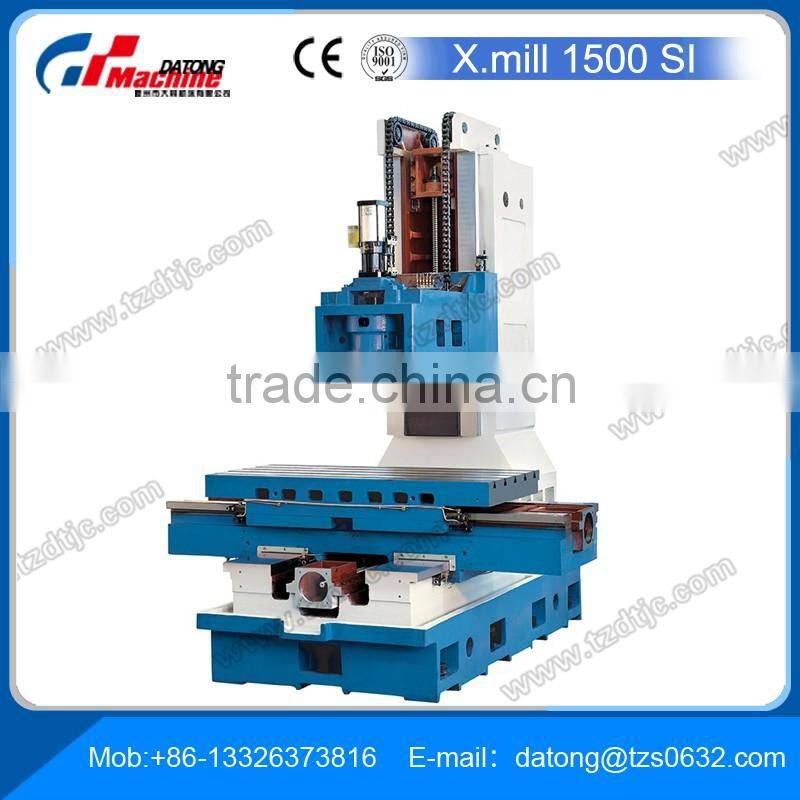

2.Machine bed and vertical guide system feature very wide, hardened and ground rectangular guides
3.Hydraulic weight balancing system ensures high dynamics, long life and maximum accuracy of the Z axis drive
4.4-guideway system in the machine bed for high table load capacity
5.Large precision preloaded ball screws, direct servo-motor drive to ensure maximum reliability and precision
6.Automatic central lubrication for low-maintenance operation
7.Pneumatic tool clamping for easy and quick tool changes
8.Reinforced enclosure for reduced vibrations
Specification:
| Model | X.mill 1500 SI |
| Table set up area | 1700X800 mm |
| Table load capacity | 1500kg |
| Number of T-slots/Wideth/Spacing | 5/22/135mm |
| Spindle nose-to-table surface distance | 170-870mm |
| Throat | 800mm |
| Travel X/Y/Z axis | 1500/800/700m |
| Spindle speed | 60-8000rpm |
| Spindle mount | BT 50 |
| Rapid feed X/Y/Z axis | 24000mm/min |
| Work Feed | 5-5000mm/min |
| Number of tool stations | 24 Pieces |
| Tool weight max. | 8kg |
| Tool-change time chip/chip | 10S |
| Tool-change time tool/tool | 3.8S |
| Positioning accuracy X/Y/Z axis | ± 0,01 mm |
| Repeatability X/Y/Z axis | ± 0,005 mm |
| Motor rating main drive | 20.5KW |
| Main drive, continuous load | 15kw |
| Overall dimensions (length x width x height) | 4270x3413x3067 mm |
| Weight | 14000kg |
Standard Equipment:

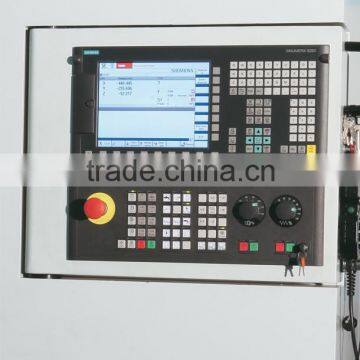

Siemens 828 D control, 24-station tool changer with dual-arm, chip conveyor chain type, electronic hand-wheel, servo drive for all axes, pneumatic tool clamping, air conditioner, work lamp, totally enclosed work space, RS-232 interface, USB interface, automatic central lubrication, operating tools, operator manual
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
