HORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mm

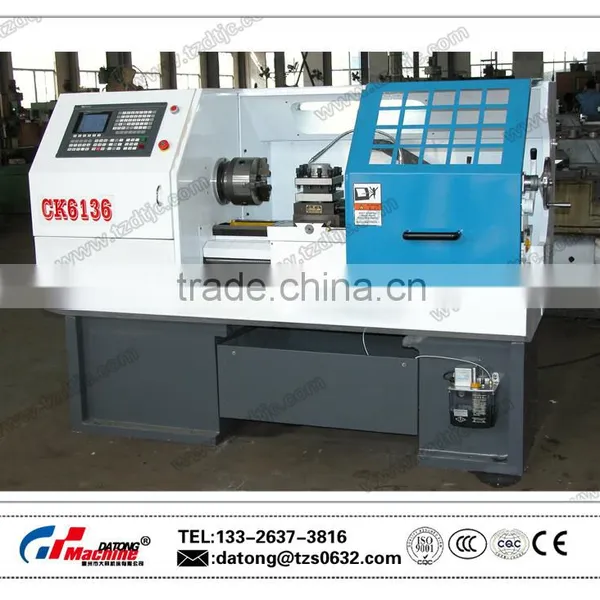

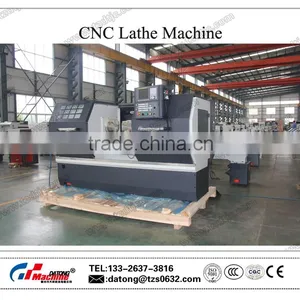

HORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mm photo-1
HORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mm photo-2

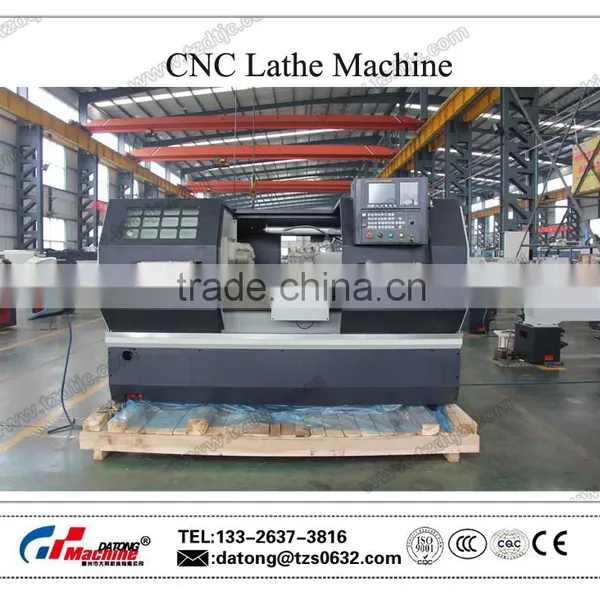

HORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mm photo-3

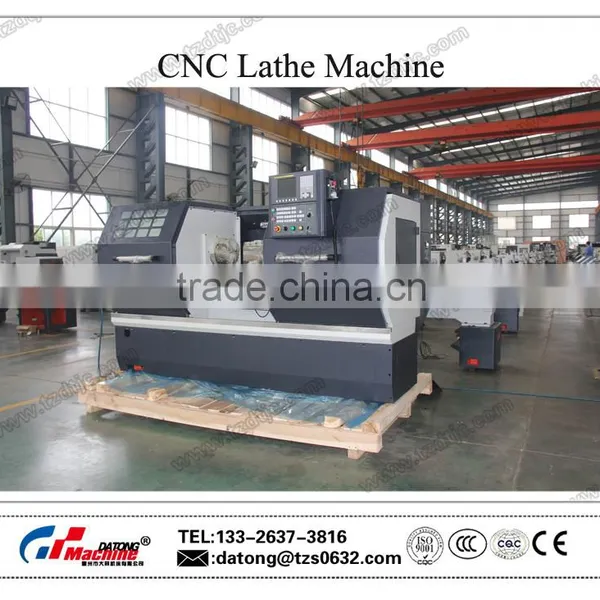

HORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mm photo-4
HORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mm photo-5
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 360mm
Place of Origin Shandong, China
Model Number CDK6136(1000mm)
Voltage 220V,380V,415V
Power(W) 5.5KW
Dimension(L*W*H) 2300*1350*1700mm
Weight 1400kg
Certification ISO9001 CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

 HORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mm

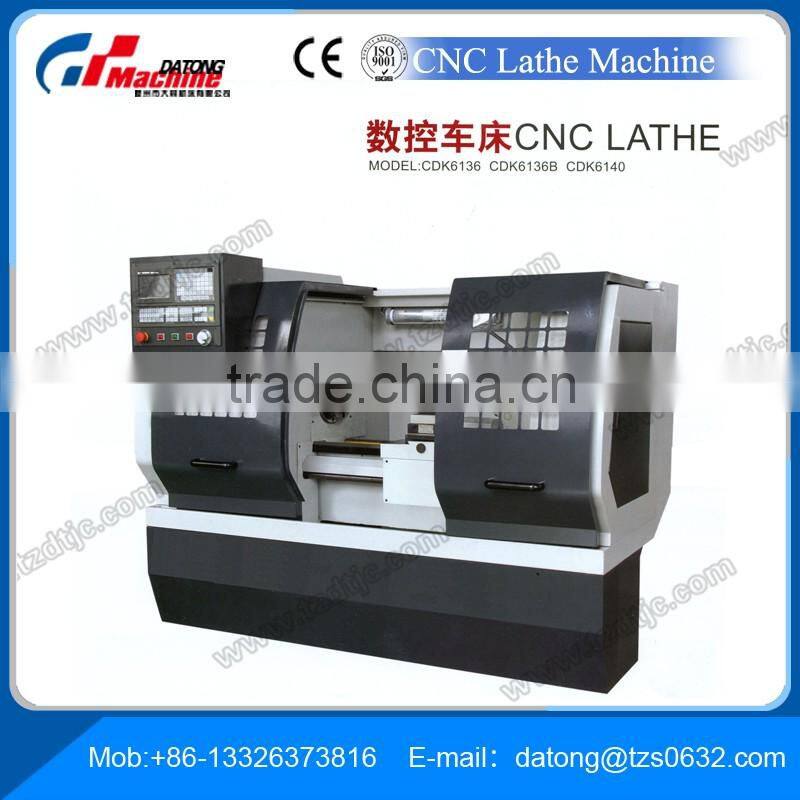

CDK6136 CNC LATHE



Specifications:



Specifications

CDK6136

CDK6136B



CDK6140



Max .Swing over bed

360mm

360mm

400mm

Spindle taper

MT6

Thru-hole of spindle

52mm

Spindle speeds (12steps)

30-1600rpm

30-3000rpm

30-1600rpm

Tailstock center sleeve travel

90mm

Tailstock center sleeve taper

MT4

Repeatability accuracy

0.01mm

X/Z rapid traverse

3/6m/min

Spindle motor

5.5kw

           Overall dimensions for 750

2100×1350×1700mm

Overall dimensions for 1000

2300×1350×1700mm

Net weight  for 750

1300kg

1400kg

1600kg

Net weight  for 1000

1400kg

1500kg

1700kg

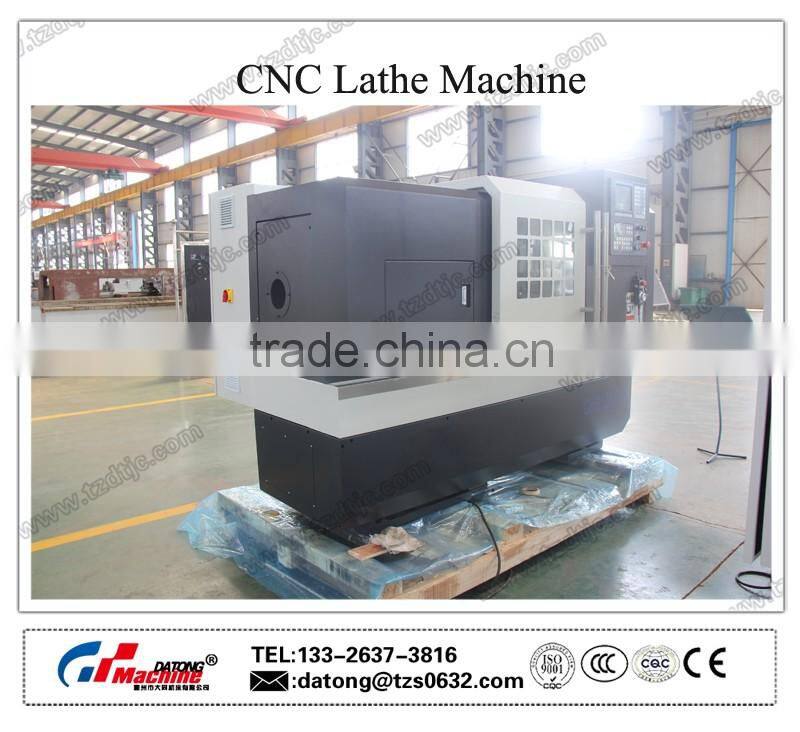

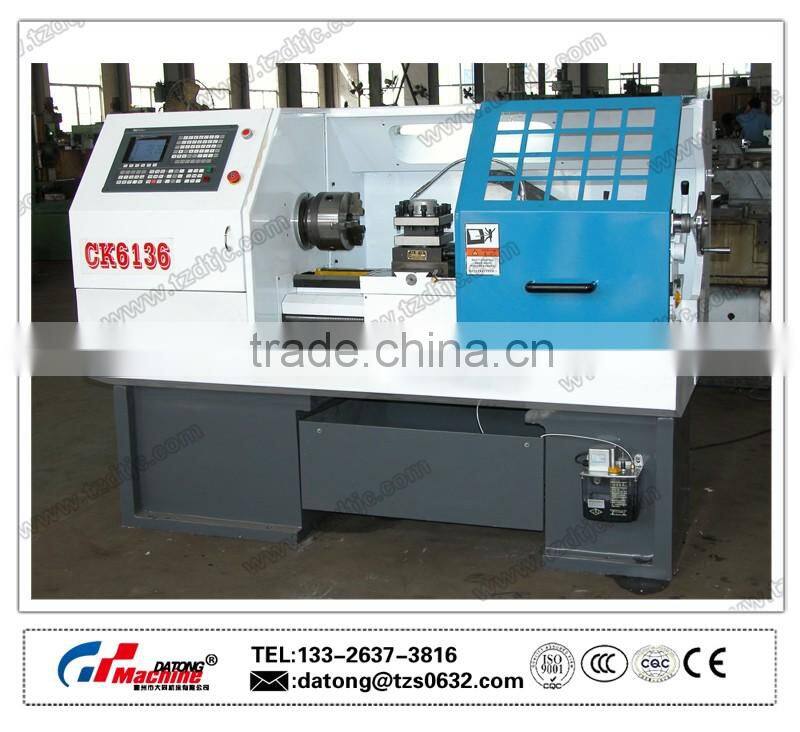

Detailed Images

 HORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mmHORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mmHORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mm

HORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mm

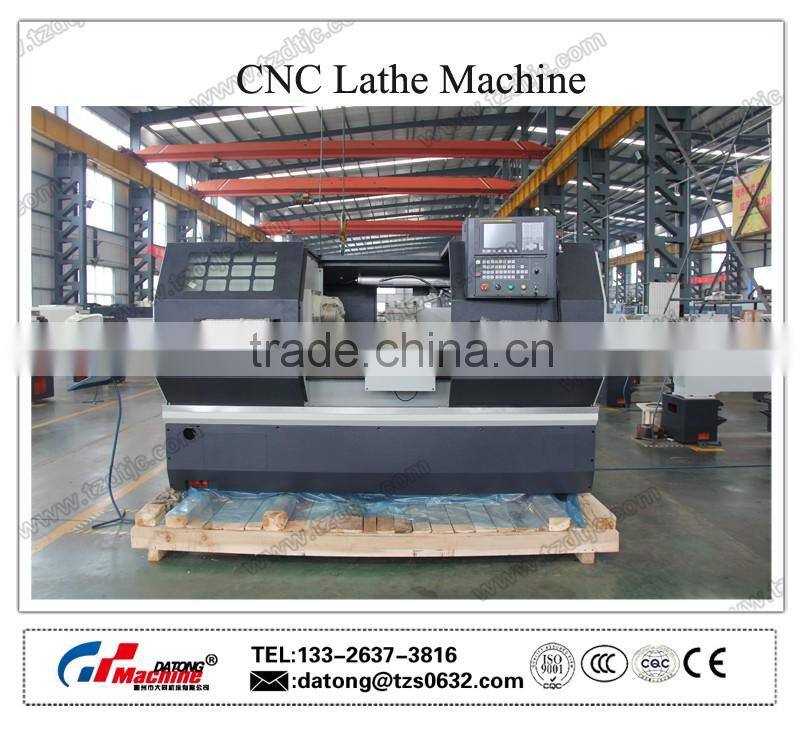

Packaging & Shipping

HORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mmHORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mm

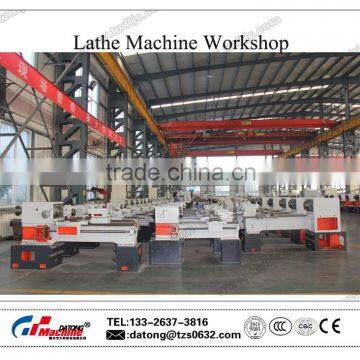

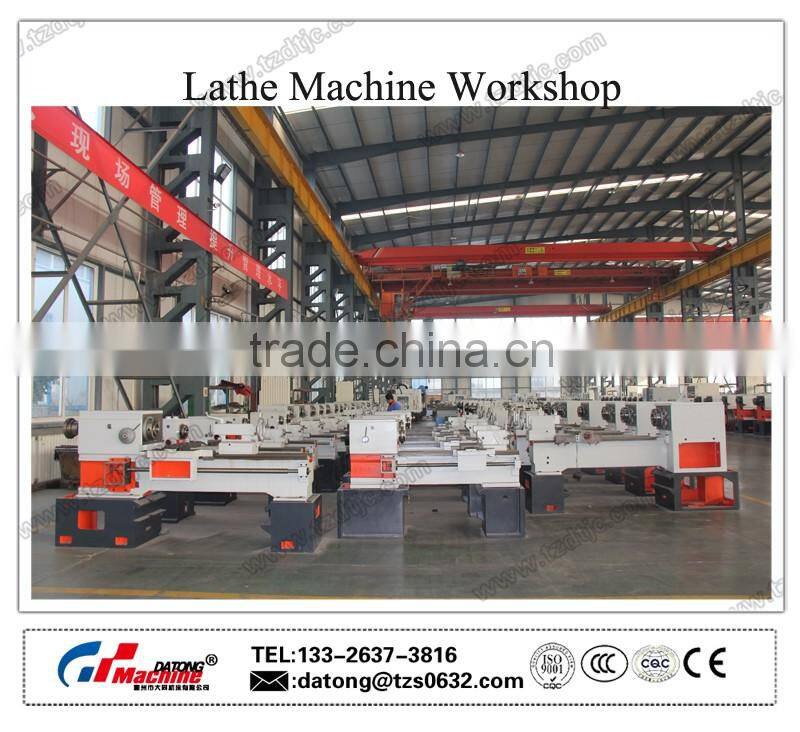

Company Information

HORIZONTAL CONVENTIONAL CNC TURNING LATHE MACHINE CDK6136 1000mm





The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.



Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have collegeducation which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.



"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.



The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
