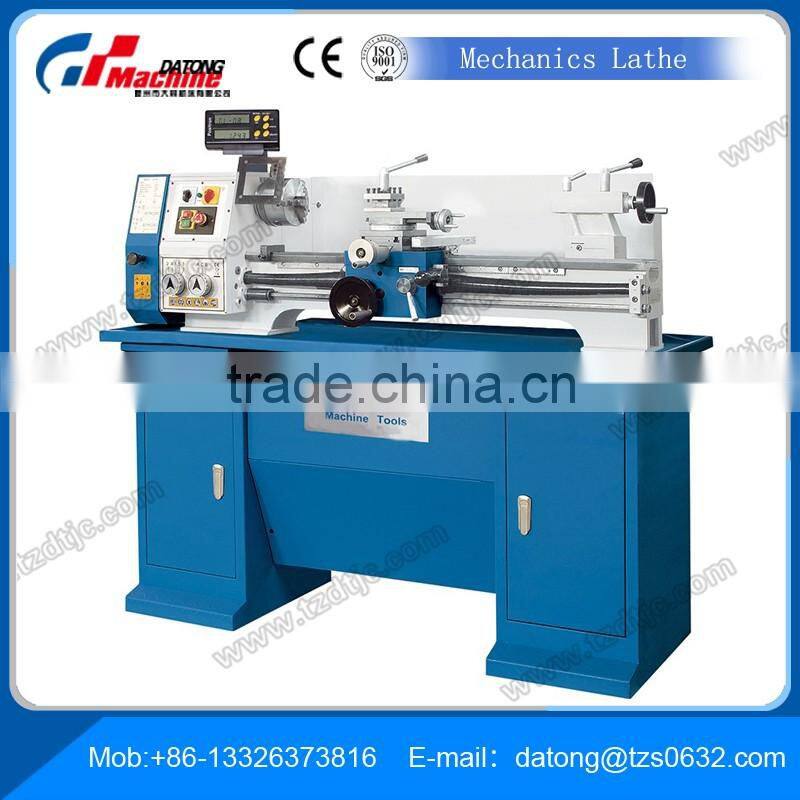

Help CenterLS 750 Mechanics Lathe (Precision Bench Lathe)
Related Products
-
Numturn 320 SI CNC Cycle LatheUS$ 1,000 - 10,000MOQ: 1 Set -
Export CA Series Horizontal Lathe Machine CA6150B*2000US$ 5,000 - 10,000MOQ: 1 Set
-
Export CA Series Horizontal Lathe Machine CA6150B*1000US$ 5,000 - 10,000MOQ: 1 Set
-
Export CA Series Horizontal Lathe Machine CA6250*750US$ 5,000 - 10,000MOQ: 1 Set
-
Export CA Series Horizontal Lathe Machine CA6250C*2000US$ 5,000 - 10,000MOQ: 1 Set
Details:
Rigid cast-iron machine bed with hardened and ground dual V-guides
- all guides are adjustable
- large headstock with adjustable tapered roller bearings and 25 mm capacity
- Quiet and robust belt drive operation
- Feed gears with oil-bath lubrication, featuring a wide selection of fine incremented feeds and frequently used thread leads
- feed shaft with overload clutch for automatic feed on X and Z
- leadscrew ensures precise thread turning
- incl. 2-axis position indicator, fully assembled
Technical Data:
|
Working area
Workpiece length (max.)
Turning diameter over bed
Turning diameter over support
Turning diameter without gap bridge
Travel Z1-axis
Workpiece weight (max.)
Gap bridge length
Bed width
Swing range of top slide
|
750 mm
280 mm
164 mm
240 mm
80 mm
15 kg
750 mm
155,5 mm
± 45 °
|
|---|---|
|
Travels
Travel X-axis
|
155 mm
|
|
Headstock
Speed range
Spindle bore
Spindle mount
|
125 - 2.000 rpm
25 mm
DIN 55027 / MK 4
|
|
Feed
Feed X-axis
Feed Z-axis
|
0,015 - 0,15 mm/R
0,03 - 0,3 mm/R
|
|
Tailstock
Tailstock taper
Tailstock quill stroke
|
MT 2
60 mm
|
|
Tapping
Tapping, module
Tapping, whitworth
|
0,25 - 2,5 mm
12 - 96 TPI
|
|
Drive capacity
Motor rating main drive
Supply voltage
|
0,735 kW
230 V
|
|
Measures and weights
Overall dimensions (length x width x height)
Weight
|
1.500x750x1.400 mm
230 kg
|
Standard Equipment:

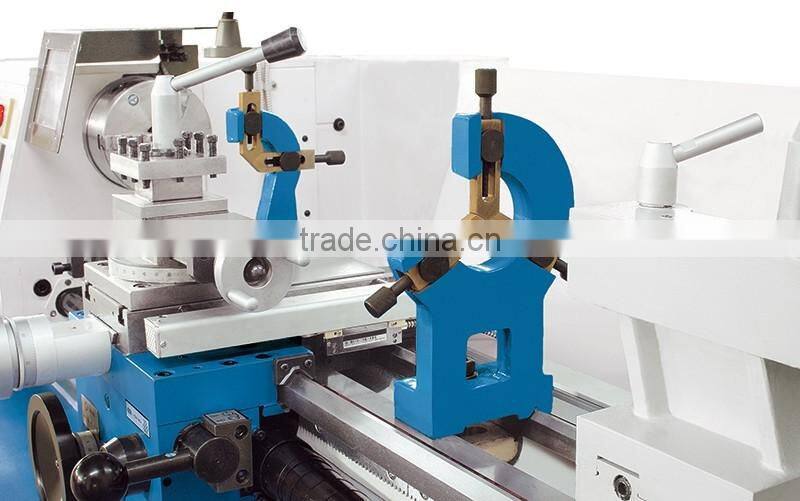

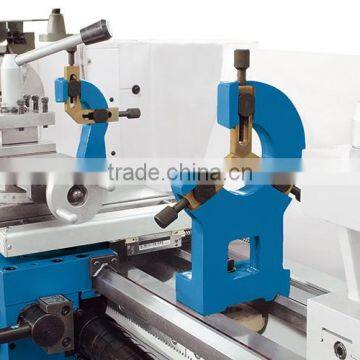

2-axis position indicator, base, 3-B-Futter Ø 130 mm, fallow and steady rest, face plate, operator manual
